ABS & VSC

41534ABRACKET, FRONT DIFFERENTIAL BREATHER

main41534-35050iKDJ150..LHD;GDJ15#,GRJ150¥370201708-202312

8202

8401

86652ABUZZER ASSY, SKID CONTROL

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-60A00iGDJ15#,GRJ150,KDJ150,TRJ150¥360201708-202312

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-60A10iGDJ15#,GRJ150,KDJ150,TRJ150¥330201708-202312

88266DCLAMP, SKID CONTROL SENSOR, NO.3

main88266-60790iGRJ150,KDJ150,TRJ150¥640201708-202312

main88266-60870iGDJ15#¥890201708-202312

89516WIRE, SKID CONTROL SENSOR

main89516-60280iGRJ150,KDJ150,TRJ150¥3,540201708-202312

RH

main89516-60290iGDJ15#,GRJ150,KDJ150,TRJ150¥3,540201708-202312

LH

main89516-60540iGDJ15#¥3,540201708-202312

RH

89516BWIRE, SKID CONTROL SENSOR

main89516-60300iGDJ15#,GRJ150,KDJ150,TRJ150¥6,300201708-202312

89542SENSOR, SPEED, FRONT RH

main89542-60050iGDJ15#,GRJ150,KDJ150,TRJ150¥15,000201708-202312

89543SENSOR, SPEED, FRONT LH

main89543-60050iGDJ15#,GRJ150,KDJ150,TRJ150¥15,000201708-202312

89545SENSOR, SPEED, REAR RH

main89542-60050iGDJ15#,GRJ150,KDJ150,TRJ150¥15,000201708-202312

89546SENSOR, SPEED, REAR LH

main89543-60050iGDJ15#,GRJ150,KDJ150,TRJ150¥15,000201708-202312

91551A0616

main91551-A0616¥60

91621J0612

main91621-J0612¥70

91641H0820

main91641-H0820¥90

91651B0814

main91651-B0814¥120

91673A0612

main91673-A0612¥60

9415010641

main94150-10641¥60

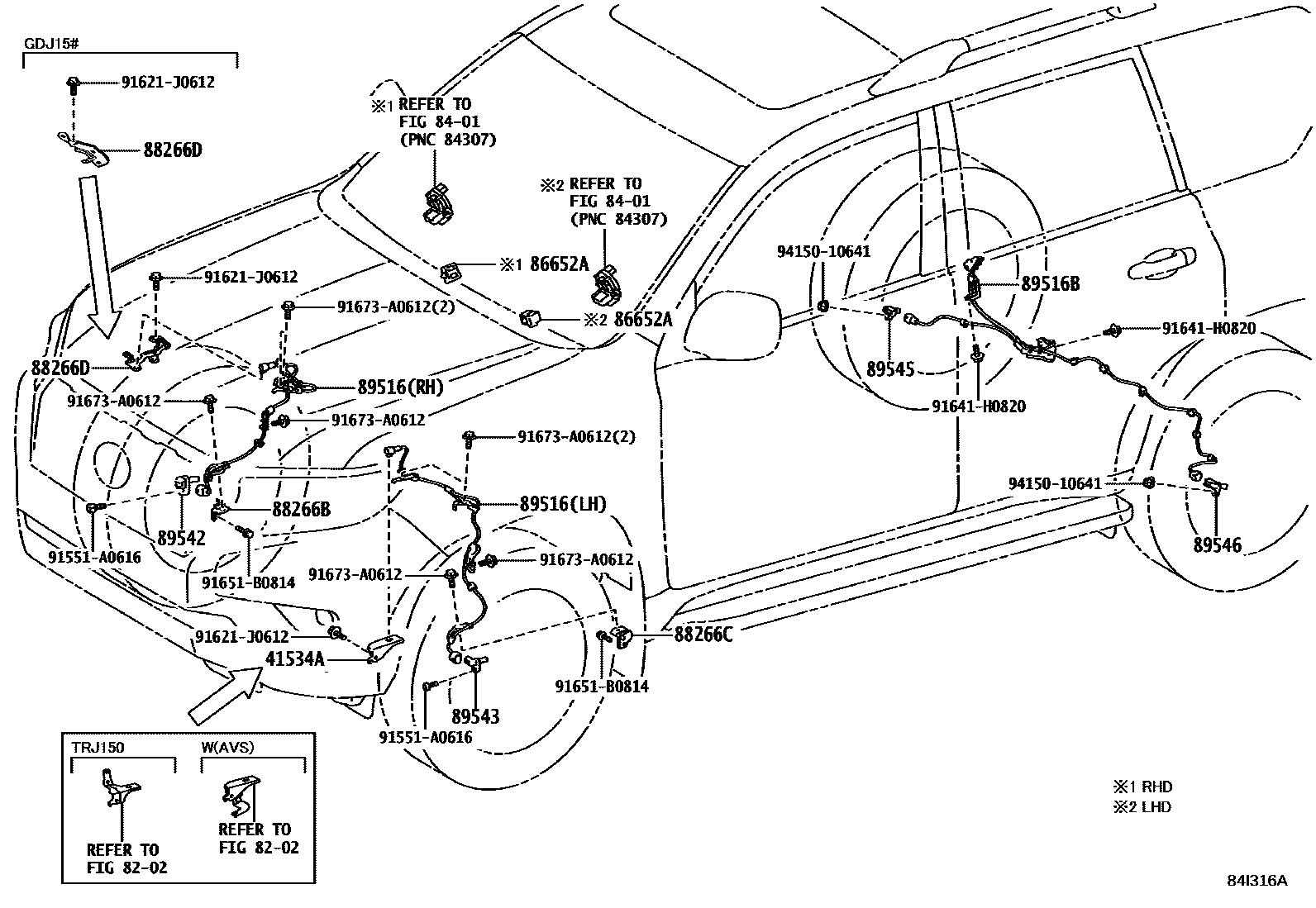

19 parts on this diagram · 1 diagram in section
