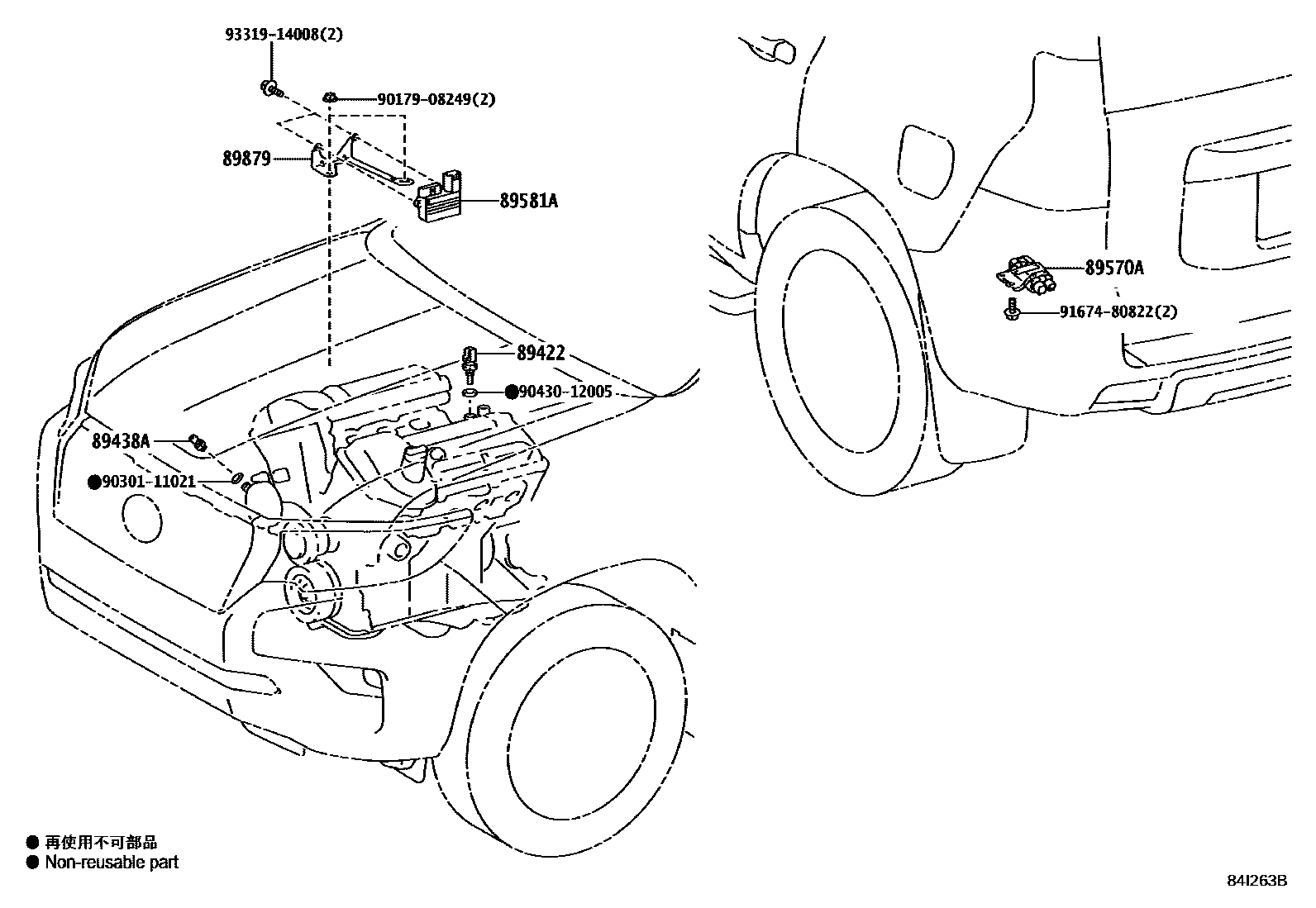

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1COWL 0004 1COWL

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGRJ150,TRJ150201708-202312

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-71010iTRJ150201708-202312

main89448-34020iGRJ150201708-202312

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60170iGRJ150201708-202312

89581ADRIVER, AIR INJECTION CONTROL

main89581-60010iGRJ150,TRJ150201708-202312

89879BRACKET, INJECTOR DRIVER

main89589-60051iTRJ150201708-202312

main89589-60060iGRJ150201708-202008

main89589-60080iGRJ150202008-202312

TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL)

9017908249

main90179-08249

9030111021

main90301-11021

9043012005

main90430-12005

9167480822

main91674-80822

9331914008

main93319-14008

10 parts on this diagram · 4 diagrams in section
