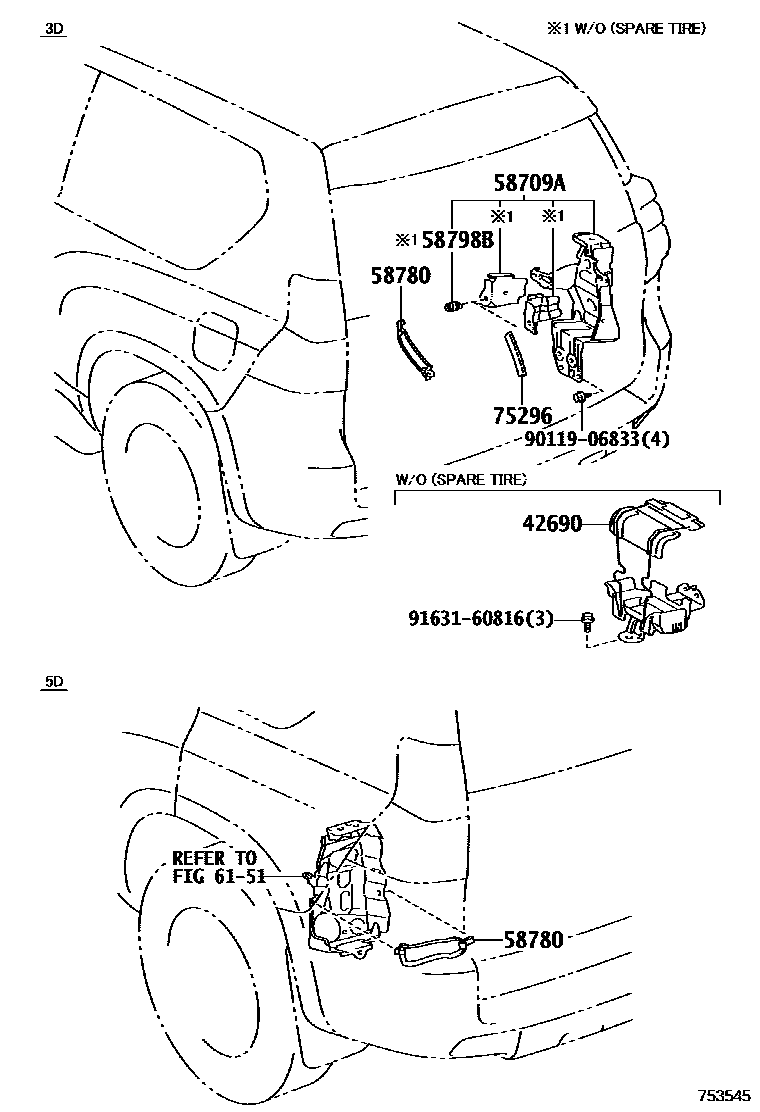

TOOL BOX & LICENSE PLATE BRACKET

0001 1TOOL BOX 0002 1LICENSE PLATE BRACKET

42690BRACKET ASSY, TIRE REPAIR KIT

main42690-60010

58709ACARRIER SUB-ASSY, JACK

main58709-60090iGDJ155201708

58780BAND ASSY, TOOL BOX

main58780-42020iGDJ155201708

main58780-95J01iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

58798BCUSHION, JACK CARRIER

6151

75296PROTECTOR, JACK HANDLE

main64778-60070iGDJ155201708

9011906833

main90119-06833

9163160816

main91631-60816

8 parts on this diagram · 2 diagrams in section
