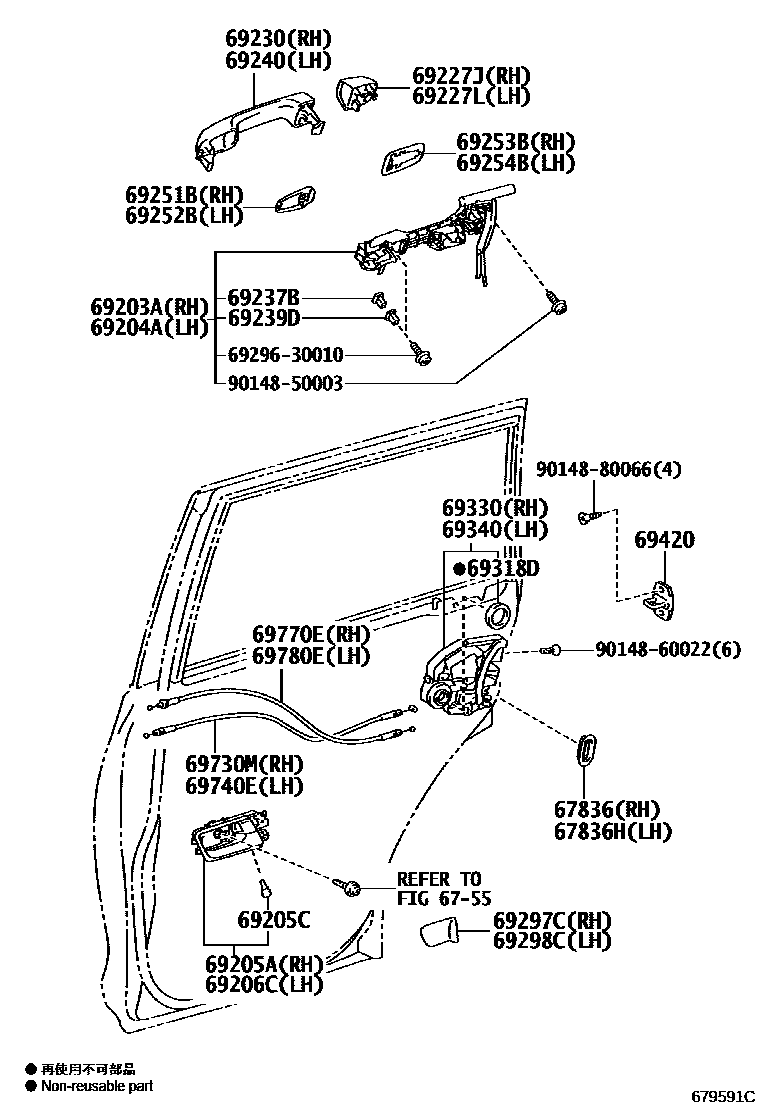

REAR DOOR LOCK & HANDLE
6755
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
VX PACKAGE,SUPER WHITE 2,040
TX-L PACKAGE,SUPER WHITE 2,040
TX-L PACKAGE,WHITE PEARL CS.,070
WHITE PEARL CS.,070
VX PACKAGE,WHITE PEARL CS.,070
SILVER ME.,1F7
VX PACKAGE,SILVER ME.,1F7
TX-L PACKAGE,SILVER ME.,1F7
GRAY ME.,1G3
VX PACKAGE,GRAY ME.,1G3
TX-L PACKAGE,GRAY ME.,1G3
VX PACKAGE,BLACK,202
BLACK,202
TX-L PACKAGE,BLACK,202
BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,221 ,3R3 ,4V8 ,4X4
ATTITUDE BLACK MC.,218
VX PACKAGE,ATTITUDE BLACK MC.,218
TX-L PACKAGE,ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
VX PACKAGE,BLACKISH AGEHA GF.,221
TX-L PACKAGE,BLACKISH AGEHA GF.,221
RED M.M.,3R3
VX PACKAGE,RED M.M.,3R3
TX-L PACKAGE,RED M.M.,3R3
VINTAGE BROWN PEARL CS.,4X4
VX PACKAGE,VINTAGE BROWN PEARL CS.,4X4
TX-L PACKAGE,VINTAGE BROWN PEARL CS.,4X4
AVANT-GARDE BRONZE ME.,4V8
VX PACKAGE,AVANT-GARDE BRONZE ME.,4V8
TX-L PACKAGE,AVANT-GARDE BRONZE ME.,4V8
BLACK MATERIAL
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
VX PACKAGE,SUPER WHITE 2,040
TX-L PACKAGE,SUPER WHITE 2,040
VX PACKAGE,WHITE PEARL CS.,070
WHITE PEARL CS.,070
TX-L PACKAGE,WHITE PEARL CS.,070
SILVER ME.,1F7
VX PACKAGE,SILVER ME.,1F7
TX-L PACKAGE,SILVER ME.,1F7
GRAY ME.,1G3
VX PACKAGE,GRAY ME.,1G3
TX-L PACKAGE,GRAY ME.,1G3
BLACK,202
VX PACKAGE,BLACK,202
TX-L PACKAGE,BLACK,202
BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,221 ,3R3 ,4V8 ,4X4
ATTITUDE BLACK MC.,218
VX PACKAGE,ATTITUDE BLACK MC.,218
TX-L PACKAGE,ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
VX PACKAGE,BLACKISH AGEHA GF.,221
TX-L PACKAGE,BLACKISH AGEHA GF.,221
RED M.M.,3R3
VX PACKAGE,RED M.M.,3R3
TX-L PACKAGE,RED M.M.,3R3
VINTAGE BROWN PEARL CS.,4X4
VX PACKAGE,VINTAGE BROWN PEARL CS.,4X4
TX-L PACKAGE,VINTAGE BROWN PEARL CS.,4X4
TX-L PACKAGE,AVANT-GARDE BRONZE ME.,4V8
AVANT-GARDE BRONZE ME.,4V8
VX PACKAGE,AVANT-GARDE BRONZE ME.,4V8
BLACK MATERIAL
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
VX PACKAGE,SUPER WHITE 2,040
SUPER WHITE 2,040
TX-L PACKAGE,SUPER WHITE 2,040
VX PACKAGE,WHITE PEARL CS.,070
TX-L PACKAGE,WHITE PEARL CS.,070
WHITE PEARL CS.,070
SILVER ME.,1F7
VX PACKAGE,SILVER ME.,1F7
TX-L PACKAGE,SILVER ME.,1F7
GRAY ME.,1G3
VX PACKAGE,GRAY ME.,1G3
TX-L PACKAGE,GRAY ME.,1G3
BLACK,202
VX PACKAGE,BLACK,202
TX-L PACKAGE,BLACK,202
BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,221 ,3R3 ,4V8 ,4X4
ATTITUDE BLACK MC.,218
VX PACKAGE,ATTITUDE BLACK MC.,218
TX-L PACKAGE,ATTITUDE BLACK MC.,218
TX-L PACKAGE,BLACKISH AGEHA GF.,221
BLACKISH AGEHA GF.,221
VX PACKAGE,BLACKISH AGEHA GF.,221
RED M.M.,3R3
VX PACKAGE,RED M.M.,3R3
TX-L PACKAGE,RED M.M.,3R3
VINTAGE BROWN PEARL CS.,4X4
VX PACKAGE,VINTAGE BROWN PEARL CS.,4X4
TX-L PACKAGE,VINTAGE BROWN PEARL CS.,4X4
AVANT-GARDE BRONZE ME.,4V8
VX PACKAGE,AVANT-GARDE BRONZE ME.,4V8
TX-L PACKAGE,AVANT-GARDE BRONZE ME.,4V8
NO PAINT REQ.
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
VX PACKAGE,SUPER WHITE 2,040
TX-L PACKAGE,SUPER WHITE 2,040
WHITE PEARL CS.,070
VX PACKAGE,WHITE PEARL CS.,070
TX-L PACKAGE,WHITE PEARL CS.,070
SILVER ME.,1F7
VX PACKAGE,SILVER ME.,1F7
TX-L PACKAGE,SILVER ME.,1F7
GRAY ME.,1G3
VX PACKAGE,GRAY ME.,1G3
TX-L PACKAGE,GRAY ME.,1G3
BLACK,202
VX PACKAGE,BLACK,202
TX-L PACKAGE,BLACK,202
BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,221 ,3R3 ,4V8 ,4X4
ATTITUDE BLACK MC.,218
VX PACKAGE,ATTITUDE BLACK MC.,218
TX-L PACKAGE,ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
VX PACKAGE,BLACKISH AGEHA GF.,221
TX-L PACKAGE,BLACKISH AGEHA GF.,221
RED M.M.,3R3
VX PACKAGE,RED M.M.,3R3
TX-L PACKAGE,RED M.M.,3R3
VINTAGE BROWN PEARL CS.,4X4
VX PACKAGE,VINTAGE BROWN PEARL CS.,4X4
TX-L PACKAGE,VINTAGE BROWN PEARL CS.,4X4
AVANT-GARDE BRONZE ME.,4V8
VX PACKAGE,AVANT-GARDE BRONZE ME.,4V8
TX-L PACKAGE,AVANT-GARDE BRONZE ME.,4V8
NO PAINT REQ.
69251BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 RH
69252BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 LH
69253BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 RH
69254BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH
69297CBEZEL, DOOR INSIDE HANDLE, NO.2 RH
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
69298CBEZEL, DOOR INSIDE HANDLE, NO.2 LH
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
32 parts on this diagram · 1 diagram in section
