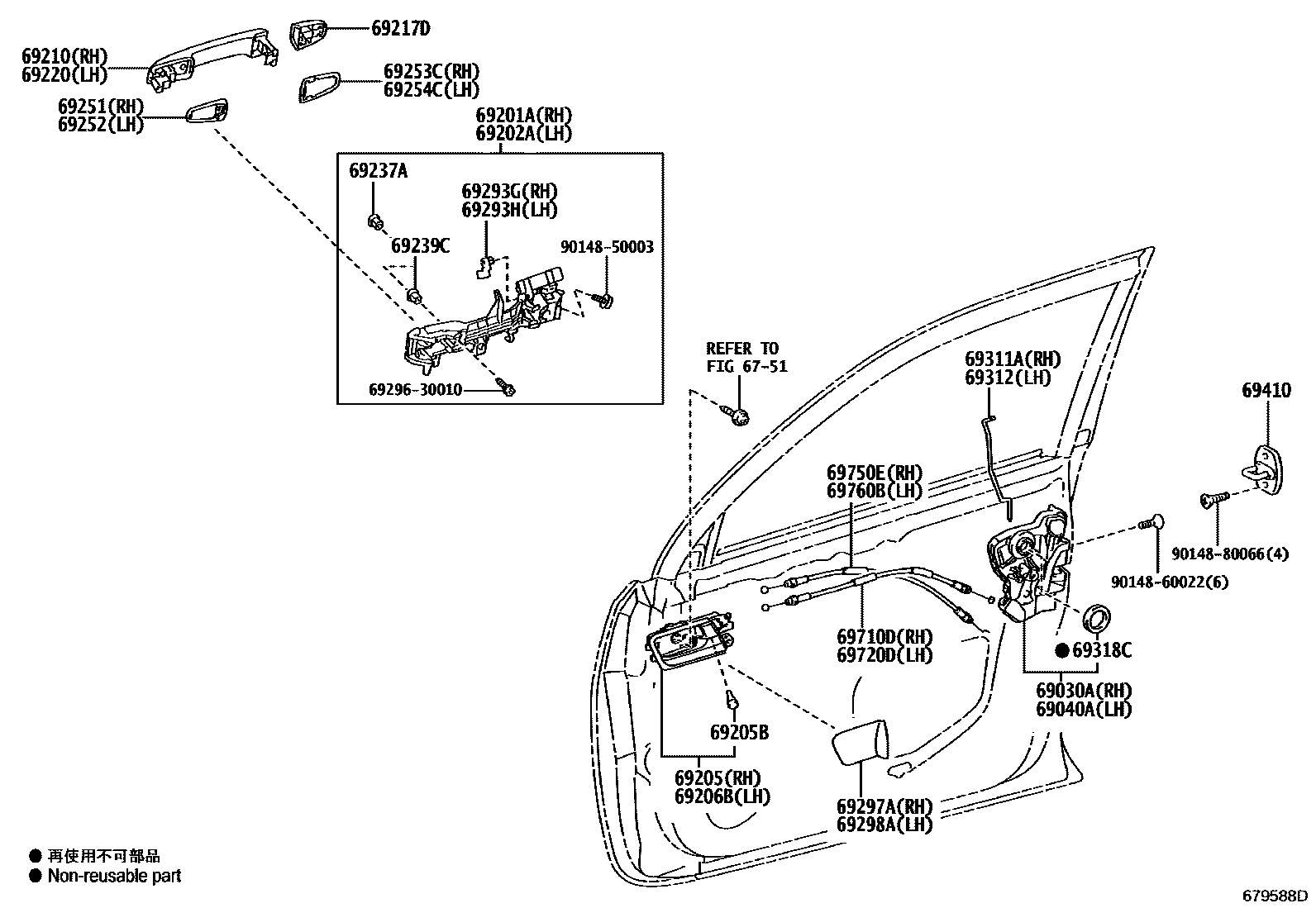

FRONT DOOR LOCK & HANDLE
6751
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
sub69201-60101
ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL
sub69201-60111
ANTI-THEFT SYSTEM-*IM & ALARM(SIREN, *IS, *GBS, TILT)
ANTI-THEFT SYSTEM-IMMOBILIZER
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,221 ,3R3 ,4V8 ,4X4
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
VINTAGE BROWN PEARL CS.,4X4
NO PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
SUPER WHITE 2,040,DRIVER SIDE
VX PACKAGE,SUPER WHITE 2,040,DRIVER SIDE
TX-L PACKAGE,SUPER WHITE 2,040,DRIVER SIDE
WHITE PEARL CS.,070,DRIVER SIDE
VX PACKAGE,WHITE PEARL CS.,070,DRIVER SIDE
TX-L PACKAGE,WHITE PEARL CS.,070,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
VX PACKAGE,SILVER ME.,1F7,DRIVER SIDE
TX-L PACKAGE,SILVER ME.,1F7,DRIVER SIDE
GRAY ME.,1G3,DRIVER SIDE
VX PACKAGE,GRAY ME.,1G3,DRIVER SIDE
TX-L PACKAGE,GRAY ME.,1G3,DRIVER SIDE
BLACK,202,DRIVER SIDE
VX PACKAGE,BLACK,202,DRIVER SIDE
TX-L PACKAGE,BLACK,202,DRIVER SIDE
BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,221 ,3R3 ,4V8 ,4X4,DRIVER SIDE
ATTITUDE BLACK MC.,218,DRIVER SIDE
VX PACKAGE,ATTITUDE BLACK MC.,218,DRIVER SIDE
TX-L PACKAGE,ATTITUDE BLACK MC.,218,DRIVER SIDE
BLACKISH AGEHA GF.,221,DRIVER SIDE
VX PACKAGE,BLACKISH AGEHA GF.,221,DRIVER SIDE
TX-L PACKAGE,BLACKISH AGEHA GF.,221,DRIVER SIDE
RED M.M.,3R3,DRIVER SIDE
VX PACKAGE,RED M.M.,3R3,DRIVER SIDE
TX-L PACKAGE,RED M.M.,3R3,DRIVER SIDE
VINTAGE BROWN PEARL CS.,4X4,DRIVER SIDE
VX PACKAGE,VINTAGE BROWN PEARL CS.,4X4,DRIVER SIDE
TX-L PACKAGE,VINTAGE BROWN PEARL CS.,4X4,DRIVER SIDE
AVANT-GARDE BRONZE ME.,4V8,DRIVER SIDE
VX PACKAGE,AVANT-GARDE BRONZE ME.,4V8,DRIVER SIDE
TX-L PACKAGE,AVANT-GARDE BRONZE ME.,4V8,DRIVER SIDE
BLACK MATERIAL,DRIVER SIDE
SUPER WHITE 2,040,PASSENGER SIDE
VX PACKAGE,SUPER WHITE 2,040,PASSENGER SIDE
TX-L PACKAGE,SUPER WHITE 2,040,PASSENGER SIDE
WHITE PEARL CS.,070,PASSENGER SIDE
VX PACKAGE,WHITE PEARL CS.,070,PASSENGER SIDE
TX-L PACKAGE,WHITE PEARL CS.,070,PASSENGER SIDE
SILVER ME.,1F7,PASSENGER SIDE
VX PACKAGE,SILVER ME.,1F7,PASSENGER SIDE
TX-L PACKAGE,SILVER ME.,1F7,PASSENGER SIDE
GRAY ME.,1G3,PASSENGER SIDE
VX PACKAGE,GRAY ME.,1G3,PASSENGER SIDE
TX-L PACKAGE,GRAY ME.,1G3,PASSENGER SIDE
BLACK,202,PASSENGER SIDE
VX PACKAGE,BLACK,202,PASSENGER SIDE
TX-L PACKAGE,BLACK,202,PASSENGER SIDE
BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,221 ,3R3 ,4V8 ,4X4,PASSENGER SIDE
ATTITUDE BLACK MC.,218,PASSENGER SIDE
VX PACKAGE,ATTITUDE BLACK MC.,218,PASSENGER SIDE
TX-L PACKAGE,ATTITUDE BLACK MC.,218,PASSENGER SIDE
BLACKISH AGEHA GF.,221,PASSENGER SIDE
VX PACKAGE,BLACKISH AGEHA GF.,221,PASSENGER SIDE
TX-L PACKAGE,BLACKISH AGEHA GF.,221,PASSENGER SIDE
RED M.M.,3R3,PASSENGER SIDE
VX PACKAGE,RED M.M.,3R3,PASSENGER SIDE
TX-L PACKAGE,RED M.M.,3R3,PASSENGER SIDE
VINTAGE BROWN PEARL CS.,4X4,PASSENGER SIDE
VX PACKAGE,VINTAGE BROWN PEARL CS.,4X4,PASSENGER SIDE
TX-L PACKAGE,VINTAGE BROWN PEARL CS.,4X4,PASSENGER SIDE
AVANT-GARDE BRONZE ME.,4V8,PASSENGER SIDE
VX PACKAGE,AVANT-GARDE BRONZE ME.,4V8,PASSENGER SIDE
TX-L PACKAGE,AVANT-GARDE BRONZE ME.,4V8,PASSENGER SIDE
BLACK MATERIAL,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,221 ,3R3 ,4V8 ,4X4
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
VINTAGE BROWN PEARL CS.,4X4
NO PAINT REQ.
69237ANUT, FRONT DOOR HANDLE
RH
ANTI-THEFT SYSTEM-*IM & ALARM(SIREN, *IS, *GBS, TILT)
sub69237-0E010
sub69237-0E010
ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL,LH
sub69237-0E010
ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL,RH
sub69237-0E010
69239CBUSH, FRONT DOOR HANDLE
RH
ANTI-THEFT SYSTEM-*IM & ALARM(SIREN, *IS, *GBS, TILT)
ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL,LH
LH
RH
ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL,RH
ANTI-THEFT SYSTEM-IMMOBILIZER
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
BLACK,TRIM2#
ORCHID BROWN,TRIM4#
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
33 parts on this diagram · 1 diagram in section
