SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH 0004 1INNER PANEL,RH 0005 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-48020iGDJ150,GRJ150,TRJ150201708-202312

53822BBRACKET, FRONT FENDER, REAR LH

main53821-48020iGDJ150,GRJ150,TRJ150201708-202312

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-60260iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

main61131-60320iGDJ155201708

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-60230iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

main61132-60270iGDJ155201708

61211RAIL, ROOF SIDE, OUTER RH

main61211-60080iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

main61211-60090iGDJ155201708

61212RAIL, ROOF SIDE, OUTER LH

main61212-60080iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

main61212-60090iGDJ155201708

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60190iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

61312BPILLAR, CENTER BODY, OUTER LH

main61312-60250iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

61611PANEL, QUARTER, RH

main60161-60B70iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

main60161-60B80iGDJ155201708

61612PANEL, QUARTER, LH

main60162-60B30iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

main60162-60B40iGDJ155201708

65565PATCH, SIDE PANEL REAR END, RH

main65565-60010

main65565-60030

65566PATCH, SIDE PANEL REAR END, LH

main65566-60010

main65566-60030

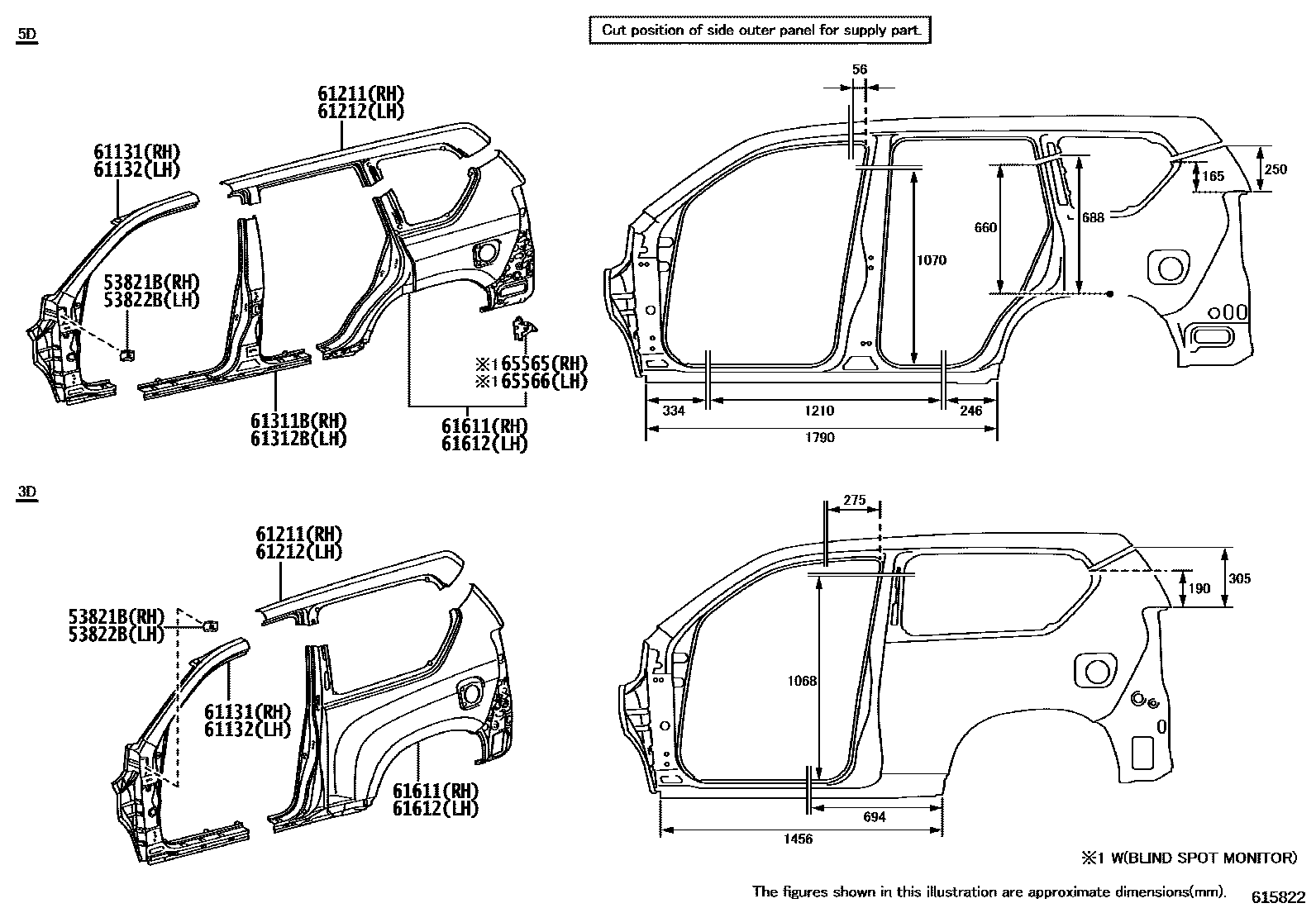

12 parts on this diagram · 5 diagrams in section
