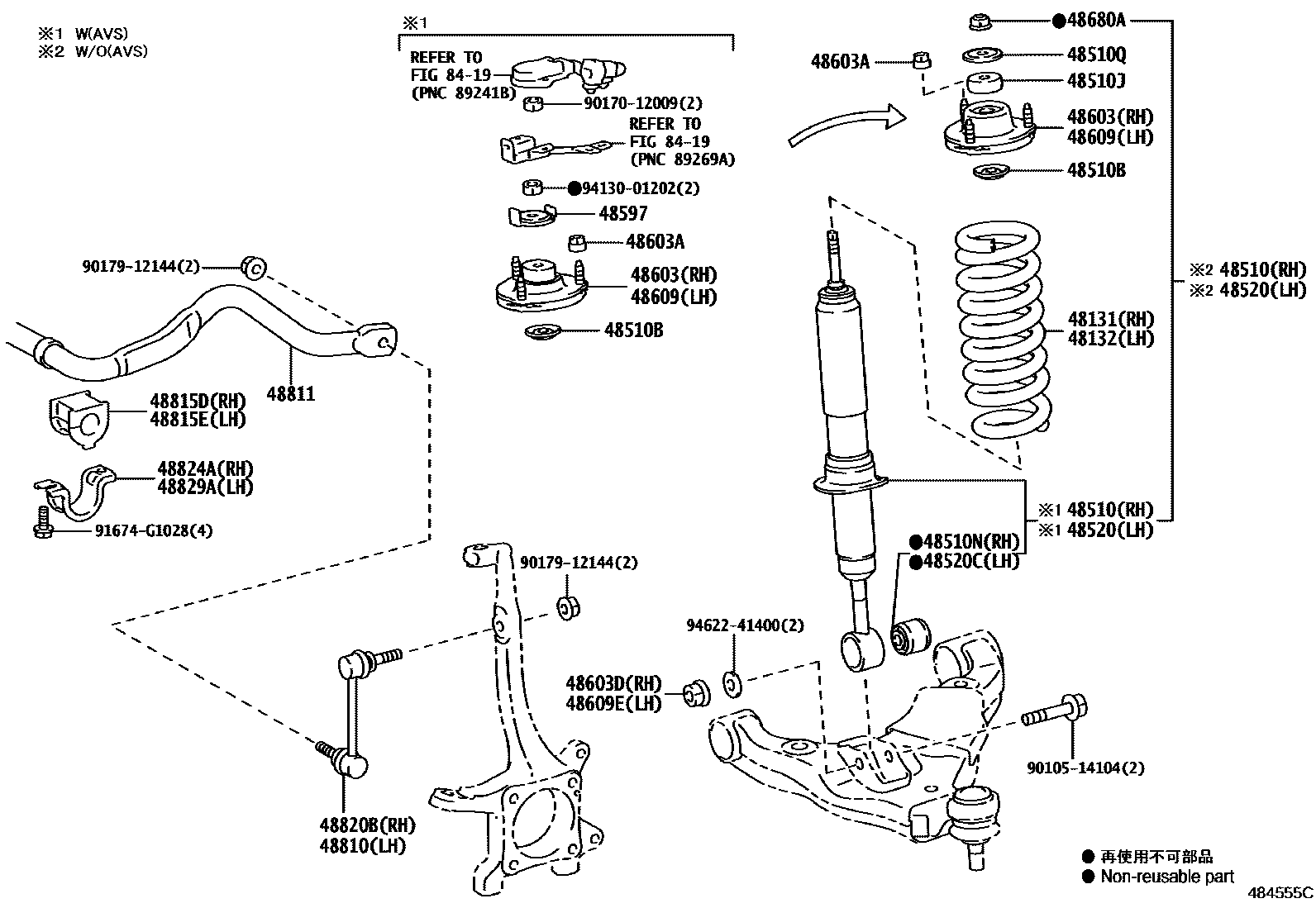

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
STABILIZER-WITH(KDSS)
48132SPRING, FRONT COIL, LH
STABILIZER-WITH(KDSS)
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-60250
MARK 48510-60440,FOR EGYPT SPEC
MARK 48510-60272
MARK 48510-60222
MARK 48510-60222,REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE
MARK 48510-60222,REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,ESTONIA, LATVIA, LITHUANIA SPEC
MARK 48510-60222,ESTONIA, LATVIA, LITHUANIA SPEC&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
MARK 48510-60222,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,WVTA CEUTA, AZORES, MACEDONIA SPEC
MARK 48510-60222,WVTA CEUTA, AZORES, MACEDONIA SPEC&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,TURKEY SPEC
MARK 48510-60222,ISRAEL SPEC
MARK 48510-60222,NORWAY SPEC
MARK 48510-60222,NORWAY SPEC&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,MOROCCO SPEC
MARK 48510-60222,ECUADOR SPEC
MARK 48510-60222,ECUADOR SPEC&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60202
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-60250
MARK 48510-60440,FOR EGYPT SPEC
MARK 48510-60272
MARK 48510-60222,REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222
MARK 48510-60222,REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE
MARK 48510-60222,ESTONIA, LATVIA, LITHUANIA SPEC
MARK 48510-60222,ESTONIA, LATVIA, LITHUANIA SPEC&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
MARK 48510-60222,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,WVTA CEUTA, AZORES, MACEDONIA SPEC
MARK 48510-60222,WVTA CEUTA, AZORES, MACEDONIA SPEC&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,TURKEY SPEC
MARK 48510-60222,ISRAEL SPEC
MARK 48510-60222,NORWAY SPEC
MARK 48510-60222,NORWAY SPEC&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,MOROCCO SPEC
MARK 48510-60222,ECUADOR SPEC
MARK 48510-60222,ECUADOR SPEC&VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60222,VX PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60202
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48597RETAINER, SHOCK ABSORBER CUSHION
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820LINK ASSY, FRONT STABILIZER
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
8419
9010514104
main90105-14104
9017012009
main90170-12009
9017912144
main90179-12144
91674G1028
main91674-G1028
9413001202
main94130-01202
9462241400
main94622-41400
31 parts on this diagram · 5 diagrams in section
