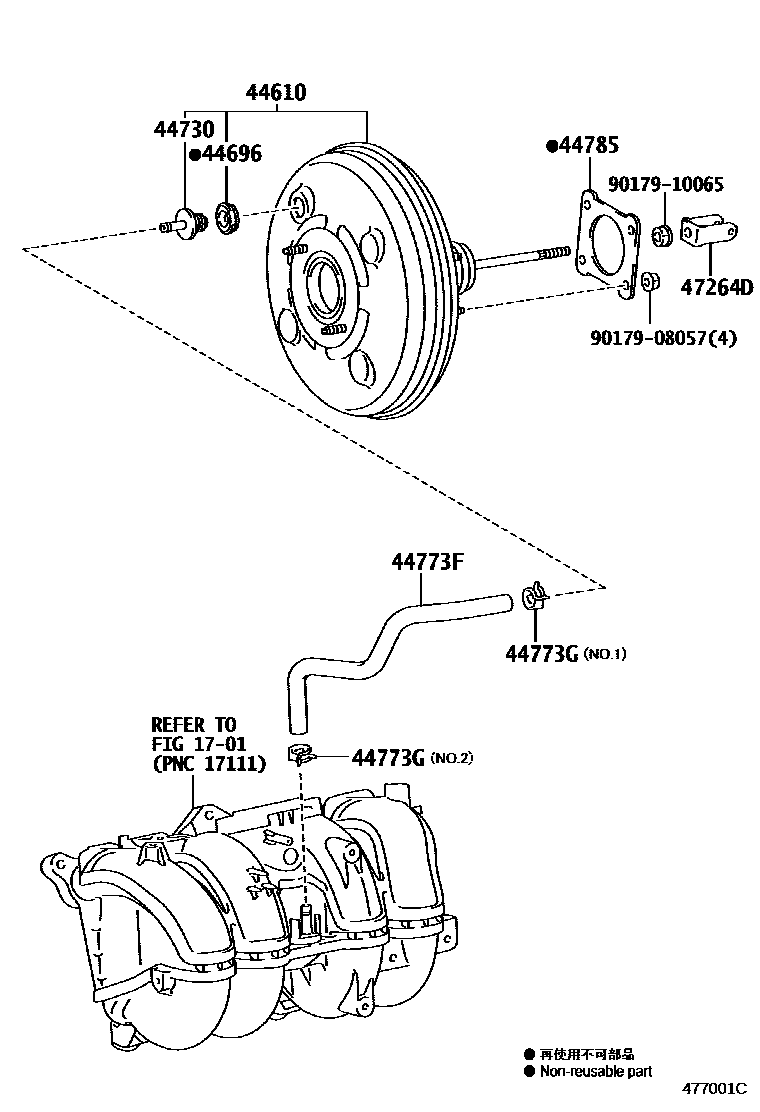

BRAKE BOOSTER & VACUUM TUBE
1701
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44773FHOSE, UNION TO CHECK VALVE
TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL)
44773GCLIP(FOR UNION TO CHECK VALVE HOSE)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
TOYOTA SAFETY SENSE-TSS 2 / LSS +2&WITH(VSC & *ATC & TRAILER SWAY CONTROL),NO.1
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
9017908057
main90179-08057
9017910065
main90179-10065
10 parts on this diagram · 1 diagram in section
