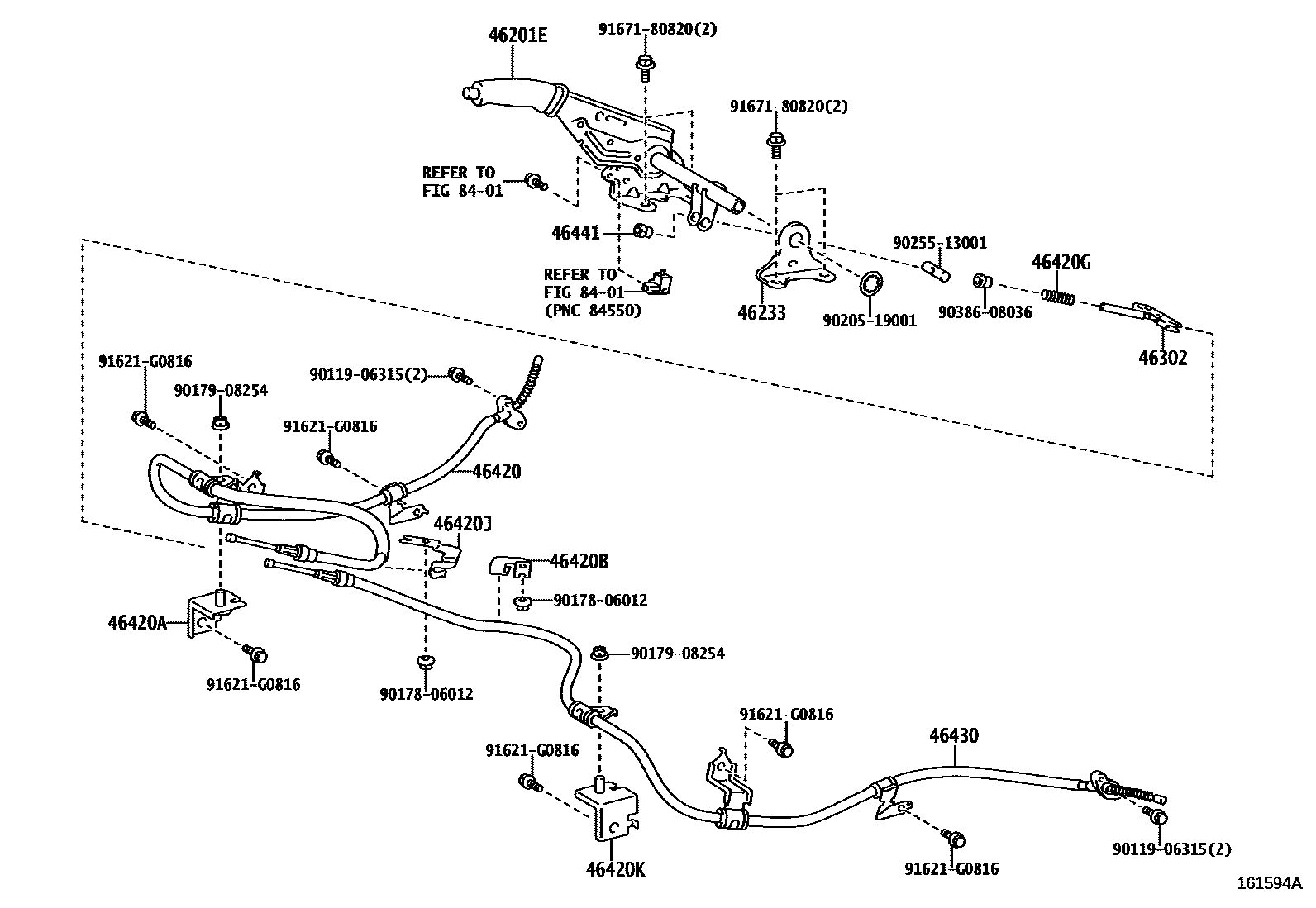

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-60130-C0iGDJ15#..RHD201708-202312

BLACK,TRIM2#

main46201-60130-E1iGDJ15#..RHD201708-202312

ORCHID BROWN,TRIM4#

main46201-60141-C0iGDJ15#..RHD..6FC201708-202312

*LES & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

main46201-60141-C0iGDJ15#..RHD201708-202312

*LES & WITH(AVS),BLACK,TRIM2#

main46201-60141-C0iGDJ15#..RHD201708-202312

*LES & WITHOUT(AVS),BLACK,TRIM2#

main46201-60141-C0iGDJ15#..RHD201708-202312

*FAS & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

main46201-60141-C0iGDJ15#..RHD201708-202312

*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2#

main46201-60141-C0iGDJ15#..RHD..6F201708-202106

*LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2#

main46201-60141-C0iGDJ15#..RHD..6F201708-202106

*LES(COLOR) & WITH(AVS),BLACK,TRIM2#

main46201-60141-C0iKDJ150..RHD201708-201906

BLACK,TRIM2#

main46201-60141-E1iGDJ15#..RHD..6FC201708-202312

*FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ15#..RHD201708-202312

*LES & WITH(AVS),ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ15#..RHD201708-202312

*LES & WITHOUT(AVS),ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ15#..RHD201708-202312

*FAS & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ15#..RHD201708-202312

*LES & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ15#..RHD..6F201708-202106

*LES(COLOR) & WITH(AVS),ORCHID BROWN,TRIM4#

main46201-60141-E1iGDJ15#..RHD..6F201708-202106

*LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4#

main46201-60141-E1iKDJ150..RHD201708-201906

ORCHID BROWN,TRIM4#

main46201-60150-C0iGDJ15#,KDJ150,TRJ150..LHD201708-202312

BLACK,TRIM2#

main46201-60150-E1iGDJ15#,KDJ150,TRJ150..LHD201708-202312

ORCHID BROWN,TRIM4#

main46201-60161-C0iGDJ15#,KDJ150,TRJ150..LHD..(5FC,6F,6FC)201708-202312

*LES & WITH(AVS),BLACK,TRIM2#

main46201-60161-C0iGDJ150,TRJ150..6FC..RUS201908-202008

70TH ANNIVERSARY LIMITED*(D),BLACK,TRIM2#

main46201-60161-C0iGDJ150,KDJ150..LHD..ATM201708-202106

*LES(COLOR) & WITH(AVS),BLACK,TRIM2#

main46201-60161-C0iGDJ150,KDJ150..LHD..ATM201708-202106

*LES(COLOR) & WITHOUT(AVS),BLACK,TRIM2#

main46201-60161-C0iGRJ150201708-202312

BLACK,TRIM2#

main46201-60161-C0iGRJ150201708-202312

*LES & WITHOUT(AVS),BLACK,TRIM2#

main46201-60161-C0iGRJ150201708-202312

*FAS & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

main46201-60161-C0iGRJ150201708-202312

*FAS & *IP(ORNAMENT = WOOD-GRAIN),BLACK,TRIM2#

main46201-60161-C0iGRJ150201708-202312

*LES & *IP(ORNAMENT = BLACK PAINT),BLACK,TRIM2#

main46201-60161-E1iGDJ15#,KDJ150,TRJ150..LHD201708-202312

*LES & WITH(AVS),ORCHID BROWN,TRIM4#

main46201-60161-E1iGDJ15#,KDJ150,TRJ150..LHD..(5FC,6F,6FC)201708-202312

*FAS & *IP(ORNAMENT = WOOD-GRAIN),ORCHID BROWN,TRIM4#

main46201-60161-E1iGDJ15#,KDJ150,TRJ150..LHD..(5FC,6F,6FC)201708-202312

*LES & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

main46201-60161-E1iGDJ15#,KDJ150,TRJ150..LHD201708-202312

ORCHID BROWN,TRIM4#

main46201-60161-E1iGDJ15#,KDJ150,TRJ150..LHD201708-202312

*LES & WITHOUT(AVS),ORCHID BROWN,TRIM4#

main46201-60161-E1iGDJ15#,KDJ150,TRJ150..LHD201708-202312

*FAS & *IP(ORNAMENT = BLACK PAINT),ORCHID BROWN,TRIM4#

main46201-60161-E1iGDJ150,TRJ150..6FC..RUS201908-202008

70TH ANNIVERSARY LIMITED*(D),ORCHID BROWN,TRIM4#

main46201-60161-E1iGDJ15#,KDJ150,TRJ150..LHD..(5FC,6F,6FC)201708-202106

*LES(COLOR) & WITHOUT(AVS),ORCHID BROWN,TRIM4#

main46201-60161-E1iGDJ15#,KDJ150,TRJ150..LHD..(5FC,6F,6FC)201708-202106

*LES(COLOR) & WITH(AVS),ORCHID BROWN,TRIM4#

46233SUPPORT, PARKING BRAKE CENTER

main46233-60040iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-60010iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-60101iGDJ155201708

main46420-60112iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-60040iGDJ155201708

main46421-60060iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-60010iGDJ155201708

main46431-60060iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-10239iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46421-60070iGDJ155201708

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46431-60040iGDJ155201708

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-60021iGDJ155201708

main46430-60042iGDJ150,GRJ150,KDJ150,TRJ150201708-202312

46441NUT, WIRE ADJUSTING, NO.1

main46441-60010iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

8401

9011906315

main90119-06315

9017806012

main90178-06012

9017908254

main90179-08254

9020519001

main90205-19001

9025513001

main90255-13001

9038608036

main90386-08036

91621G0816

main91621-G0816

9167180820

main91671-80820

20 parts on this diagram · 3 diagrams in section
