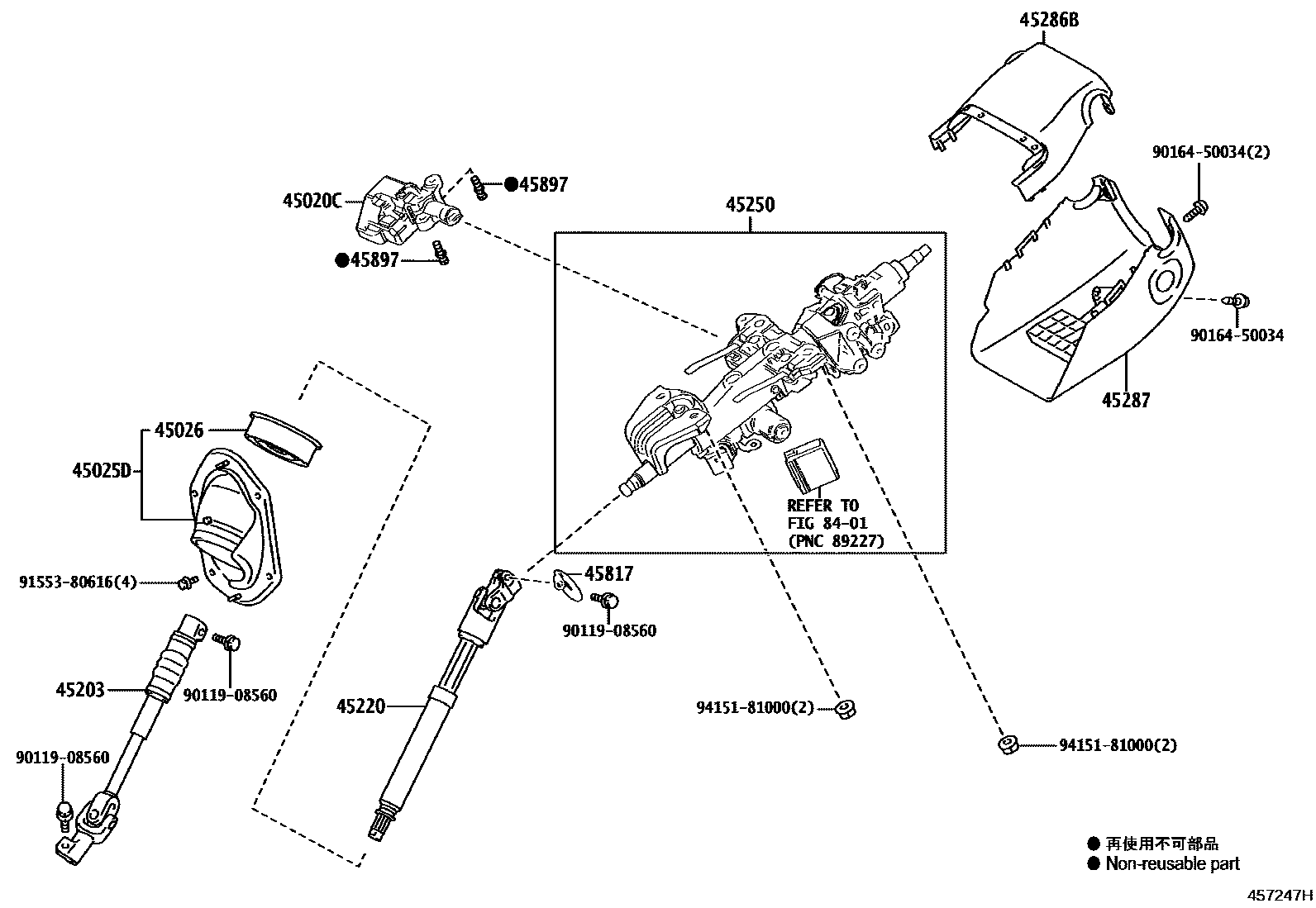

STEERING COLUMN & SHAFT

0001 1ELECTRIC TILT & TELESCOPIC 0002 1MANUAL TILT&TELESCOPIC(W(SMAR0003 1MANUAL TILT&TELESCOPIC(W/O(SM

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B20iGDJ150,GRJ150..RUS201708-202312

main45020-53040iKDJ150..RHD201708-201906

main45020-53050iGDJ15#,GRJ150..LHD..6FC..EUR201708-202312

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-60201iGDJ15#,KDJ150..RHD201708-202312

main45025-60211iGDJ15#,GRJ150,KDJ150,TRJ150..LHD201708-201810

sub45025-60212

main45025-60212iGDJ15#,GRJ150,KDJ150,TRJ150..LHD201811-202312

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-60041iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-60171iGDJ15#,KDJ150..RHD201708-202312

main45203-60181iGDJ15#,GRJ150,KDJ150,TRJ150..LHD201708-202312

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60270iGDJ15#,KDJ150..RHD201708-202312

main45220-60280iGDJ15#,GRJ150,KDJ150,TRJ150..LHD201708-202312

45250COLUMN ASSY, STEERING

main45250-60C90iTRJ150201708-202312

main45250-60D00iGDJ15#..RHD;GDJ150,GRJ150..RUS;GDJ15#,KDJ150..LHD..(5FC,6F)201708-202312

main45250-60D60iGDJ15#..RHD..6FC202208-202312

UKRAINE SPEC

main45250-60D60iGDJ15#..RHD..6FC202208-202312

MALTA SPEC

main45250-60D60iGDJ15#..RHD..6FC202208-202312

ARMENIA SPEC

main45250-60D60iGDJ15#..RHD..6FC202208-202312

KAZAKHSTAN SPEC

main45250-60D60iGDJ150,GRJ150..RUS202208-202312

IRELAND SPEC

main45810-60210iGDJ150,GRJ150..RUS202208-202312

MALTA SPEC&VX-L PACKAGE

main45810-60210iGDJ150,GRJ150..RUS202208-202312

IRELAND SPEC&VX PACKAGE

main45810-60210iGDJ150,GRJ150..RUS202208-202312

MALTA SPEC&VX PACKAGE

main45810-60210iGDJ150,GRJ150..RUS202208-202312

ARMENIA SPEC&VX PACKAGE

main45810-60210iGDJ150,GRJ150..RUS202208-202312

ARMENIA SPEC&VX-L PACKAGE

main45810-60210iGDJ150..RHD..6FC202208-202312

KAZAKHSTAN SPEC&VX PACKAGE

main45810-60210iGDJ150..RHD..6FC202208-202312

KAZAKHSTAN SPEC&VX-L PACKAGE

main45810-60210iGDJ150..RHD..6FC202208-202312

IRELAND SPEC&VX-L PACKAGE

main45810-60210iGDJ150..RHD..6FC202208-202312

UKRAINE SPEC&VX PACKAGE

main45810-60210iGDJ150..RHD..6FC202208-202312

UKRAINE SPEC&VX-L PACKAGE

main45810-60210iKDJ150..RHD201708-201906

45286BCOVER, STEERING COLUMN, UPR

main45286-60550-C0iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

BLACK,TRIM2#

main45286-60550-E0iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

ORCHID BROWN,TRIM4#

main45286-60560-C0iKDJ150..RHD201708-201906

BLACK,TRIM2#

main45286-60560-E0iKDJ150..RHD201708-201906

ORCHID BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-60600-C0iTRJ150201708-202312

BLACK,TRIM2#

main45287-60600-E0iTRJ150201708-202312

ORCHID BROWN,TRIM4#

main45287-60610-C0iKDJ150..LHD;GDJ15#,GRJ150201708-202312

BLACK,TRIM2#

main45287-60610-E0iKDJ150..LHD;GDJ15#,GRJ150201708-202312

ORCHID BROWN,TRIM4#

main45287-60630-C0iKDJ150..RHD201708-201906

BLACK,TRIM2#

main45287-60630-E0iKDJ150..RHD201708-201906

ORCHID BROWN,TRIM4#

45817STOPPER, STEERING SHAFT THRUST

main45817-60020iGDJ150,GRJ150..RUS202208-202312

ARMENIA SPEC&VX PACKAGE

main45817-60020iGDJ150,GRJ150..RUS202208-202312

ARMENIA SPEC&VX-L PACKAGE

main45817-60020iGDJ150,GRJ150..RUS202208-202312

KAZAKHSTAN SPEC&VX PACKAGE

main45817-60020iGDJ150,GRJ150..RUS202208-202312

KAZAKHSTAN SPEC&VX-L PACKAGE

main45817-60020iGDJ150,GRJ150..RUS202208-202312

IRELAND SPEC&VX-L PACKAGE

main45817-60020iGDJ150,GRJ150..RUS202208-202312

UKRAINE SPEC&VX PACKAGE

main45817-60020iGDJ150,GRJ150..RUS202208-202312

UKRAINE SPEC&VX-L PACKAGE

main45817-60020iGDJ150,GRJ150..RUS202208-202312

MALTA SPEC&VX-L PACKAGE

main45817-60020iGDJ150,GRJ150..RUS202208-202312

IRELAND SPEC&VX PACKAGE

main45817-60020iGDJ150,GRJ150..RUS202208-202312

MALTA SPEC&VX PACKAGE

main45817-60020iKDJ150..RHD201708-201906

45897BOLT, STEERING LOCK SET

main45897-12020iKDJ150..RHD201708-201906

main45897-12020iGDJ15#,GRJ150..LHD..6FC..EUR201708-202312

VX PACKAGE

main45897-12020iGDJ15#,GRJ150..LHD..6FC..EUR201708-202312

VX-L PACKAGE

8401

9011908560

main90119-08560

9016450034

main90164-50034

9155380616

main91553-80616

9415181000

main94151-81000

15 parts on this diagram · 3 diagrams in section
