EPC Data

DISC WHEEL & WHEEL CAP

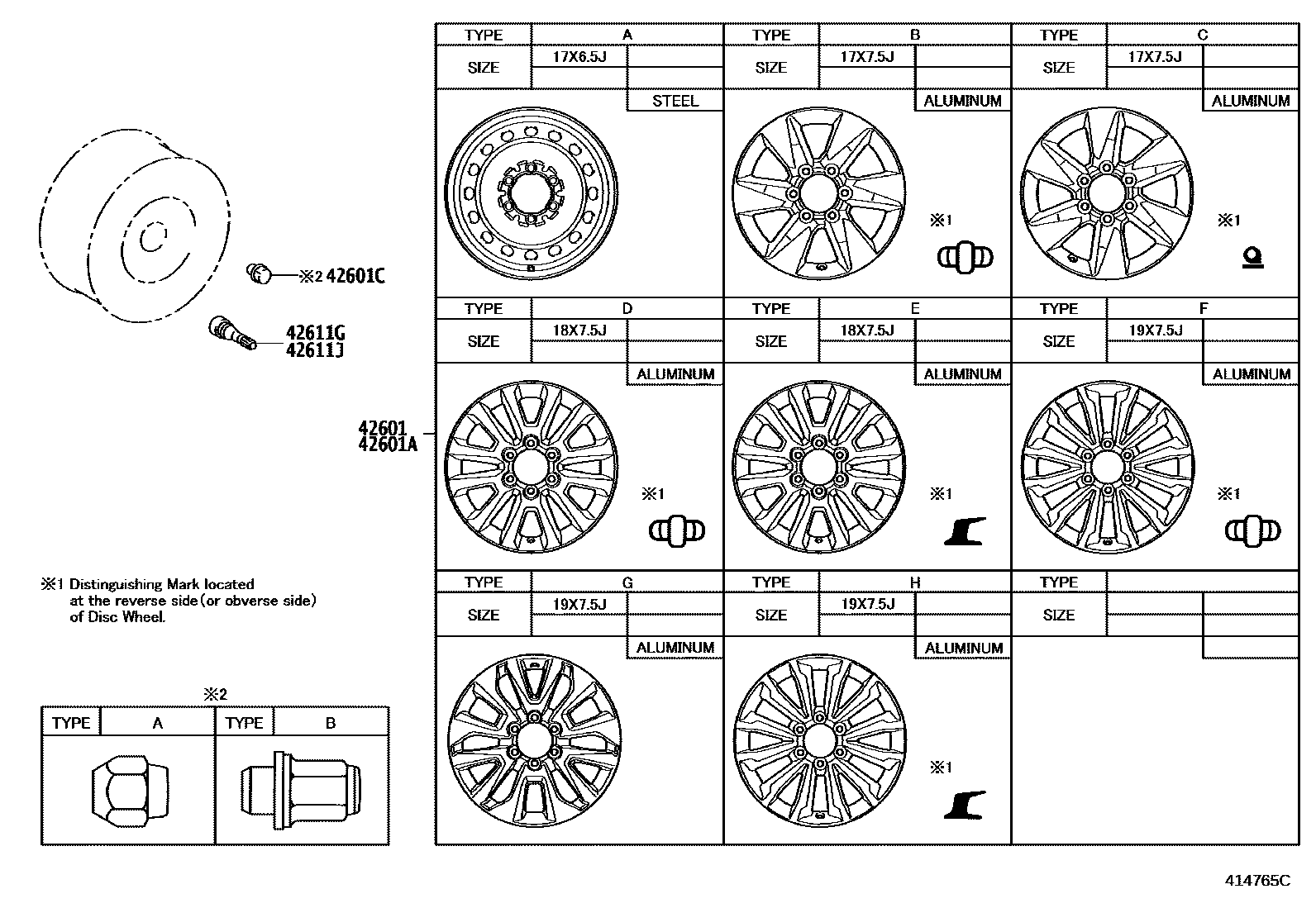

Parts diagram
42601WHEEL, DISC
main42611-60B70i201708-201908
17X6.5J, #,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE A:REFER ILLUST.
sub42611-60B71
main42611-60B70i201708-201908
17X6.5J, #,TYPE A:REFER ILLUST.
sub42611-60B71
main42611-60B71i202106-202312
17X6.5J, #,REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE&ROUGH ROAD AREA SPEC-HEAVY DUTY&TIRE & DISC WHEEL-245/70R17, 6.5J, STEEL,TYPE A:REFER ILLUST.
main42611-60B71i202106-202312
17X6.5J, #,ROUGH ROAD AREA SPEC-HEAVY DUTY&TIRE & DISC WHEEL-245/70R17, 6.5J, STEEL,TYPE A:REFER ILLUST.
main42611-60B71i202106-202312
17X6.5J, #,ISRAEL SPEC&ROUGH ROAD AREA SPEC-HEAVY DUTY&TIRE & DISC WHEEL-245/70R17, 6.5J, STEEL,TYPE A:REFER ILLUST.
main42611-60B71i201909-202312
17X6.5J, #,TYPE A:REFER ILLUST.
main42611-60D50i201708-202312
17X7.5J, #,TYPE B:REFER ILLUST.
main42611-60D50i201708-202312
17X7.5J, #,ECUADOR SPEC&VX PACKAGE,TYPE B:REFER ILLUST.
main42611-60D50i201708-202312
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.
main42611-60D50i202106-202312
17X7.5J, #,ISRAEL SPEC&ROUGH ROAD AREA SPEC-HEAVY DUTY,TYPE B:REFER ILLUST.
main42611-60D60i202106-202312
17X7.5J, #,TYPE B:REFER ILLUST.
main42611-60D70i202106-202312
17X7.5J, #,ISRAEL SPEC&ROUGH ROAD AREA SPEC-HEAVY DUTY,TYPE C:REFER ILLUST.
main42611-60D70i201708-202312
17X7.5J, #,TYPE C:REFER ILLUST.
main42611-60D70i201708-202312
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE C:REFER ILLUST.
main42611-60D70i201708-202312
17X7.5J, #,ECUADOR SPEC&VX PACKAGE,TYPE C:REFER ILLUST.
main42611-60D80i202106-202312
17X7.5J, #,TYPE C:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,ECUADOR SPEC&VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,TURKEY SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,TAIWAN SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,ESTONIA, LATVIA, LITHUANIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,WVTA CEUTA, AZORES, MACEDONIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,NORWAY SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,WVTA COUNTRIES, MACEDONIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60F80i202208-202312
18X7.5J,#,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK)
main42611-60F80i202208-202312
18X7.5J,#,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK)
main42611-60F80i202208-202312
18X7.5J,#,TURKEY SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK)
main42611-60F80i202208-202312
18X7.5J,#,ISRAEL SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK)
main42611-60F80i202208-202312
18X7.5J,#,VX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK)
main42611-60F80i202208-202312
18X7.5J,#,VX PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK)
main42611-60G60i202106-202312
19X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,WVTA CEUTA, AZORES, MACEDONIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,NORWAY SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,WVTA COUNTRIES, MACEDONIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,ECUADOR SPEC&VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,TURKEY SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,TAIWAN SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,ESTONIA, LATVIA, LITHUANIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main4261A-60180i201708-201906
18X7.5J, *SCHM,TYPE D:REFER ILLUST.
main4261A-60200i201708-201906
18X7.5J, #,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-60B70i201708-201908
17X6.5J, #,TYPE A:REFER ILLUST.
sub42611-60B71
main42611-60B70i201708-201908
17X6.5J, #,TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE A:REFER ILLUST.
sub42611-60B71
main42611-60B71i202106-202312
17X6.5J, #,ROUGH ROAD AREA SPEC-HEAVY DUTY&TIRE & DISC WHEEL-245/70R17, 6.5J, STEEL,TYPE A:REFER ILLUST.
main42611-60B71i201909-202312
17X6.5J, #,TYPE A:REFER ILLUST.
main42611-60B71i202106-202312
17X6.5J, #,ISRAEL SPEC&ROUGH ROAD AREA SPEC-HEAVY DUTY&TIRE & DISC WHEEL-245/70R17, 6.5J, STEEL,TYPE A:REFER ILLUST.
main42611-60B71i202106-202312
17X6.5J, #,REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE&ROUGH ROAD AREA SPEC-HEAVY DUTY&TIRE & DISC WHEEL-245/70R17, 6.5J, STEEL,TYPE A:REFER ILLUST.
main42611-60D50i201708-202312
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.
main42611-60D50i202106-202312
17X7.5J, #,ISRAEL SPEC&ROUGH ROAD AREA SPEC-HEAVY DUTY,TYPE B:REFER ILLUST.
main42611-60D50i201708-202312
17X7.5J, #,TYPE B:REFER ILLUST.
main42611-60D50i201708-202312
17X7.5J, #,ECUADOR SPEC&VX PACKAGE,TYPE B:REFER ILLUST.
main42611-60D60i202106-202312
17X7.5J, #,TYPE B:REFER ILLUST.
main42611-60D70i201708-202312
17X7.5J, #,TYPE C:REFER ILLUST.
main42611-60D70i201708-202312
17X7.5J, #,ECUADOR SPEC&VX PACKAGE,TYPE C:REFER ILLUST.
main42611-60D70i201708-202312
17X7.5J, #,TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE C:REFER ILLUST.
main42611-60D70i202106-202312
17X7.5J, #,ISRAEL SPEC&ROUGH ROAD AREA SPEC-HEAVY DUTY,TYPE C:REFER ILLUST.
main42611-60D80i202106-202312
17X7.5J, #,TYPE C:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,TAIWAN SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,ESTONIA, LATVIA, LITHUANIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,WVTA CEUTA, AZORES, MACEDONIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,NORWAY SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,WVTA COUNTRIES, MACEDONIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,ECUADOR SPEC&VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60E00i202106-202312
19X7.5J, #,TURKEY SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE F:REFER ILLUST.
main42611-60F80i202208-202312
18X7.5J,#,VX PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.
main42611-60F80i202208-202312
18X7.5J,#,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.
main42611-60F80i202208-202312
18X7.5J,#,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.
main42611-60F80i202208-202312
18X7.5J,#,TURKEY SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.
main42611-60F80i202208-202312
18X7.5J,#,ISRAEL SPEC&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.
main42611-60F80i202208-202312
18X7.5J,#,VX-L PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM(BLACK),TYPE E:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,WVTA CEUTA, AZORES, MACEDONIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,NORWAY SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,WVTA COUNTRIES, MACEDONIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,ECUADOR SPEC&VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,TURKEY SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,VX-L PACKAGE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,TAIWAN SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,REUNION,F-GUIANA,GUADELOUPE,MARTINIQUE&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main42611-60G60i202106-202312
19X7.5J, #,ESTONIA, LATVIA, LITHUANIA SPEC&TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE H:REFER ILLUST.
main4261A-60180i201708-201906
18X7.5J, *SCHM,TYPE D:REFER ILLUST.
main4261A-60200i201708-201906
18X7.5J, #,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01058i201708-202312
TIRE & DISC WHEEL-265/65R17, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.
main90942-01058i201708-202312
TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM,TYPE B:REFER ILLUST.
main90942-01058i201708-202312
TYPE B:REFER ILLUST.
main90942-01058i202106-202312
TIRE & DISC WHEEL-265/55R19, 7.5J, ALUMINUM, ACCESSORY,TYPE B:REFER ILLUST.
main90942-01104i201708-202312
TYPE A:REFER ILLUST.
main90942-01104i202106-202312
TIRE & DISC WHEEL-245/70R17, 6.5J, STEEL,TYPE A:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i201708-202312
ECUADOR SPEC
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i201708-202312
ECUADOR SPEC

5 parts on this diagram · 3 diagrams in section
