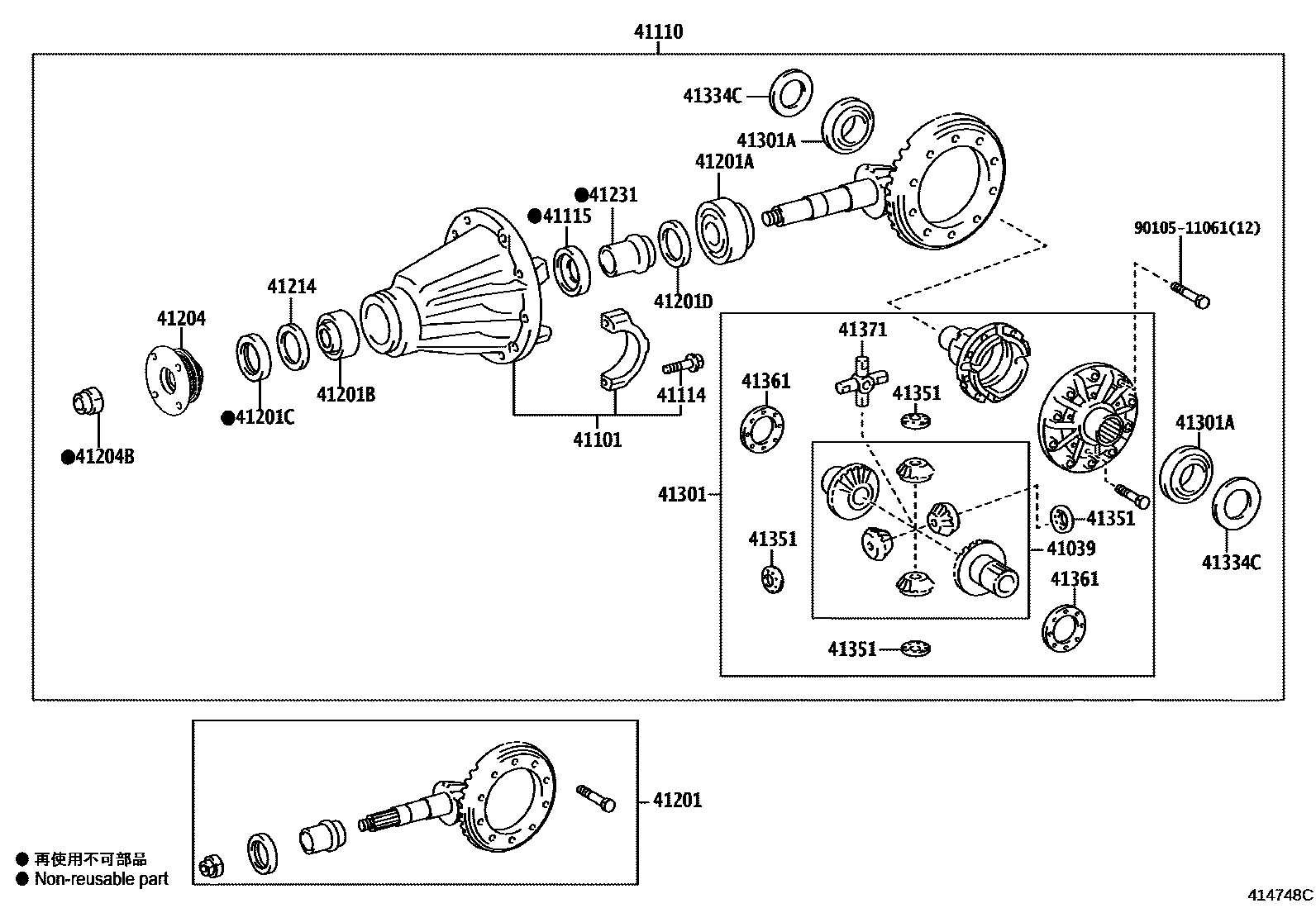

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1W(TORQUE SENSING LSD) 0003 1W(REAR DIFF LOCK(ELECTRIC TYP0004 1 0005 1W(REAR DIFF LOCK(ELECTRIC TYP

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-34080iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35180iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-35C80iGDJ15#..6F201708-202312

*FGR=41:11=3.727

main41110-35C90iKDJ150..LHD;GDJ15#,GRJ150..6FC201708-202312

*FGR=43:11=3.909

main41110-35D20iTRJ150..5F201708-202312

*FGR=41:9=4.555

main41110-60C60iTRJ150..6FC201708-202312

*FGR=43:9=4.777

main41110-60D60iKDJ150..RHD201708-201906

*FGR=43:11=3.909

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main41114-60020iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41115RING, DIFFERENTIAL OIL STORAGE

main41115-35020iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80566iGDJ15#..6F201708-202312

*FGR=41:11=3.727

main41201-80567iKDJ150;GDJ15#,GRJ150..6FC201708-202312

*FGR=43:11=3.909

main41201-80569iTRJ150..5F201708-202312

*FGR=41:9=4.555

main41201-80784iTRJ150..6FC201708-202312

*FGR=43:9=4.777

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40132iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-35157iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-44008iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90564-64062iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=1.85

main90564-64064iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=1.87

main90564-64066iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=1.89

main90564-64068iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=1.91

main90564-64070iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=1.93

main90564-64072iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=1.95

main90564-64074iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=1.97

main90564-64076iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=1.99

main90564-64078iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.01

main90564-64080iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.03

main90564-64082iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.05

main90564-64084iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.07

main90564-64086iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.09

main90564-64088iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.11

main90564-64090iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.13

main90564-64092iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.15

main90564-64094iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.17

main90564-64096iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.19

main90564-64098iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.21

main90564-64100iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.23

main90564-64102iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.25

main90564-64104iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.27

main90564-64106iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.29

main90564-64108iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

T=2.31

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35120iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41204BNUT (FOR REAR DRIVE PINION)

main90179-22029iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-35030iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-35050iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-35180iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

main41301-60200iKDJ150..RHD201708-201906

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50130iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-52001iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.58,MARK 01

main90201-52003iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.64,MARK 03

main90201-52005iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.70,MARK 05

main90201-52007iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.76,MARK 07

main90564-46014iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.60,MARK 32

main90564-46015iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.62,MARK 33

main90564-46016iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.66,MARK 34

main90564-46017iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.68,MARK 35

main90564-46018iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.72,MARK 36

main90564-46019iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.74,MARK 37

main90564-46044iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.42,MARK 62

main90564-46045iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.44,MARK 63

main90564-46046iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.46,MARK 64

main90564-46047iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.48,MARK 65

main90564-46048iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.50,MARK 66

main90564-46049iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.52,MARK 67

main90564-46050iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.54,MARK 68

main90564-46051iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.56,MARK 69

main90564-46052iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.06,MARK 70

main90564-46053iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.08,MARK 71

main90564-46054iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.10,MARK 72

main90564-46055iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.12,MARK 73

main90564-46056iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.14,MARK 74

main90564-46057iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.16,MARK 75

main90564-46058iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.18,MARK 76

main90564-46059iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.20,MARK 77

main90564-46060iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.22,MARK 78

main90564-46061iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.24,MARK 79

main90564-46062iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.26,MARK 80

main90564-46063iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.28,MARK 81

main90564-46064iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.30,MARK 82

main90564-46065iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.32,MARK 83

main90564-46066iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.34,MARK 84

main90564-46067iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.36,MARK 85

main90564-46068iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.38,MARK 86

main90564-46069iGDJ15#,GRJ150,KDJ150,TRJ150201708-202209

T=2.40,MARK 87

main90564-59044iGDJ15#,GRJ150,TRJ150202209-202312

T=2.08

main90564-59045iGDJ15#,GRJ150,TRJ150202209-202312

T=2.10

main90564-59046iGDJ15#,GRJ150,TRJ150202209-202312

T=2.12

main90564-59047iGDJ15#,GRJ150,TRJ150202209-202312

T=2.14

main90564-59048iGDJ15#,GRJ150,TRJ150202209-202312

T=2.16

main90564-59049iGDJ15#,GRJ150,TRJ150202209-202312

T=2.18

main90564-59050iGDJ15#,GRJ150,TRJ150202209-202312

T=2.20

main90564-59051iGDJ15#,GRJ150,TRJ150202209-202312

T=2.22

main90564-59052iGDJ15#,GRJ150,TRJ150202209-202312

T=2.24

main90564-59053iGDJ15#,GRJ150,TRJ150202209-202312

T=2.26

main90564-59054iGDJ15#,GRJ150,TRJ150202209-202312

T=2.28

main90564-59055iGDJ15#,GRJ150,TRJ150202209-202312

T=2.30

main90564-59056iGDJ15#,GRJ150,TRJ150202209-202312

T=2.32

main90564-59057iGDJ15#,GRJ150,TRJ150202209-202312

T=2.34

main90564-59058iGDJ15#,GRJ150,TRJ150202209-202312

T=2.36

main90564-59059iGDJ15#,GRJ150,TRJ150202209-202312

T=2.38

main90564-59060iGDJ15#,GRJ150,TRJ150202209-202312

T=2.40

main90564-59061iGDJ15#,GRJ150,TRJ150202209-202312

T=2.42

main90564-59062iGDJ15#,GRJ150,TRJ150202209-202312

T=2.44

main90564-59063iGDJ15#,GRJ150,TRJ150202209-202312

T=2.46

main90564-59064iGDJ15#,GRJ150,TRJ150202209-202312

T=2.48

main90564-59065iGDJ15#,GRJ150,TRJ150202209-202312

T=2.50

main90564-59066iGDJ15#,GRJ150,TRJ150202209-202312

T=2.52

main90564-59067iGDJ15#,GRJ150,TRJ150202209-202312

T=2.54

main90564-59068iGDJ15#,GRJ150,TRJ150202209-202312

T=2.56

main90564-59069iGDJ15#,GRJ150,TRJ150202209-202312

T=2.58

main90564-59070iGDJ15#,GRJ150,TRJ150202209-202312

T=2.60

main90564-59071iGDJ15#,GRJ150,TRJ150202209-202312

T=2.62

main90564-59072iGDJ15#,GRJ150,TRJ150202209-202312

T=2.64

main90564-59073iGDJ15#,GRJ150,TRJ150202209-202312

T=2.66

main90564-59074iGDJ15#,GRJ150,TRJ150202209-202312

T=2.68

main90564-59246iGDJ15#,GRJ150,TRJ150202209-202312

T=2.06

main90564-59247iGDJ15#,GRJ150,TRJ150202209-202312

T=2.70

main90564-59248iGDJ15#,GRJ150,TRJ150202209-202312

T=2.72

main90564-59249iGDJ15#,GRJ150,TRJ150202209-202312

T=2.74

main90564-59250iGDJ15#,GRJ150,TRJ150202209-202312

T=2.76

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30060iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-35310iGDJ150,GRJ150,KDJ150..ATM201708-202312

T=0.9,REAR DIFFERENTIAL LOCK-WITH(ELECTRIC TYPE),RH

main41361-35310iGDJ150,GRJ150,KDJ150..ATM201708-202312

T=0.9

main41361-35320iGDJ150,GRJ150,KDJ150..ATM201708-202312

T=1.0,REAR DIFFERENTIAL LOCK-WITH(ELECTRIC TYPE),RH

main41361-35320iGDJ150,GRJ150,KDJ150..ATM201708-202312

T=1.0

main41361-35330iGDJ150,GRJ150,KDJ150..ATM201708-202312

T=1.1,REAR DIFFERENTIAL LOCK-WITH(ELECTRIC TYPE),RH

main41361-35330iGDJ150,GRJ150,KDJ150..ATM201708-202312

T=1.1

main41361-35340iGDJ150,GRJ150,KDJ150..ATM201708-202312

T=1.2,REAR DIFFERENTIAL LOCK-WITH(ELECTRIC TYPE),RH

main41361-35340iGDJ150,GRJ150,KDJ150..ATM201708-202312

T=1.2

main41361-35350iGDJ150,GRJ150,KDJ150..ATM201708-202312

T=1.3,REAR DIFFERENTIAL LOCK-WITH(ELECTRIC TYPE),RH

main41361-35350iGDJ150,GRJ150,KDJ150..ATM201708-202312

T=1.3

41371SPIDER, REAR DIFFERENTIAL

main41371-35040iKDJ150..LHD;GDJ15#,GRJ150,TRJ150201708-202312

9010511061

main90105-11061

21 parts on this diagram · 5 diagrams in section
