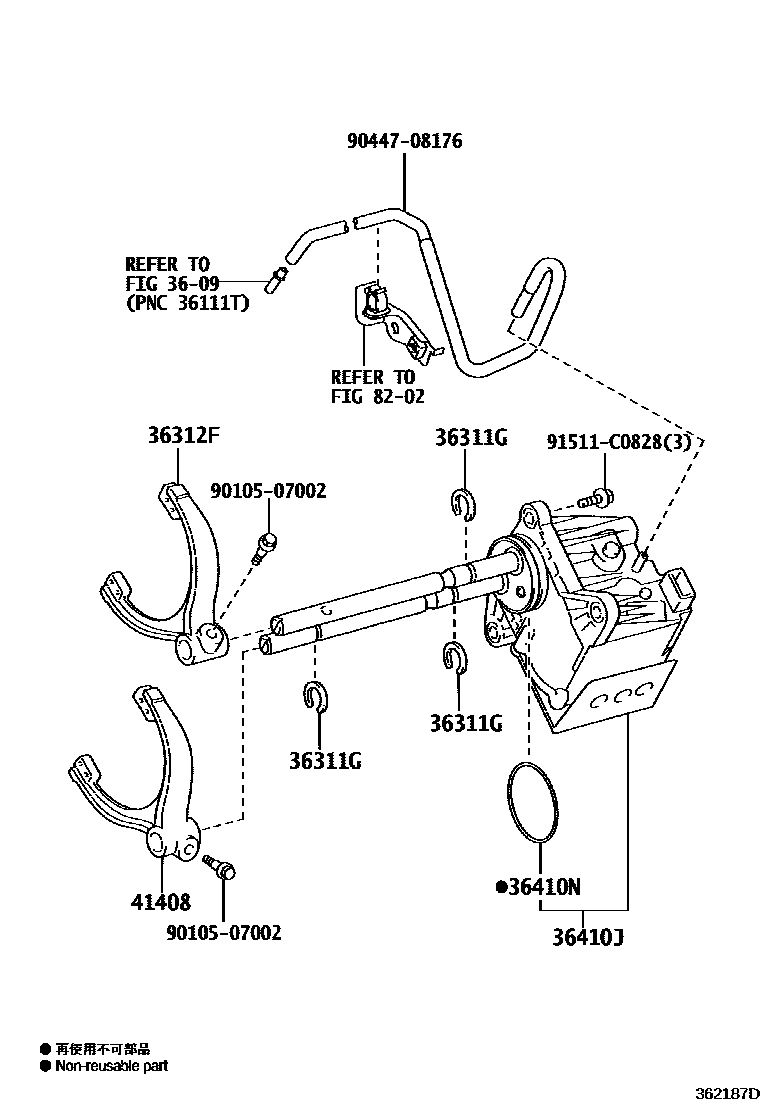

TRANSFER LEVER & SHIFT ROD

3609

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-35011iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-60093iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)

main90301-56009iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

41408FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK

main41408-60021iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

8202

9010507002

main90105-07002

9044708176

main90447-08176

91511C0828

main91511-C0828

10 parts on this diagram · 1 diagram in section
