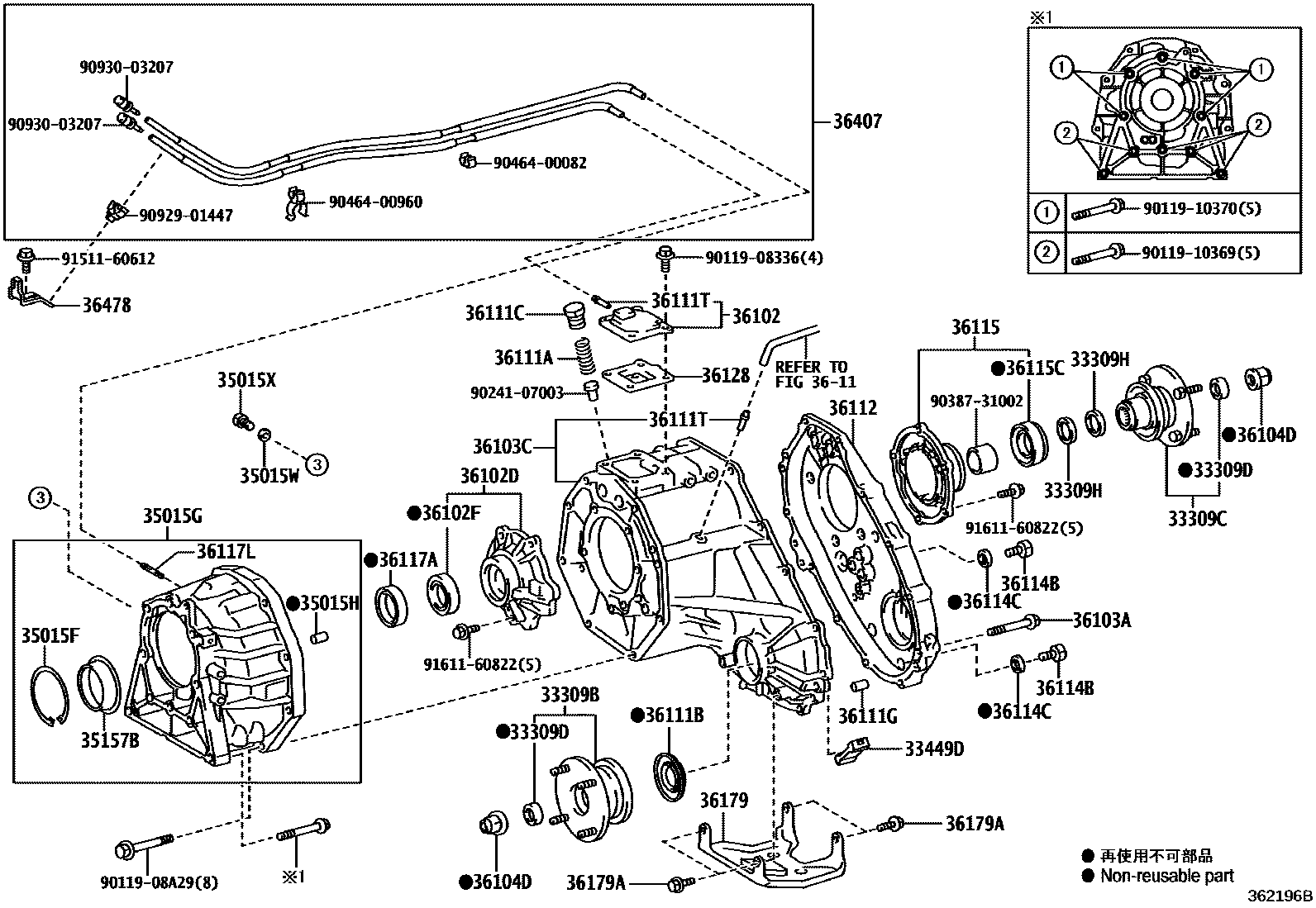

TRANSFER CASE & EXTENSION HOUSING
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
PNC 36111B=TYPE B
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309HWASHER, TRANSFER OUTPUT SHAFT
N=31,OD=38
33449DMAGNET (FOR TRANSFER CASE)
35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)
35015GADAPTER, TRANSFER, REAR
35015HPIN, RING(FOR TRANSFER CASE)
35015WRING, O(FOR TRANSMISSION CASE ADAPTER REFILL PLUG)
35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)
35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL
36102COVER SUB-ASSY, TRANSFER CASE
36102DRETAINER SUB-ASSY, TRANSFER RH BEARING
36102FSEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX55-30
36103CCASE, TRANSFER, FRONT
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
3611
36111ASPRING, COMPRESSION (FOR TRANSFER CASE)
36111BSEAL, OIL (FOR TRANSFER CASE)
36111CPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111TTUBE (FOR TRANSFER CASE)
sub90406-T0007
36112CASE, TRANSFER, REAR
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36115HOUSING, TRANSFER EXTENSION
36117ADAPTER, TRANSFER
36117ASEAL, OIL(FOR TRANSFER ADAPTER)
36117LTUBE(FOR TRANSFER ADAPTER)
sub90406-T0007
36128DEFLECTOR, BREATHER OIL
36179PROTECTOR, TRANSFER CASE LOWER
36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)
36407HOSE SUB-ASSY, TRANSFER BREATHER
36478BRACKET, TRANSFER BREATHER
9011908336
main90119-08336
9011908A29
main90119-08A29
9011910369
main90119-10369
9011910370
main90119-10370
9024107003
main90241-07003
9038731002
main90387-31002
9046400082
main90464-00082
9046400960
main90464-00960
9092901447
main90929-01447
9093003207
main90930-03207
9151160612
main91511-60612
9161160822
main91611-60822
48 parts on this diagram · 5 diagrams in section
