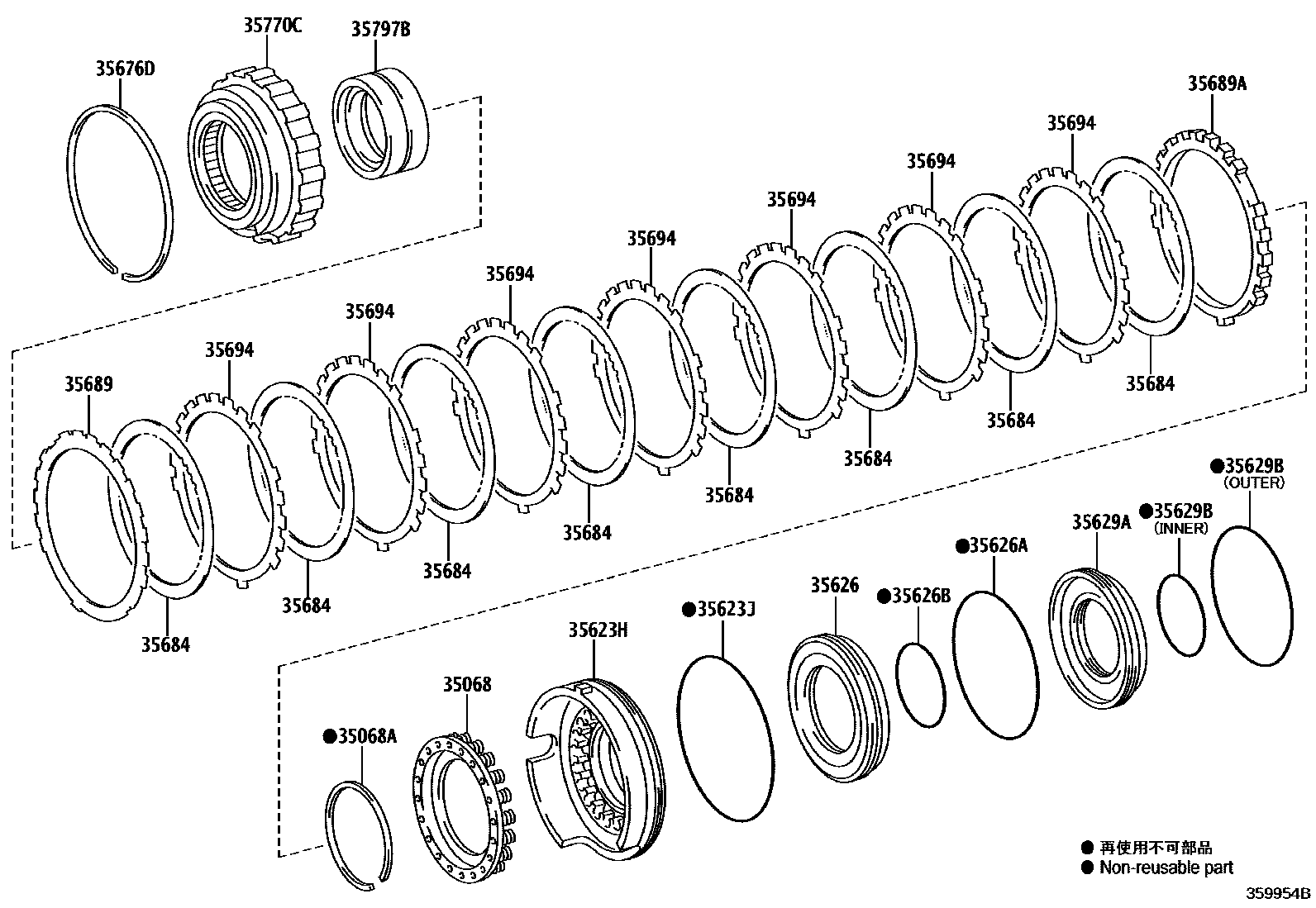

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A750F 0002 1AC60F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-60010iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,850201708-202312

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥120201708-202312

35623HPISTON, 1ST & REVERSE BRAKE

main35623-60060iKDJ150..5FC¥4,860201708-202007

main35623-71010iGDJ15#,GRJ150..6FC¥4,150201708-202312

main35623-71020iTRJ150..6FC¥4,650201708-202312

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥200201708-202312

35626SLEEVE, BRAKE REACTION

main35626-50010iGDJ15#,GRJ150,TRJ150..6FC¥1,360201708-202312

main35626-60010iKDJ150..5FC¥1,890201708-202007

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99143iKDJ150..5FC¥220201708-202007

main90301-99144iGDJ15#,GRJ150,TRJ150..6FC¥200201708-202312

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥170201708-202312

35629APISTON, BRAKE, NO.4

main35629-50020iGDJ15#,GRJ150,TRJ150..6FC¥1,800201708-202312

main35629-60010iKDJ150..5FC¥1,980201708-202007

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥170201708-202312

INNER

main90301-99084iGDJ15#,GRJ150,TRJ150..6FC¥200201708-202312

OUTER

main90301-99151iKDJ150..5FC¥220201708-202007

OUTER

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99131iKDJ150..5FC¥310201708-202007

35684DISC, BRAKE, NO.4

main35684-50010iKDJ150..5FC¥840201708-202007

main35684-60030iTRJ150..6FC¥760201708-202312

35689FLANGE, BRAKE, NO.4

main35689-60270iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=1.8,MARK 0

main35689-60280iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=1.97,MARK 1

main35689-60290iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=2.11,MARK 3

main35689-60300iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=2.25,MARK 4

main35689-60310iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=2.39,MARK 5

main35689-60320iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=2.53,MARK 7

main35689-60330iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=2.67,MARK 8

main35689-60340iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=2.81,MARK10

main35689-60350iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=2.95,MARK 11

main35689-60360iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=3.09,MARK 12

main35689-60370iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥1,720201708-202312

T=3.23,MARK 14

35689AFLANGE, BRAKE, NO.4

main35689-60090iKDJ150..5FC¥1,710201708-202007

main35689-71010iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

35694PLATE, BRAKE, NO.4

main35694-60011iKDJ150..5FC¥470201708-202312

35770CCLUTCH ASSY, 1WAY NO.3

main35770-60030iGDJ15#,GRJ150,KDJ150,TRJ150..ATM¥32,900201708-202312

35797BRACE, 1 WAY CLUTCH, INNER

main35797-50031iKDJ150..5FC¥6,600201708-202007

main35797-60020iGDJ15#,GRJ150,TRJ150..6FC¥6,600201708-202312

16 parts on this diagram · 2 diagrams in section
