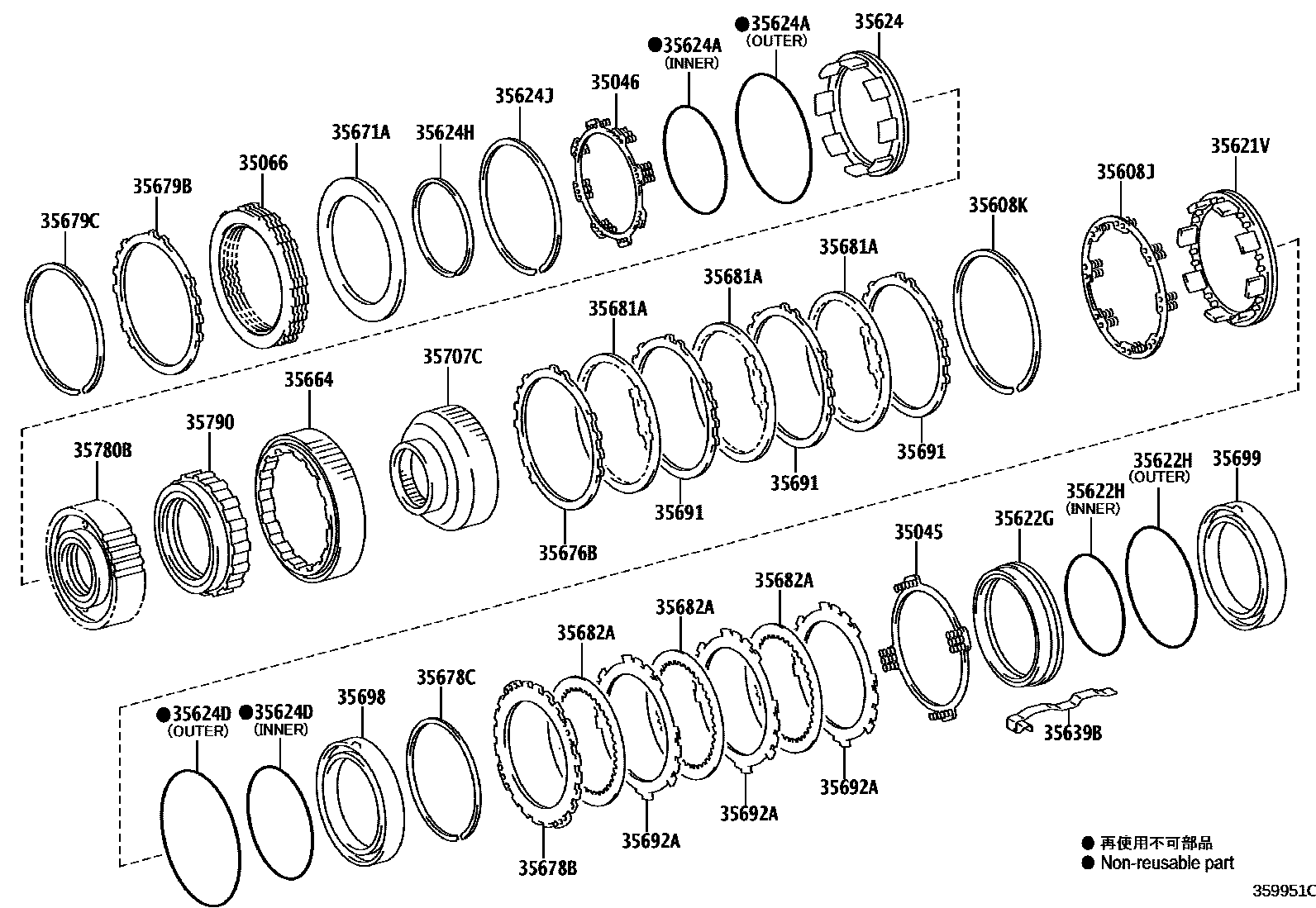

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A750F 0002 1AC60F

35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2

main35045-60010iKDJ150..5FC¥860201708-202007

main35045-71010iGDJ15#,GRJ150,TRJ150..6FC¥820201708-202312

35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3

main35046-60010iKDJ150..5FC¥1,850201708-202007

35066DISC SET, 2ND BRAKE

main35066-60030iKDJ150..5FC¥14,700201708-202007

35608JSPRING SUB-ASSY, BRAKE PISTON RETURN

main35608-60020iKDJ150..5FC¥990201708-202007

main35608-71010iGDJ15#,GRJ150,TRJ150..6FC¥1,060201708-202312

35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)

main90520-99039iKDJ150..5FC¥190201708-202007

main90520-99156iGDJ15#,GRJ150,TRJ150..6FC¥240201708-202312

NO.1:REFER ILLUST.

main90520-99157iGDJ15#,GRJ150,TRJ150..6FC¥300201708-202312

NO.2:REFER ILLUST.

35621VPISTON, BRAKE, NO.1

main35621-60020iKDJ150..5FC¥2,380201708-202007

main35621-71010iGDJ15#,GRJ150..6FC¥3,110201708-202312

main35621-71020iTRJ150..6FC¥3,410201708-202312

35622GPISTON, BRAKE, NO.2

main35622-60020iKDJ150..5FC¥2,150201708-202007

main35622-71010iGDJ15#,GRJ150..6FC¥2,680201708-202312

main35622-71020iTRJ150..6FC¥2,740201708-202312

35622HRING, O (FOR BRAKE PISTON NO.2)

main90301-99095iKDJ150..5FC¥200201708-202007

OUTER

main90301-99118iKDJ150..5FC¥200201708-202007

INNER

main90301-99132iGDJ15#,GRJ150,TRJ150..6FC¥200201708-202312

INNER

main90301-99179iGDJ15#,GRJ150,TRJ150..6FC¥200201708-202312

OUTER

35624PISTON, 2ND BRAKE

main35624-60010iKDJ150..5FC¥2,020201708-202007

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99095iKDJ150..5FC¥200201708-202007

INNER

main90301-99115iKDJ150..5FC¥200201708-202007

OUTER

35624DRING, O (FOR BRAKE PISTON NO.4)

main90301-99126iKDJ150..5FC¥200201708-202007

OUTER

main90301-99204iKDJ150..5FC¥200201708-202007

INNER

35624HRING, SNAP (FOR 2ND BRAKE PISTON)

main90520-99077iKDJ150..5FC¥120201708-202007

35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)

main90521-99130iKDJ150..5FC¥310201708-202007

35639BSPRING, BRAKE PLATE STOPPER

main35639-60010iKDJ150..5FC¥2,090201708-202007

main35639-71010iGDJ15#,GRJ150,TRJ150..6FC¥360201708-202312

NO.1:REFER ILLUST.

main35639-71020iGDJ15#,GRJ150,TRJ150..6FC¥360201708-202312

NO.2:REFER ILLUST.

35664CYLINDER, 2ND BRAKE

main35664-60010iKDJ150..5FC¥4,250201708-202007

sub35664-34010¥3,810

35671APLATE, BRAKE CUSHION

main35671-60010iKDJ150..5FC¥2,790201708-202007

35676BFLANGE, BRAKE, NO.1

main35676-60080iKDJ150..5FC¥1,880201708-202007

T=2.0,MARK 0

main35676-60090iKDJ150..5FC¥1,880201708-202007

T=2.2,MARK 1

main35676-60100iKDJ150..5FC¥1,880201708-202007

T=2.4,MARK 2

main35676-60110iKDJ150..5FC¥1,880201708-202007

T=2.6,MARK 3

main35676-71010iGDJ15#,GRJ150,TRJ150..6FC¥2,170201708-202312

T=4.9

main35676-71020iGDJ15#,GRJ150,TRJ150..6FC¥2,170201708-202312

T=5.0

main35676-71030iGDJ15#,GRJ150,TRJ150..6FC¥2,170201708-202312

T=5.1

main35676-71040iGDJ15#,GRJ150,TRJ150..6FC¥2,170201708-202312

T=5.2

main35676-71050iGDJ15#,GRJ150,TRJ150..6FC¥2,170201708-202312

T=5.3

main35676-71060iGDJ15#,GRJ150,TRJ150..6FC¥2,170201708-202312

T=5.4

main35676-71070iGDJ15#,GRJ150,TRJ150..6FC¥2,170201708-202312

T=5.5

main35676-71080iGDJ15#,GRJ150,TRJ150..6FC¥2,170201708-202312

T=5.6

main35676-71090iGDJ15#,GRJ150,TRJ150..6FC¥2,170201708-202312

T=5.7

main35676-71100iGDJ15#,GRJ150,TRJ150..6FC¥2,170201708-202312

T=5.8

35678BFLANGE, BRAKE, NO.2

main35678-60010iKDJ150..5FC¥990201708-202007

T=4.6

main35678-71010iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

T=3.8,REAR

main35678-71020iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

T=2.0,FRONT

main35678-71030iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

T=2.1,FRONT

main35678-71040iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

T=2.2,FRONT

main35678-71050iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

T=2.3,FRONT

main35678-71060iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

T=2.4,FRONT

main35678-71070iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

T=2.5,FRONT

main35678-71080iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

T=2.6,FRONT

main35678-71090iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

T=2.7,FRONT

main35678-71100iGDJ15#,GRJ150,TRJ150..6FC¥1,720201708-202312

T=2.8,FRONT

35678CRING, SNAP (FOR BRAKE NO.2)

main90520-99075iKDJ150..5FC¥190201708-202007

main90520-99155iGDJ15#,GRJ150,TRJ150..6FC¥300201708-202312

35679BFLANGE, BRAKE, NO.3

main35679-60010iKDJ150..5FC¥1,720201708-202007

35679CRING, SNAP (FOR BRAKE NO.3)

main90520-99080iKDJ150..5FC¥360201708-202007

35681ADISC, BRAKE, NO.1

main35681-60020iKDJ150..5FC¥750201708-202007

main35681-71010iTRJ150..6FC¥760201708-202312

35682ADISC, BRAKE, NO.2

main35682-50010iKDJ150..5FC¥760201708-202007

main35682-71010iTRJ150..6FC¥760201708-202312

35691PLATE, BRAKE, NO.1

main35691-60010iKDJ150..5FC¥720201708-202007

main35691-71010iTRJ150..6FC¥740201708-202312

35692APLATE, BRAKE, NO.2

main35692-60010iKDJ150..5FC¥750201708-202007

main35692-71010iTRJ150..6FC¥740201708-202312

35698CYLINDER, BRAKE, NO.1

main35698-60010iKDJ150..5FC¥1,450201708-202007

main35698-71010iGDJ15#,GRJ150,TRJ150..6FC¥1,760201708-202312

35699CYLINDER, BRAKE, NO.2

main35699-60010iKDJ150..5FC¥1,390201708-202007

main35699-71010iGDJ15#,GRJ150,TRJ150..6FC¥1,760201708-202312

35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-60010iKDJ150..5FC¥9,300201708-202007

35780BCLUTCH ASSY, 1 WAY N0.2

main35780-50040iKDJ150..5FC¥18,100201708-202007

35790CLUTCH ASSY, 1 WAY

main35790-50020iKDJ150..5FC¥9,100201708-202007

30 parts on this diagram · 2 diagrams in section
