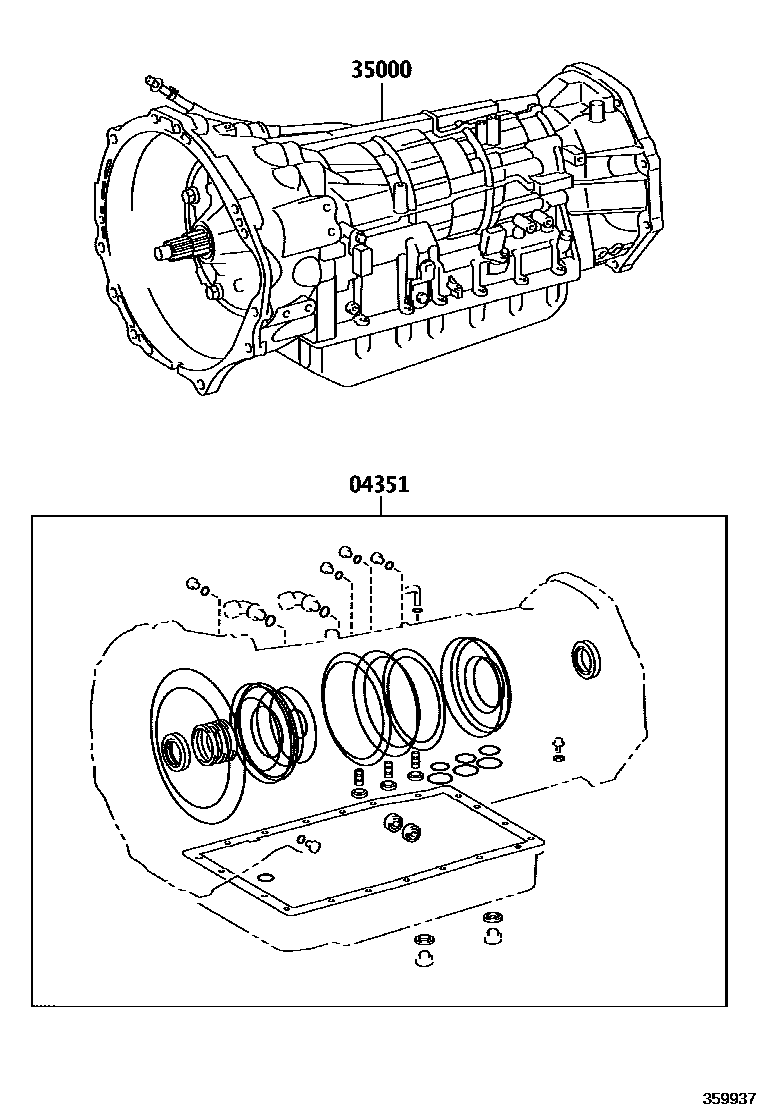

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A750F 0002 1AC60F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-60470iKDJ150..5FC201708-202007

main04351-71230iGDJ15#,GRJ150,TRJ150..6FC201708-202312

35000TRANSMISSION ASSY, AUTOMATIC

main35000-60C40iKDJ150..5FC201708-202007

A750F

main35000-60D50iTRJ150..6FC201708-202312

AC60F

main35000-60E60iGDJ15#..6FC201708-202008

AC60F

main35000-60E80iGRJ150201708-202312

AC60F

main35000-60G40iGDJ15#..6FC..EUR202008-202312

AC60F

main35000-60G50iGDJ150..RUS202008-202312

AC60F

main35000-60G50iGDJ150..RUS202008-202312

AC60F,LOW FUEL CONSUMPTION PACKAGE-WITHOUT(LOW FUEL CONSUMPTION PACKAGE)

2 parts on this diagram · 2 diagrams in section
