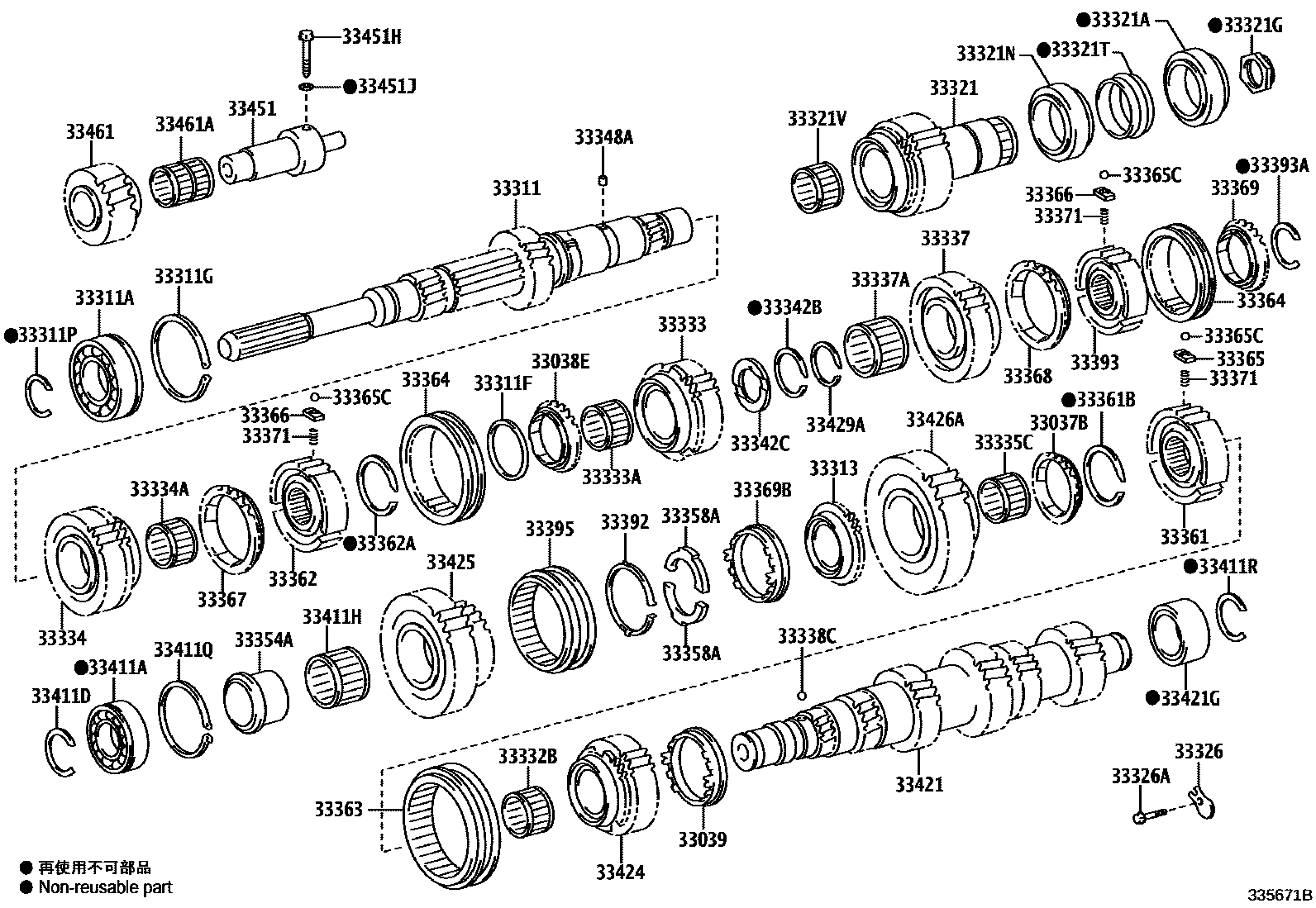

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33039RING SET, SYNCHRONIZER, NO.3
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311FSPACER (FOR INPUT SHAFT)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
33313PIECE, REVERSE GEAR SPLINE
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321TSPACER (FOR OUTPUT SHAFT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33337GEAR SUB-ASSY, 6TH
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33338CBALL, REVERSE SHIFT RESTRICT
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
T=2.07,MARK A
T=2.12,MARK B
T=2.17,MARK C
T=2.22,MARK D
T=2.27,MARK E
T=2.32,MARK F
33342CWASHER, 3RD GEAR THRUST
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33354ARACE, REVERSE GEAR BEARING, INNER
33358AKEY, SYNCHROMESH SHIFTING, NO.4
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.28,MARK A
T=2.33,MARK B
T=2.38,MARK C
T=2.43,MARK D
T=2.48,MARK E
T=2.53,MARK F
T=2.58,MARK G
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33365CBALL(FOR SYNCHROMESH SHIFTING KEY)
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33369BRING, SYNCHRONIZER, NO.4
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33395SLEEVE, TRANSMISSION HUB, NO.3
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=2.35,MARK A
T=2.40,MARK B
T=2.45,MARK C
T=2.50,MARK D
T=2.55,MARK E
T=2.60,MARK F
T=2.65,MARK G
T=2.70,MARK H
T=2.75,MARK J
T=2.80,MARK K
T=2.85,MARK L
T=2.90,MARK M
T=1.07,OD=62
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=1.67
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=2.35,MARK A
T=2.40,MARK B
T=2.45,MARK C
T=2.50,MARK D
T=2.55,MARK E
T=2.60,MARK F
T=2.65,MARK G
T=2.70,MARK H
T=2.75,MARK J
T=2.80,MARK K
T=2.85,MARK L
T=2.90,MARK M
33421GEAR, COUNTER
33421GBEARING, RADIAL BALL(FOR COUNTER GEAR REAR)
33424GEAR, COUNTERSHAFT 2ND SPEED
33425GEAR, COUNTERSHAFT REVERSE
33426AGEAR, COUNTERSHAFT, 1ST SPEED
33429ARING, SHAFT SNAP
T=1.0
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33461GEAR, REVERSE IDLER
33461ABEARING, REVERSE IDLER GEAR
68 parts on this diagram · 2 diagrams in section
