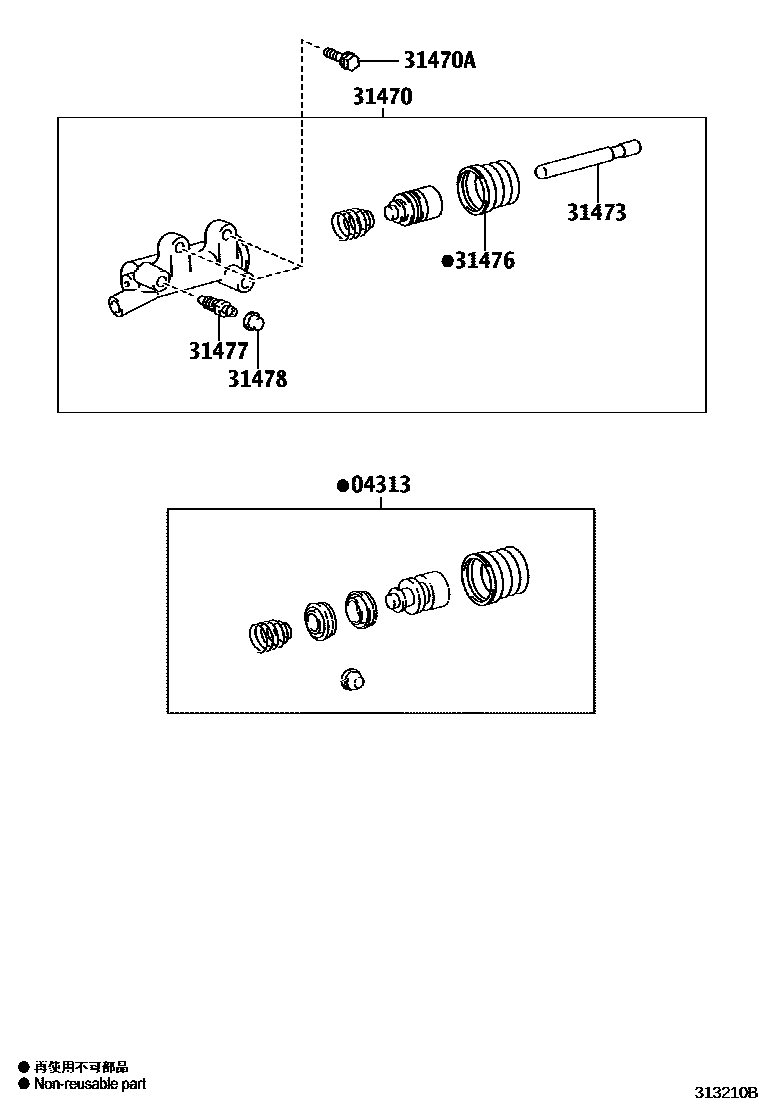

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-53041iGDJ15#,KDJ150..6F201708-202312

main04313-60170iTRJ150..5F201708-202312

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35191iTRJ150..5F201708-202312

main31470-60390iGDJ15#,KDJ150..6F201708-202312

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iGDJ15#,KDJ150,TRJ150..MTM201708-202312

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iTRJ150..5F201708-202312

main31473-60190iGDJ15#,KDJ150..6F201708-202312

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGDJ15#,KDJ150,TRJ150..MTM201708-202312

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGDJ15#,KDJ150,TRJ150..MTM201708-202312

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGDJ15#,KDJ150,TRJ150..MTM201708-202312

7 parts on this diagram · 2 diagrams in section
