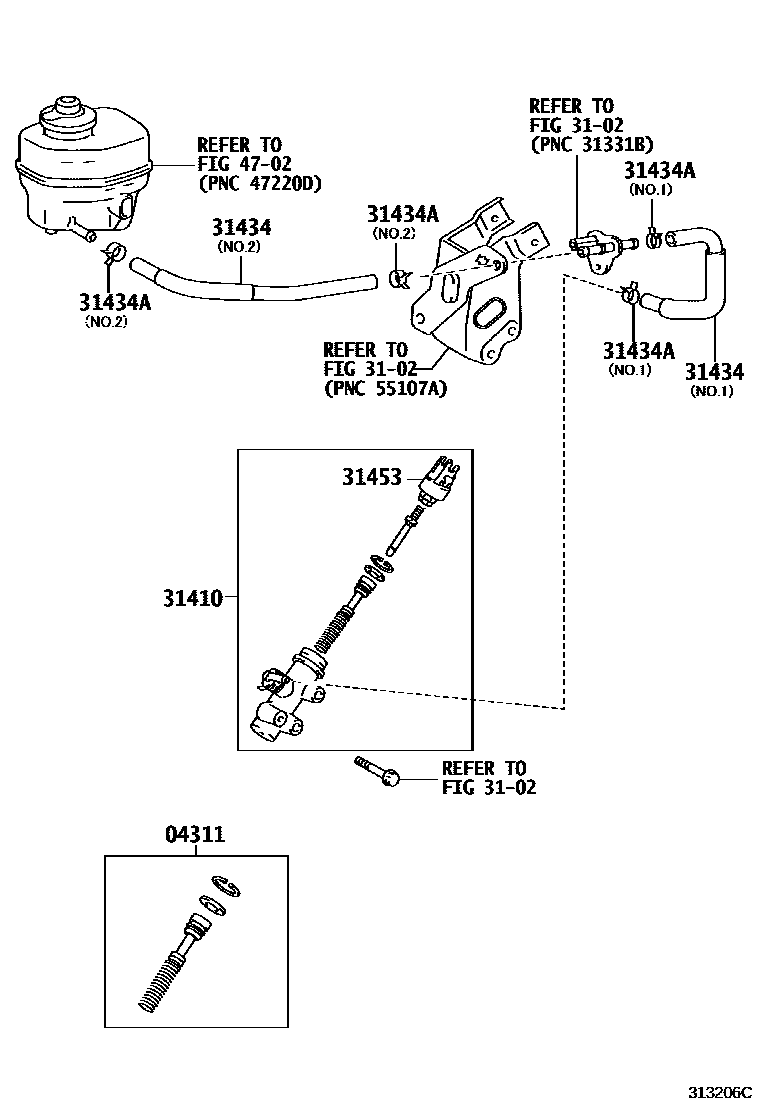

CLUTCH MASTER CYLINDER
04311CYLINDER KIT, CLUTCH MASTER
3102
31410CYLINDER ASSY, CLUTCH MASTER
31434TUBE, CLUTCH RESERVOIR
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
31434ACLIP(FOR CLUTCH RESERVOIR TUBE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
4702
7 parts on this diagram · 3 diagrams in section
