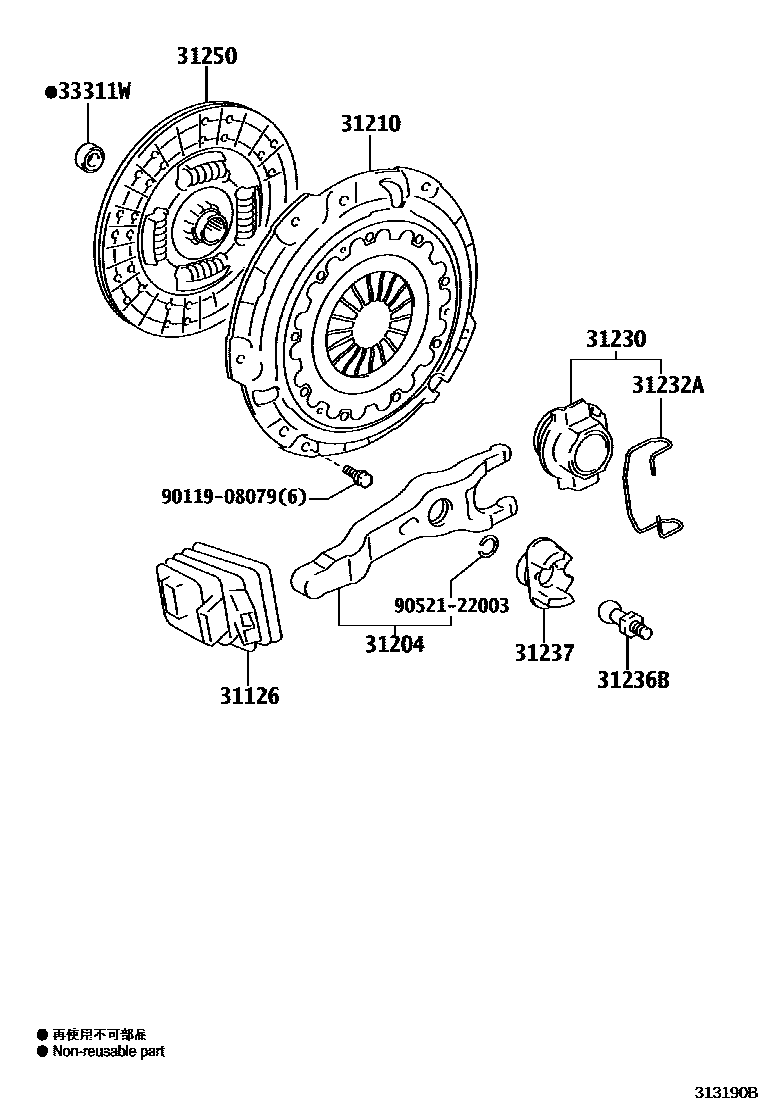

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-36080iTRJ150..5F201708-202312

main31126-60100iGDJ15#,KDJ150..6F201708-202312

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35031iTRJ150..5F201708-202312

main31204-60170iGDJ15#,KDJ150..6F201708-202312

31210COVER ASSY, CLUTCH

main31210-26172iTRJ150..5F201708-202312

main31210-60350iGDJ15#,KDJ150..6F201708-202312

31230BEARING ASSY, CLUTCH RELEASE

main31230-35071iTRJ150..5F201708-202312

main31230-60270iGDJ15#,KDJ150..6F201708-202312

31232ACLIP, RELEASE BEARING HUB

main31232-35020iTRJ150..5F201708-202312

TYPE A:REFER ILLUST.

main31232-35030iTRJ150..5F201708-202312

TYPE B:REFER ILLUST.

main31232-60060iGDJ15#,KDJ150..6F201708-202312

31236BSUPPORT, RELEASE FORK

main31236-20080iGDJ15#,KDJ150..6F201708-202312

main31236-35030iTRJ150..5F201708-202312

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-20010iGDJ15#,KDJ150..6F201708-202312

31250DISC ASSY, CLUTCH

main31250-60382iGDJ15#,KDJ150..6F201708-201802

sub31250-60383

main31250-60383iGDJ15#,KDJ150..6F201802-202312

main31250-60500iTRJ150..5F201708-201711

sub31250-60501

main31250-60501iTRJ150..5F201711-202312

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iGDJ15#,KDJ150..6F201708-201808

sub90363-12024

main90363-12020iTRJ150..5F201708-202312

main90363-12024iGDJ15#,KDJ150..6F201808-202312

9011908079

main90119-08079

9052122003

main90521-22003

11 parts on this diagram · 2 diagrams in section
