UREA TANK & TUBE

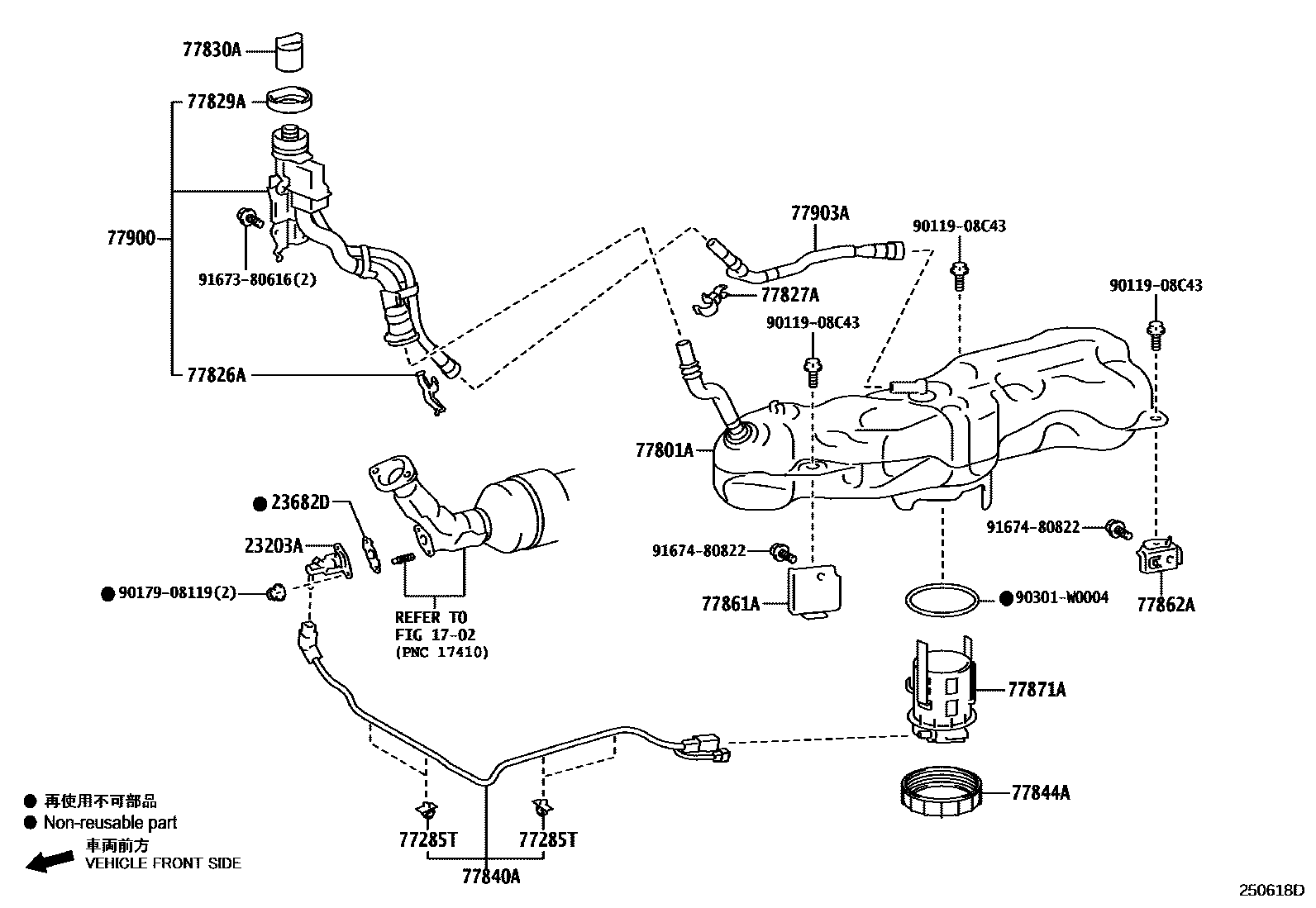

Parts diagram
1702
23203AINJECTOR SET, UREA
main23203-11020i201708-201709
EU NTA MAC SPEC&VX PACKAGE
sub23203-11021
main23203-11020i201708-201709
EU NTA MAC SPEC&VX-L PACKAGE
sub23203-11021
main23203-11020i201708-201709
EU NTA MAC SPEC&VX-L PACKAGE&STEERING SWITCH-AUDIO & TEL & VOICE & *MID
sub23203-11021
main23203-11020i201708-201709
EU NTA MAC SPEC&VX-L PACKAGE&STEERING SWITCH-AUDIO & TELEPHONE & *MID
sub23203-11021
main23203-11020i201708-201709
EU NTA MAC SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
sub23203-11021
main23203-11020i201708-201709
EU NTA MAC SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
sub23203-11021
main23203-11020i201708-201709
EU NTA MAC SPEC&SPEEDOMETER-ANALOG(KM/H)
sub23203-11021
main23203-11020i201708-201709
EXHAUST EMISSION CONTROL-EURO 5
sub23203-11021
main23203-11020i201708-201709
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
sub23203-11021
main23203-11020i201708-201709
STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
sub23203-11021
main23203-11020i201708-201709
EXHAUST EMISSION CONTROL-EURO 4
sub23203-11021
main23203-11020i201708-201709
MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
sub23203-11021
main23203-11020i201708-201709
MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
sub23203-11021
main23203-11020i201708-201709
UKRAINE SPEC&SPEEDOMETER-OPTITRON(KM/H)
sub23203-11021
main23203-11021i201709-201911
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main23203-11021i201709-202010
EXHAUST EMISSION CONTROL-EURO 5
main23203-11021i201709-202010
EXHAUST EMISSION CONTROL-EURO 4
main23203-11021i201709-202008
UKRAINE SPEC&SPEEDOMETER-OPTITRON(KM/H)
main23203-11021i202008-202106
UKRAINE SPEC&ENGINE-FOR EURO 6C CONFORMITY&SPEEDOMETER-OPTITRON(KM/H)
main23203-11021i201709-202312
EU NTA MAC SPEC&VX PACKAGE
main23203-11021i201709-202312
EU NTA MAC SPEC&VX-L PACKAGE
main23203-11021i201709-202312
EU NTA MAC SPEC&VX-L PACKAGE&STEERING SWITCH-AUDIO & TEL & VOICE & *MID
main23203-11021i201709-202312
EU NTA MAC SPEC&VX-L PACKAGE&STEERING SWITCH-AUDIO & TELEPHONE & *MID
main23203-11021i201709-202312
EU NTA MAC SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
main23203-11021i201709-202312
EU NTA MAC SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
main23203-11021i201709-202312
EU NTA MAC SPEC&SPEEDOMETER-ANALOG(KM/H)
main23203-11021i201709-202312
STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
main23203-11021i201709-202312
MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
main23203-11021i201709-202312
MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
23682DGASKET, NOZZLE HOLDER
main23682-11010i201708-202312
EU NTA MAC SPEC&VX-L PACKAGE
main23682-11010i201708-201911
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main23682-11010i201708-202010
EXHAUST EMISSION CONTROL-EURO 5
main23682-11010i201708-202010
EXHAUST EMISSION CONTROL-EURO 4
main23682-11010i201708-202008
UKRAINE SPEC&SPEEDOMETER-OPTITRON(KM/H)
main23682-11010i202008-202106
UKRAINE SPEC&ENGINE-FOR EURO 6C CONFORMITY&SPEEDOMETER-OPTITRON(KM/H)
main23682-11010i201708-202312
EU NTA MAC SPEC&VX PACKAGE
main23682-11010i201708-202312
EU NTA MAC SPEC&VX-L PACKAGE&STEERING SWITCH-AUDIO & TEL & VOICE & *MID
main23682-11010i201708-202312
EU NTA MAC SPEC&VX-L PACKAGE&STEERING SWITCH-AUDIO & TELEPHONE & *MID
main23682-11010i201708-202312
EU NTA MAC SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
main23682-11010i201708-202312
EU NTA MAC SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
main23682-11010i201708-202312
EU NTA MAC SPEC&SPEEDOMETER-ANALOG(KM/H)
main23682-11010i201708-202312
STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
main23682-11010i201708-202312
MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
main23682-11010i201708-202312
MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
77285TCLAMP, UREA TUBE, NO.1
main77285-60C40i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
main77285-60C40i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77285-60C40i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77285-60C40i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77285-60C40i201708-202312
EU NTA MAC SPEC
main77285-60C40i201708-202312
EXHAUST EMISSION CONTROL-EURO 4
77801ATANK SUB-ASSY, UREA
main77801-60030i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
main77801-60030i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77801-60030i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77801-60030i201708-202106
EU NTA MAC SPEC
main77801-60030i201708-202106
EXHAUST EMISSION CONTROL-EURO 4
main77801-60030i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77801-60040i202106-202312
EU NTA MAC SPEC
main77801-60040i202106-202312
EXHAUST EMISSION CONTROL-EURO 4
77826ASUPPORT, UREA TANK FILLER PIPE, NO.1
main77917-60040i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
main77917-60040i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77917-60040i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77917-60040i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77917-60040i201708-202312
EU NTA MAC SPEC
main77917-60040i201708-202312
EXHAUST EMISSION CONTROL-EURO 4
77827ASUPPORT, UREA TANK FILLER PIPE, NO.2
main77917-60050i201708-201709
EU NTA MAC SPEC
sub77917-60051
main77917-60050i201708-201709
EXHAUST EMISSION CONTROL-EURO 5
sub77917-60051
main77917-60050i201708-201709
EXHAUST EMISSION CONTROL-EURO 6
sub77917-60051
main77917-60050i201708-201709
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
sub77917-60051
main77917-60050i201708-201709
EXHAUST EMISSION CONTROL-EURO 4
sub77917-60051
main77917-60051i201710-201806
EXHAUST EMISSION CONTROL-EURO 6
main77917-60051i201710-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77917-60051i201710-202011
EXHAUST EMISSION CONTROL-EURO 5
main77917-60051i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77917-60051i201710-202312
EU NTA MAC SPEC
main77917-60051i201710-202312
EXHAUST EMISSION CONTROL-EURO 4
77829ACOVER, UREA TANK CAP
main77829-60020i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
main77829-60020i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77829-60020i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77829-60020i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77829-60020i201708-202312
EU NTA MAC SPEC
main77829-60020i201708-202312
EXHAUST EMISSION CONTROL-EURO 4
77830ACAP ASSY, UREA TANK
main77830-60010i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
main77830-60010i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77830-60010i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77830-60010i201708-202104
EU NTA MAC SPEC
main77830-60010i201708-202104
EXHAUST EMISSION CONTROL-EURO 4
main77830-60010i201806-202104
EXHAUST EMISSION CONTROL-EURO6 D
main77830-60020i202105-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77830-60020i202105-202312
EU NTA MAC SPEC
main77830-60020i202105-202312
EXHAUST EMISSION CONTROL-EURO 4
77840ATUBE ASSY, UREA W/HEATER
main77840-60020i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
main77840-60020i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77840-60020i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77840-60020i201708-202106
EU NTA MAC SPEC
main77840-60020i201708-202106
EXHAUST EMISSION CONTROL-EURO 4
main77840-60020i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77840-60030i202106-202312
EU NTA MAC SPEC
main77840-60030i202106-202312
EXHAUST EMISSION CONTROL-EURO 4
77844ARETAINER, UREA PUMP GAGE
main77844-60010i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
main77844-60010i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77844-60010i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77844-60010i201708-202106
EU NTA MAC SPEC
main77844-60010i201708-202106
EXHAUST EMISSION CONTROL-EURO 4
main77844-60010i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
77861ABRACKET, UREA TANK, NO.1
main77861-60010i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
main77861-60010i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77861-60010i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77861-60010i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77861-60010i201708-202312
EU NTA MAC SPEC
main77861-60010i201708-202312
EXHAUST EMISSION CONTROL-EURO 4
77862ABRACKET, UREA TANK, NO.2
main77862-60010i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
main77862-60010i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77862-60010i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77862-60010i201708-202106
EU NTA MAC SPEC
main77862-60010i201708-202106
EXHAUST EMISSION CONTROL-EURO 4
main77862-60010i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77862-60020i202106-202312
EU NTA MAC SPEC
main77862-60020i202106-202312
EXHAUST EMISSION CONTROL-EURO 4
77871APUMP, UREA
main77870-60010i202106-202312
EU NTA MAC SPEC&VX PACKAGE
sub77870-0K011
main77870-60010i202106-202312
EU NTA MAC SPEC&VX-L PACKAGE
sub77870-0K011
main77870-60010i202106-202312
EU NTA MAC SPEC&VX-L PACKAGE&STEERING SWITCH-AUDIO & TEL & VOICE & *MID
sub77870-0K011
main77870-60010i202106-202312
EU NTA MAC SPEC&VX-L PACKAGE&STEERING SWITCH-AUDIO & TELEPHONE & *MID
sub77870-0K011
main77870-60010i202106-202312
EU NTA MAC SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
sub77870-0K011
main77870-60010i202106-202312
EU NTA MAC SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
sub77870-0K011
main77870-60010i202106-202312
EU NTA MAC SPEC&SPEEDOMETER-ANALOG(KM/H)
sub77870-0K011
main77870-60010i202106-202312
STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
sub77870-0K011
main77870-60010i202106-202312
MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
sub77870-0K011
main77870-60010i202106-202312
MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
sub77870-0K011
main77871-0K010i201708-202106
EU NTA MAC SPEC&VX-L PACKAGE&STEERING SWITCH-AUDIO & TELEPHONE & *MID
main77871-0K010i201708-202106
EU NTA MAC SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
main77871-0K010i201708-202106
EU NTA MAC SPEC&SPEEDOMETER-ANALOG(KM/H)
main77871-0K010i201708-202106
STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
main77871-0K010i201708-202106
EXHAUST EMISSION CONTROL-EURO 4
main77871-0K010i201708-202106
MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
main77871-0K010i201708-202106
MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)
main77871-0K010i201708-202106
EU NTA MAC SPEC
main77871-0K010i201708-202106
EU NTA MAC SPEC&VX PACKAGE
main77871-0K010i201708-202106
EU NTA MAC SPEC&VX-L PACKAGE
main77871-0K010i201708-202106
EU NTA MAC SPEC&VX-L PACKAGE&STEERING SWITCH-AUDIO & TEL & VOICE & *MID
main77871-0K010i201708-202106
EU NTA MAC SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)
main77871-0K010i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77871-0K010i202008-202106
UKRAINE SPEC&ENGINE-FOR EURO 6C CONFORMITY&SPEEDOMETER-OPTITRON(KM/H)
main77871-0K010i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
main77871-0K010i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77871-0K010i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77871-0K010i201708-202008
UKRAINE SPEC&SPEEDOMETER-OPTITRON(KM/H)
77900PIPE ASSY, UREA TANK FILLER W/SUPPORT
main77900-60010i201708-202105
EXHAUST EMISSION CONTROL-EURO 4
sub77900-60011
sub77830-60020
main77900-60010i201708-202105
EU NTA MAC SPEC
sub77900-60011
sub77830-60020
main77900-60010i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
sub77900-60011
sub77830-60020
main77900-60010i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
sub77900-60011
sub77830-60020
main77900-60010i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
sub77900-60011
sub77830-60020
main77900-60010i201806-202105
EXHAUST EMISSION CONTROL-EURO6 D
sub77900-60011
sub77830-60020
main77900-60011i202105-202312
EXHAUST EMISSION CONTROL-EURO 4
main77900-60011i202105-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77900-60011i202105-202312
EU NTA MAC SPEC
77903ATUBE SUB-ASSY, UREA TANK BREATHER
main77903-60020i201708-202312
EXHAUST EMISSION CONTROL-EURO 4
main77903-60020i201708-202312
EU NTA MAC SPEC
main77903-60020i201806-202106
EXHAUST EMISSION CONTROL-EURO6 D
main77903-60020i201708-202011
EXHAUST EMISSION CONTROL-EURO 5
main77903-60020i201708-201912
EXHAUST EMISSION CONTROL-EURO 3 & 4 WITHOUT(ON BOARD DIAGNOSIS)
main77903-60020i201708-201806
EXHAUST EMISSION CONTROL-EURO 6
9011908C43
main90119-08C43
9017908119
main90179-08119
90301W0004
main90301-W0004
9167380616
main91673-80616
9167480822
main91674-80822

21 parts on this diagram · 2 diagrams in section

UREA TANK & TUBE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
