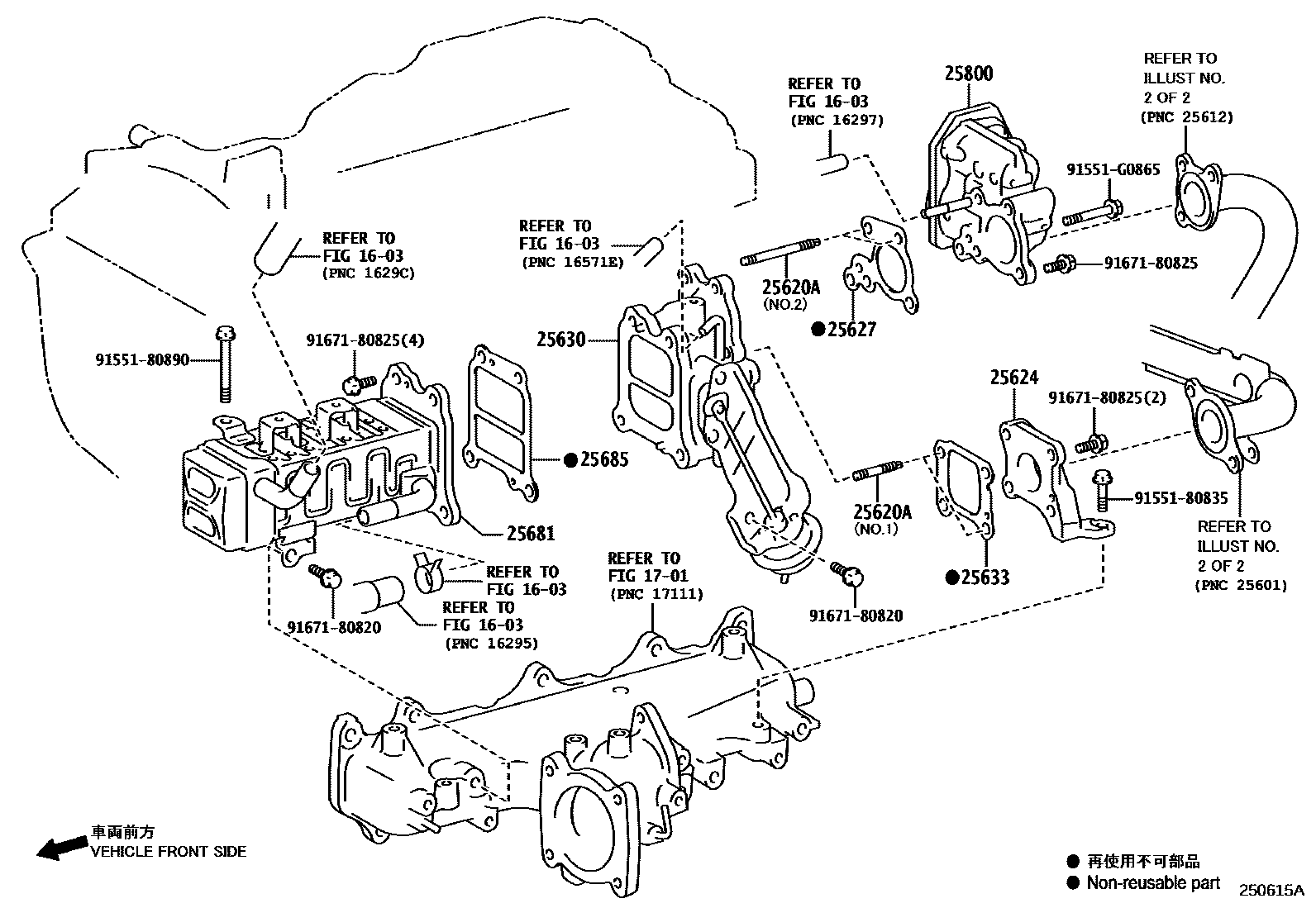

EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i¥80201708-202312

NO.1

main90126-08064i¥120201708-202312

NO.2

25624ADAPTER, EGR VALVE

main25611-30010i201708-202007

main25624-11010i¥2,240201708-202312

25627GASKET, EGR VALVE

main25627-11050i¥270201708-202312

main25627-30010i¥240201708-201907

main25627-30060i¥270201908-202007

25630VALVE ASSY, EGR, NO.2

main25630-11010i¥42,200201708-202006

main25630-11011i¥35,100202006-202202

main25630-11012i¥31,900202203-202312

main25630-30020i201708-202007

25633GASKET, EGR VALVE

main25633-11010i¥410201708-202312

25681COOLER, EGR, NO.1

main25681-0E010i¥33,500201708-202312

main25681-0E010i¥33,500202106-202312

EXHAUST EMISSION CONTROL-EURO 4&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)

main25681-0W020i¥33,500201806-202312

25685GASKET, EGR COOLER, NO.1

main25685-11010i¥410201708-202312

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-11010i¥20,200201708-202312

main25800-30190i201708-202007

9155180835

9155180890

91551G0865

9167180820

9167180825

15 parts on this diagram · 5 diagrams in section
