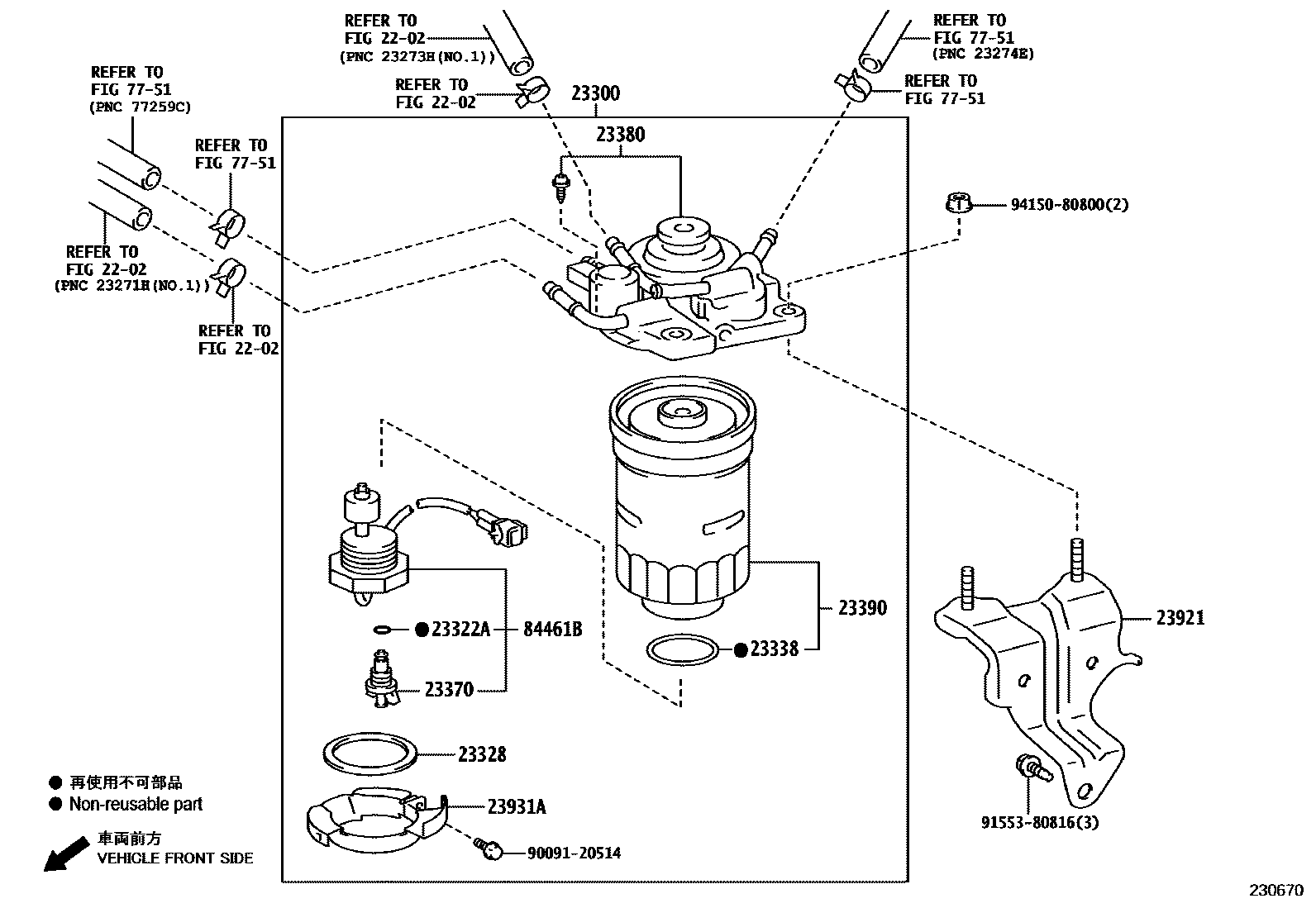

FUEL FILTER

0001 1 0002 1PRESSURIZED FUEL FILTER 0003 1

2202

23300FILTER ASSY, FUEL

main23300-30340i1GDFTV..GDJ15#201708-202212

sub23300-30341

main23300-30341i1GDFTV..GDJ15#202301-202312

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1KDFTV..KDJ150201708-202301

main23385-30340i1GDFTV..GDJ15#202301-202312

23328GASKET(FOR FUEL FILTER)

main23385-30160i1KDFTV..KDJ150201708-202312

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1KDFTV..KDJ150201708-202301

main23385-11320i1GDFTV..GDJ15#202301-202312

23370COCK ASSY, FUEL FILTER DRAIN

main23370-30010i1KDFTV..KDJ150201708-202312

23380CAP ASSY, FUEL FILTER

main23380-30301i1KDFTV..KDJ150201708-202007

main23380-30340i1GDFTV..GDJ15#201708-202301

main23380-30420i1GDFTV..GDJ15#202301-202312

23390ELEMENT ASSY, FUEL FILTER

main23390-30340i1GDFTV..GDJ15#201708-202301

sub23390-30341

main23390-30341i1GDFTV..GDJ15#202301-202312

main23390-36760i1KDFTV..KDJ150201708-202007

23921SUPPORT, FUEL FILTER

main23921-30070i1KDFTV..KDJ150201708-202312

23931ACOVER, FUEL FILTER

main23931-26031i1KDFTV..KDJ150201708-202312

7751

84461BSWITCH, LEVEL WARNING

main84461-60101iKDJ150201708-201910

sub84461-60102

main84461-60102iKDJ150201910-202301

main84461-60120iGDJ15#202301-202312

9009120514

main90091-20514

9155380816

main91553-80816

9415080800

main94150-80800

15 parts on this diagram · 3 diagrams in section
