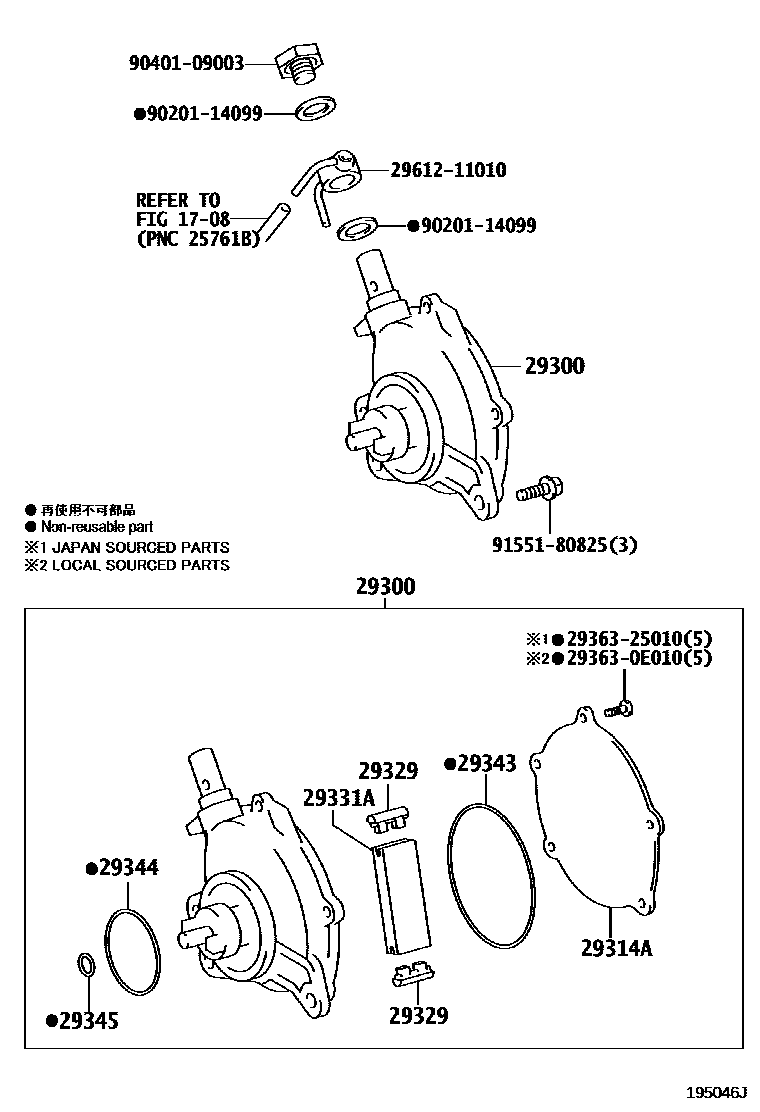

VACUUM PUMP
1708
29300PUMP ASSY, VACUUM
29314ACOVER, END
(L)
(J)
29329CAP, VACUUM PUMP VANE
(L)
(J)
29331BLADE, VACUUM PUMP, A
29331AVANE, VACUUM PUMP
(L)
(J)
29343RING, O VACUUM PUMP, NO.1
(L)
(J)
29344RING, O VACUUM PUMP, NO.2
(L)
(J)
29345RING, O VACUUM PUMP, NO.3
(L)
(J)
293630E010SCREW, HOLLOW VACUUM PUMP
2936325010SCREW, HOLLOW VACUUM PUMP
2961211010CONNECTOR, VACUUM PUMP
9020114099
9040109003
9155180825
15 parts on this diagram · 2 diagrams in section
