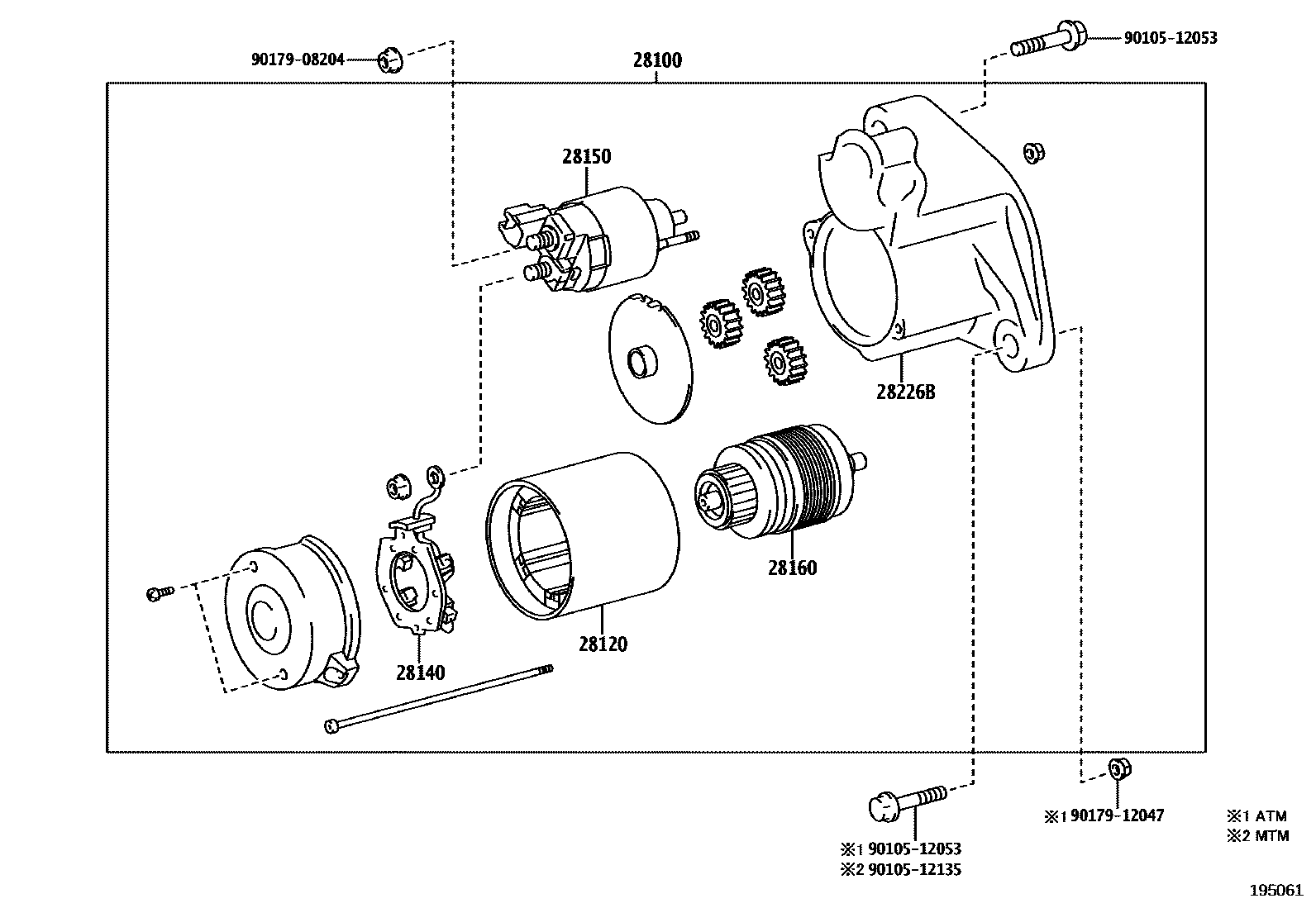

STARTER

0001 112V 2.0KW 0002 112V 2.7KW 0003 112V 1.4KW 0004 112V 2.2KW 0005 112V 2.0KW 0006 112V 2.4KW

28100STARTER ASSY

main28100-11190i1GDFTV..GDJ15#..6F201708-202312

12V 2.0KW

main28100-30051i1GDFTV..GDJ15#..6F201708-202312

12V 2.7KW,COLD AREA SPEC

main28100-30051i1GDFTV..GDJ150..RUS201708-202312

12V 2.7KW

main28100-30111i1GDFTV..GDJ15#..6FC..EUR202008-202312

12V 2.4KW

main28100-31131i1GRFE..GRJ150201708-202312

12V 1.4KW

main28100-67052i1KDFTV..KDJ150201708-202007

12V 2.2KW

main28100-75120i2TRFE..TRJ150201708-202312

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-0L180i1GDFTV..GDJ15#..6F201708-202312

main28120-54380i2TRFE..TRJ150201708-202312

main28120-64040i1KDFTV..KDJ150201708-202007

main28120-66040i1GRFE..GRJ150201708-202312

main28120-67020i1GDFTV..GDJ150..RUS201708-202312

COLD AREA SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-0L180i1GDFTV..GDJ15#..6FC..EUR201708-202312

main28140-35060i1GRFE..GRJ150201708-202312

main28140-54380i2TRFE..TRJ150201708-202312

main28140-64040i1KDFTV..KDJ150201708-202007

main28140-77090i1GDFTV..GDJ150..RUS201708-202312

COLD AREA SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-30050i1GDFTV..GDJ150..RUS201708-202312

COLD AREA SPEC

main28150-31130i1GRFE..GRJ150201708-202312

main28150-40090i1GDFTV..GDJ15#..6F201708-202312

main28150-67050i1KDFTV..KDJ150201708-202007

main28150-75120i2TRFE..TRJ150201708-202312

28160ARMATURE ASSY, STARTER

main28160-37100i1GDFTV..GDJ15#..6FC..EUR201708-202312

main28160-54140i1GDFTV..GDJ150..RUS201708-202312

COLD AREA SPEC

main28160-64041i1KDFTV..KDJ150201708-202007

main28160-74070i1GRFE..GRJ150201708-202312

main28160-75120i2TRFE..TRJ150201708-202312

28226BSTARTER KIT, REPAIR SERVICE

main28226-0L180i1GDFTV..GDJ15#..6FC..EUR201708-202312

9010512053

main90105-12053

9010512135

main90105-12135

9017908204

main90179-08204

9017912047

main90179-12047

10 parts on this diagram · 6 diagrams in section
