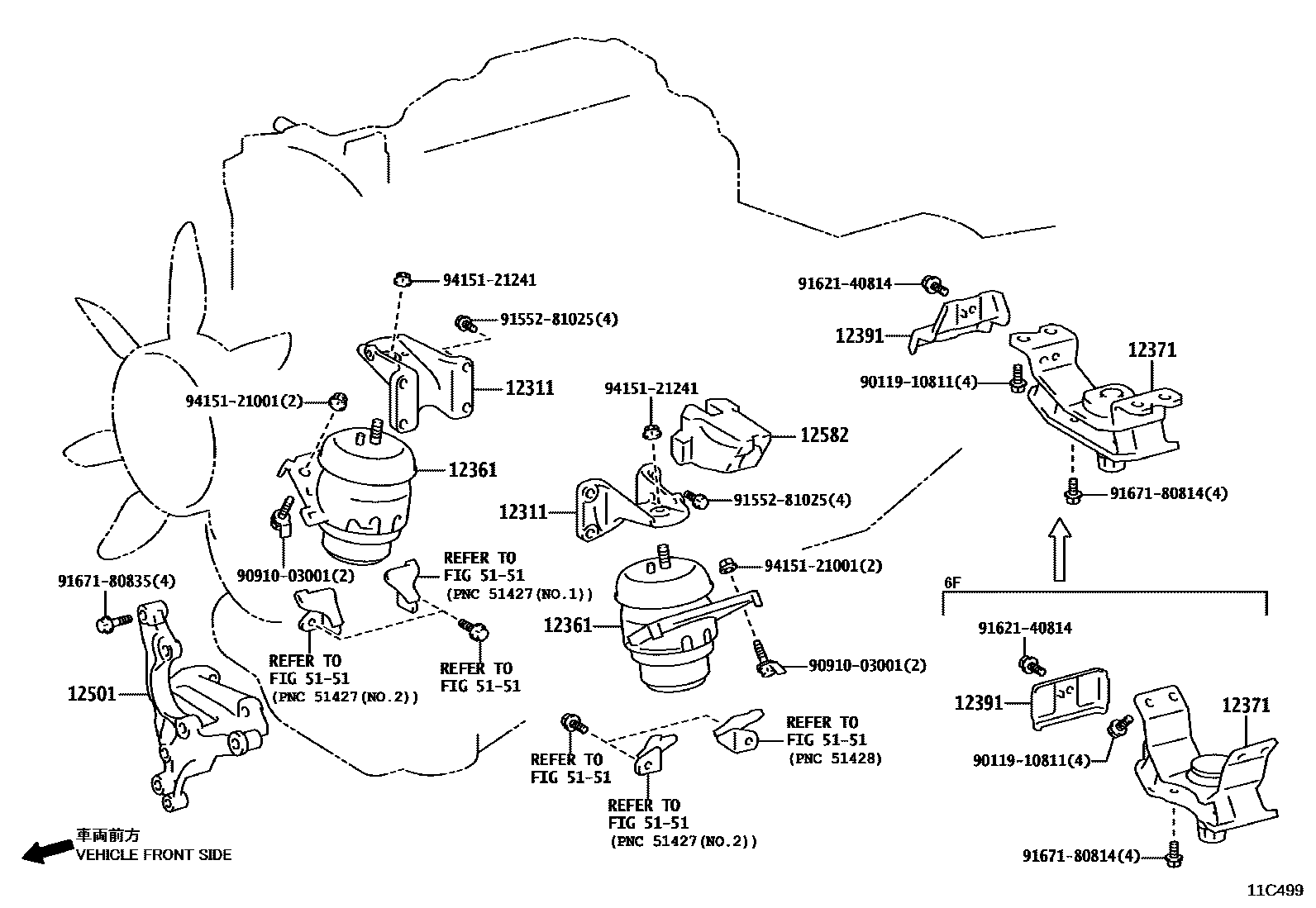

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30061i1KDFTV..KDJ150201708-202312

main12311-31021i1GRFE..GRJ150201708-202312

main12311-75090i2TRFE..TRJ150201708-202312

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-30142i1KDFTV..KDJ150201708-201802

sub12361-30143

main12361-30143i1KDFTV..KDJ150201803-202312

main12361-31290i1GRFE..GRJ150201708-202312

main12361-75071i2TRFE..TRJ150201708-202312

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-11620i1GDFTV..GDJ15#..6FC201708-202312

main12371-11630i1GDFTV..GDJ15#..6F201708-202312

main12371-30080i1KDFTV..KDJ150..6F201708-202007

main12371-30090i1KDFTV..KDJ150..5FC201708-202007

main12371-31370i1GRFE..GRJ150201708-202312

main12371-75160i2TRFE..TRJ150..5F201708-202312

main12371-75190i2TRFE..TRJ150..6FC201708-202312

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-31040i1GRFE..GRJ150201708-202312

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-11011i1GDFTV..GDJ15#201708-201811

sub12501-11012

main12501-11012i1GDFTV..GDJ15#201812-202312

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-11020i1GDFTV..GDJ15#201708-202312

main12582-30050i1KDFTV..KDJ150201708-202007

5151

9011910811

main90119-10811

9091003001

main90910-03001

9155281025

main91552-81025

9162140814

main91621-40814

9167180814

main91671-80814

9167180835

main91671-80835

9415121001

main94151-21001

9415121241

main94151-21241

15 parts on this diagram · 5 diagrams in section
