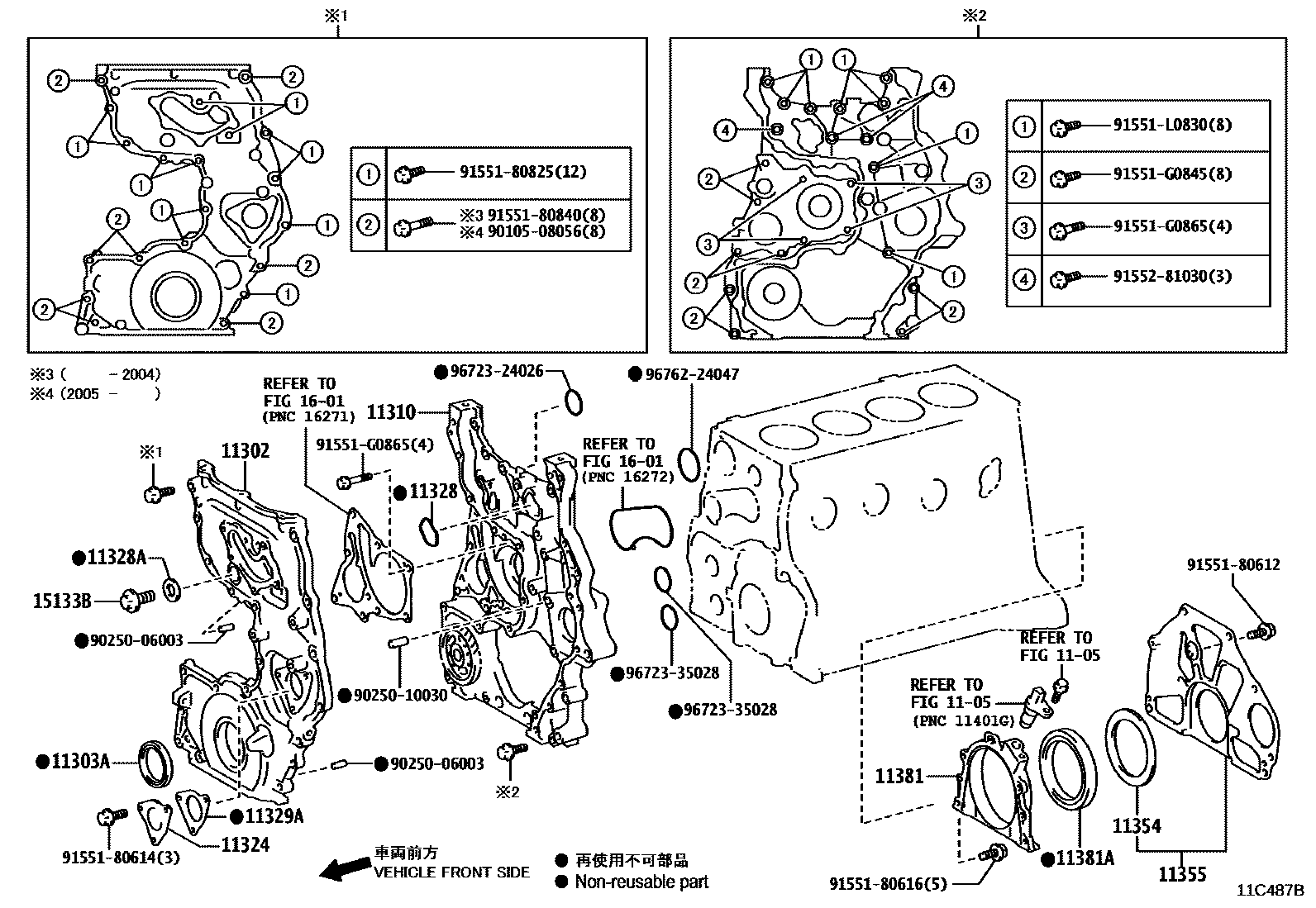

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1105

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31030i1GRFE..GRJ150201708-202312

main11310-75090i2TRFE..TRJ150201708-202312

main11321-11120i1GDFTV..GDJ15#201708-202306

sub11321-35040

main11321-35040i1GDFTV..GDJ15#202307-202312

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-50051i1GDFTV..GDJ15#201708-202312

11310COVER ASSY, TIMING CHAIN

main11310-11041i1GDFTV..GDJ15#201708-202008

sub11310-35120

main11310-11050i1GDFTV..GDJ15#202008-202312

11324PLATE, TIMING CHAIN COVER

main11324-11010i1GDFTV..GDJ15#201708-202312

main11324-31020i1GRFE..GRJ150201708-202312

main11324-75010i2TRFE..TRJ150201708-202312

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-11070i1GDFTV..GDJ15#201708-202312

main11328-31030i1GRFE..GRJ150201708-202312

main11328-75030i2TRFE..TRJ150201708-202312

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i1GDFTV..GDJ15#201911-202312

main11328-38030i1GDFTV..GDJ15#201708-201910

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-11020i1GDFTV..GDJ15#201708-202312

11354SEAL, FLYWHEEL HOUSING DUST

main11354-30010i1KDFTV..KDJ150201708-202312

main12145-75010i2TRFE..TRJ150201708-202312

11355PLATE, REAR END

main11355-11040i1GDFTV..GDJ15#..6F201708-202312

main11355-11050i1GDFTV..GDJ15#..6F201803-202312

main11355-67011i1KDFTV..KDJ150201708-202007

main11355-75021i2TRFE..TRJ150201708-202312

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0K010i1KDFTV..KDJ150201708-202007

main11381-11010i1GDFTV..GDJ15#201708-202312

main11381-31010i1GRFE..GRJ150201708-202312

main11381-75012i2TRFE..TRJ150201708-202312

11381ASEAL, ENGINE REAR OIL

main90311-88006i2TRFE..TRJ150201708-202312

main90311-95015i1KDFTV..KDJ150201708-202312

main90311-99010i1GRFE..GRJ150201708-202312

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i1GDFTV..GDJ15#201708-202312

1601

9010508056

main90105-08056

9025006003

main90250-06003

9025010030

main90250-10030

9155180612

main91551-80612

9155180614

main91551-80614

9155180616

main91551-80616

9155180825

main91551-80825

9155180840

main91551-80840

91551G0845

main91551-G0845

91551G0865

main91551-G0865

91551L0830

main91551-L0830

9155281030

main91552-81030

9672324026

main96723-24026

9672335028

main96723-35028

9676224047

main96762-24047

29 parts on this diagram · 6 diagrams in section
