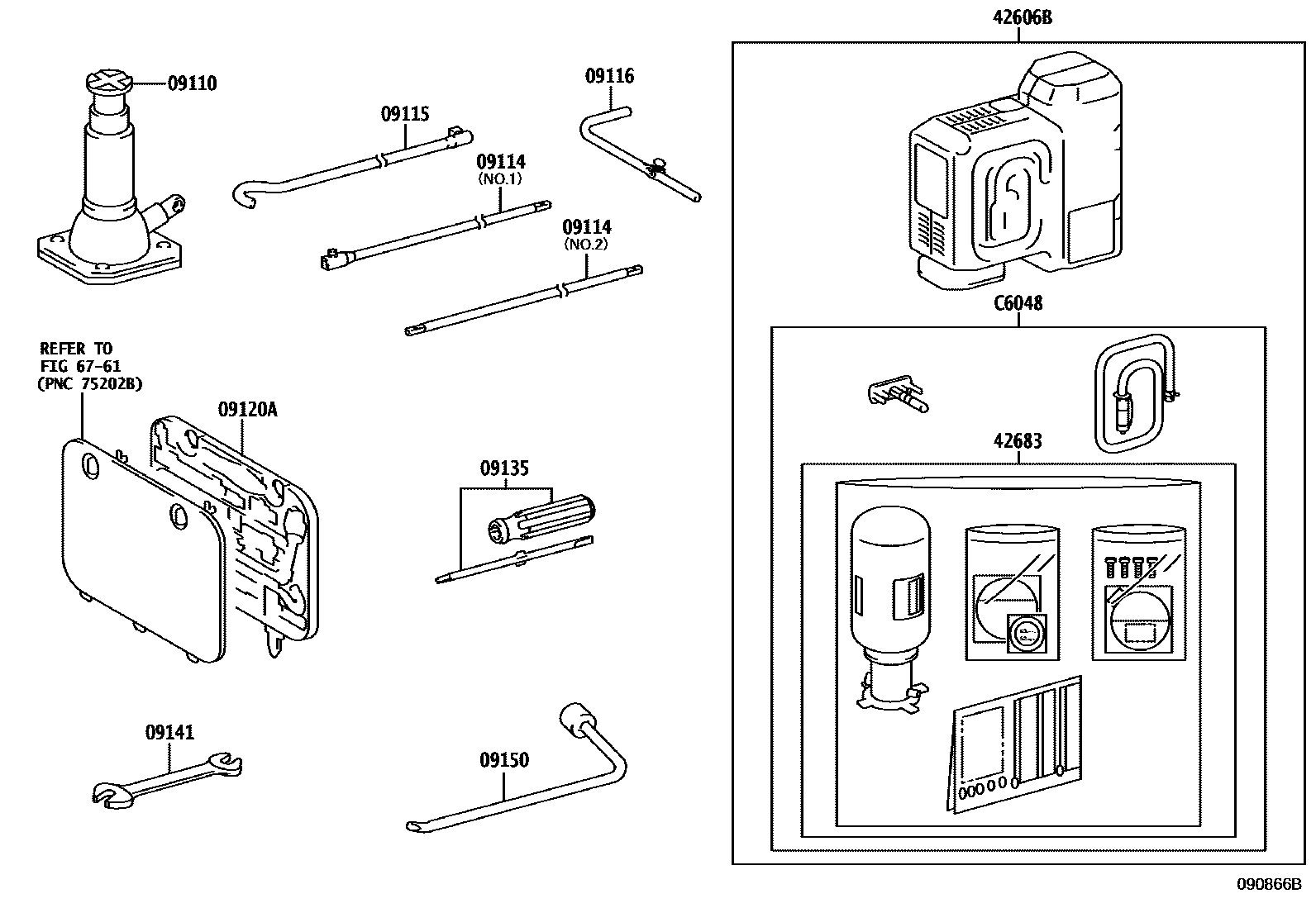

STANDARD TOOL

09110JACK ASSY

main09111-60131iGDJ15#,GRJ150,KDJ150,TRJ150201708-202108

main09111-60132iGDJ15#,GRJ150,TRJ150202109-202312

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

NO.2

main09114-35050iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

09116LEVER, JACK HANDLE

main09116-35080iGDJ15#,GRJ150,KDJ150,TRJ150201708-201709

main09116-60020iGDJ15#,GRJ150,KDJ150,TRJ150201709-202208

09120ACASE, TOOL

main09120-60220iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

09135DRIVER, SCREW

main09135-50060iGDJ15#,GRJ150,KDJ150,TRJ150201708-202312

09141SPANNER

main99914-11214iGDJ155201708-202312

12 X 14

09150WRENCH, HUB NUT BOX

main09150-60040iKDJ150..RHD;GDJ15#,GRJ150,TRJ150201708-202208

TOOL(PLANT INSTALL)-WITHOUT,TYPE A:REFER ILLUST.

42606BREPAIR KIT, TUBELESS TIRE

main42606-60022iGDJ15#..EUR201708-202108

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

main42606-60023iGDJ150..EUR202109-202312

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

42683SEAL, TIRE REPAIR

main42683-60012iGDJ150..EUR201708-202312

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

6761

C6048REPAIR SET, TIRE

mainC604860012iGDJ150..EUR201708-202312

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

12 parts on this diagram · 1 diagram in section
