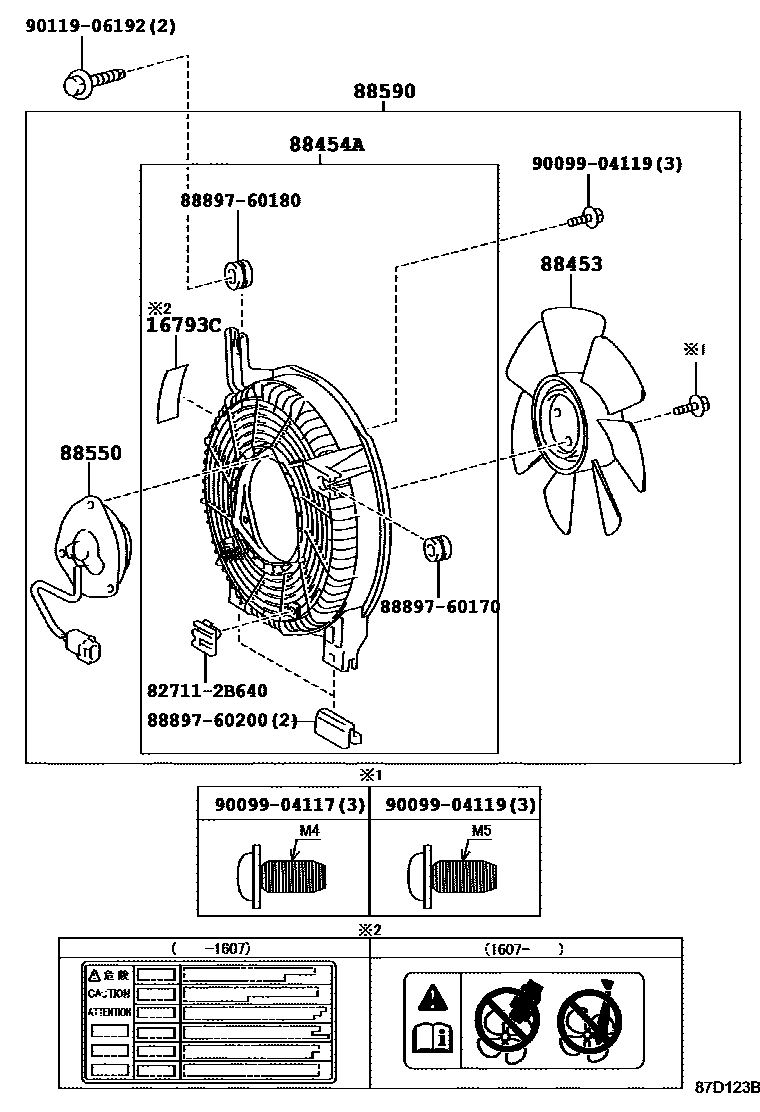

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1W(CONDENSER FAN) 0002 1FRONT 0003 1FRONT(W(RR AIC)) 0004 1FRONT(W(C/B)) 0005 1FRONT(Q/J & W/O(REAR)) 0007 1FRONT(B/J & W/O(REAR)) 0009 1FRONT(Q/J & W(RR AIC)) 0011 1FRONT(B/J & W(RR AIC)) 0013 1FRONT(Q/J & W(C/B)) 0015 1FRONT(B/J & W(C/B)) 0017 1FRONT(Q/J & *COS) 0018 1FRONT(B/J & *COS) 0019 1FRONT(Q/J & *COS & W(RR AIC))0020 1FRONT(B/J & *COS & W(RR AIC))0021 1FRONT(Q/J & *COS & W(C/B)) 0022 1FRONT(B/J & *COS & W(C/B)) 0023 1FRONT(MOROCCO SPEC & *COS) 0024 1FRONT(MOROCCO SPEC) 0025 1FRONT 0026 1FRONT 0027 1FRONT(W(REAR *AIC)) 0028 1FRONT(W(REAR *AIC)) 0029 1FRONT(W(COOL BOX)) 0030 1FRONT(W(COOL BOX)) 0031 1REAR(W/O(REAR *AIC) & W(COOL 0032 1REAR(W(REAR *AIC) & W(COOL BO0033 1REAR(W(REAR *AIC) & W/O(COOL

16793CLABEL, COOLING FAN CAUTION

main16793-31070i1GDFTV,1KDFTV..GDJ15#,KDJ150201607

AIR CONDITIONER-DUAL(AUTO)

main16793-38010i1GRFE..GRJ150201506-201607

AIR CONDITIONER-DUAL(AUTO)

sub16793-31070

88453FAN, COOLING (FOR CONDENSER)

main88453-60030iGDJ15#,KDJ150201506-201607

88454ASHROUD, FAN

main88454-60071iKDJ155201506-201607

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-34010iKDJ155201506-201607

88590BLOWER ASSY, W/SHROUD

main88590-60101iKDJ155201506-201607

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8889760170VALVE, COOLER MAGNET

main88897-60170

8889760180VALVE, COOLER MAGNET

main88897-60180

8889760200VALVE, COOLER MAGNET

main88897-60200

9009904117

main90099-04117

9009904119

main90099-04119

9011906192

main90119-06192

12 parts on this diagram · 27 diagrams in section
