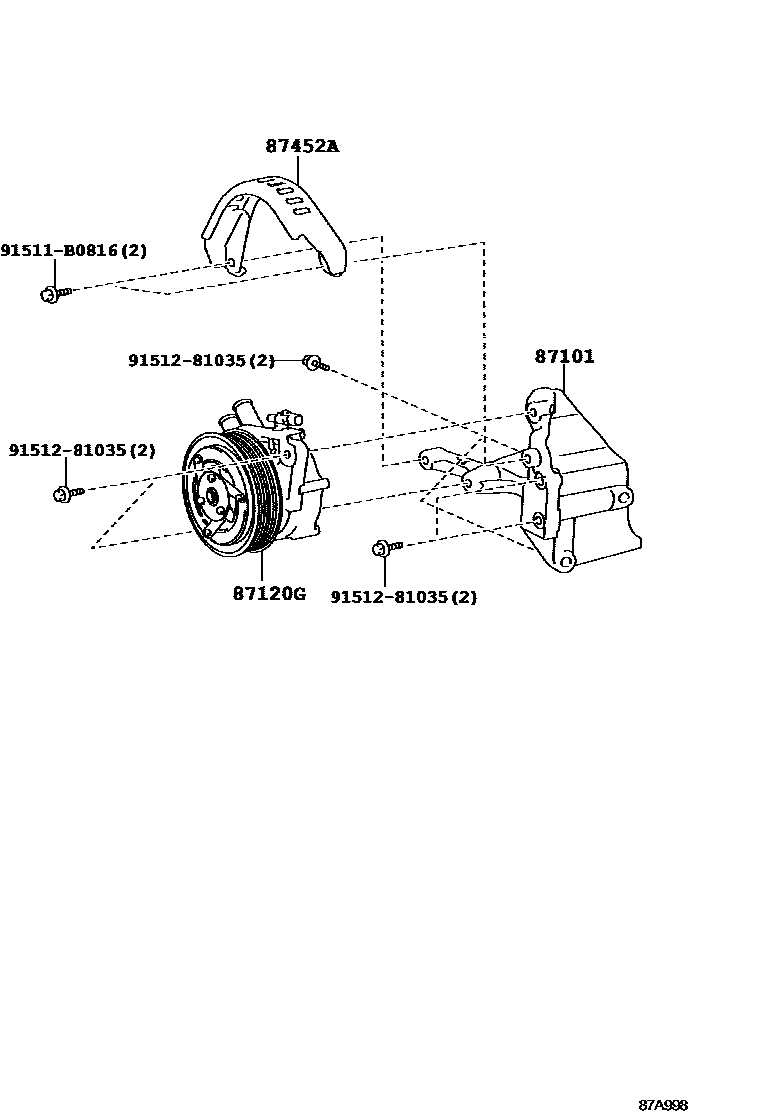

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87101BRACKET SUB-ASSY, VISCOUS HEATER NO.1

main87101-35010

main87101-60020

87120GHEATER ASSY, VISCOUS W/MAGNET CLUTCH

87452ABRACKET, HEATER, FRONT

91511B0816

main91511-B0816

9151281035

main91512-81035

5 parts on this diagram · 2 diagrams in section
