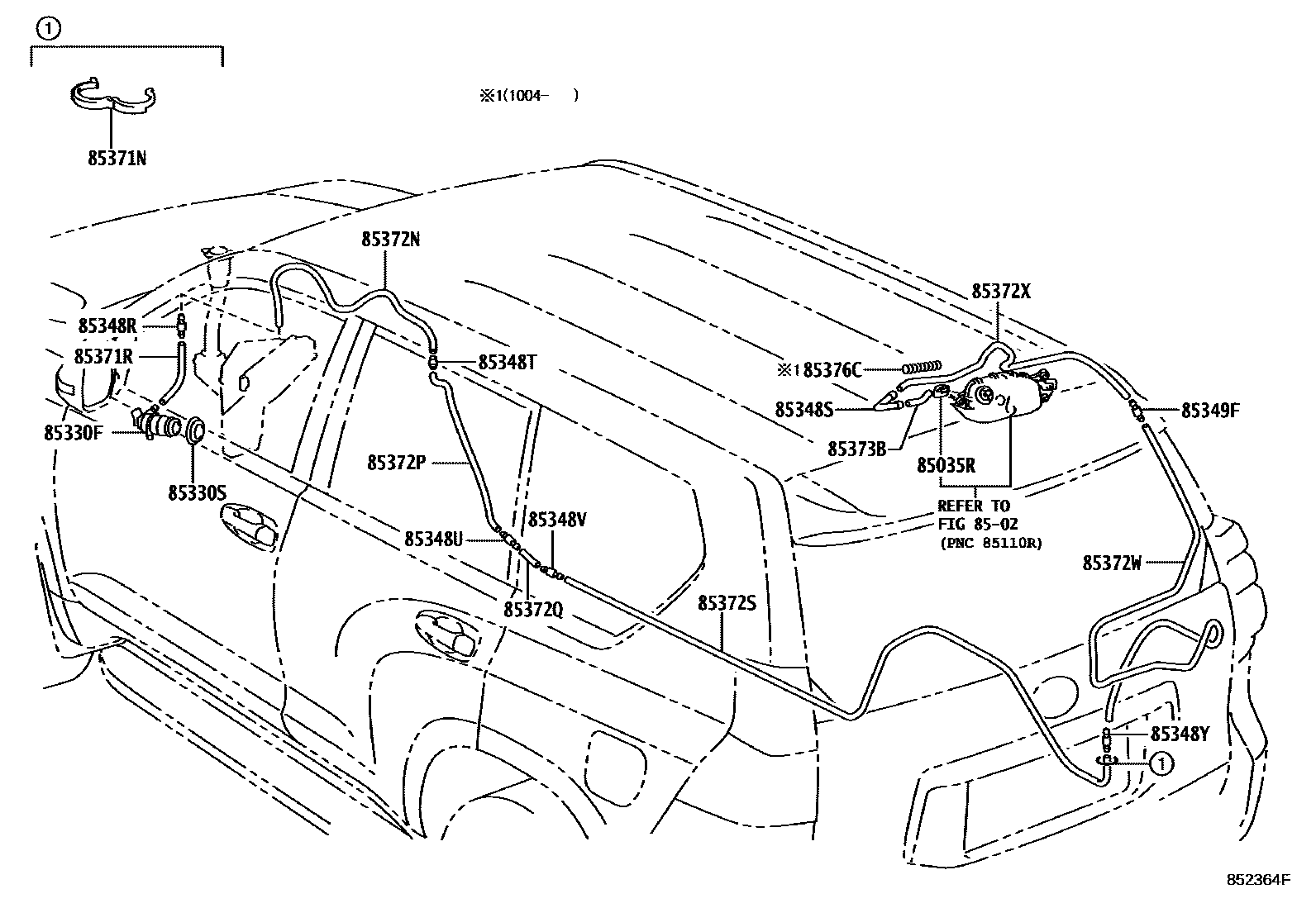

REAR WASHER
8502
85035RNOZZLE SUB-ASSY, REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
RUSSIA SPEC
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
SPARE TIRE-WITHOUT
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
SPARE TIRE-WITHOUT
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=240),HEADLAMP CLEANER-WITH
L=1450(*H,L=240)
L=1450(*H,L=240),COLD AREA SPEC
L=1450(*H,L=240),COLD AREA SPEC&HEADLAMP CLEANER-WITH
L=1450(*H,L=240),HEAD LAMP CLEANER-WITH
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1100)
L=1100
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=520)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=50)
L=1450(*H,L=50),SPARE TIRE-WITHOUT
L=50
L=50,SPARE TIRE-WITHOUT
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3300(*H,L=3250)
L=3300(*H,L=2850)
L=3300(*H,L=2850),SPARE TIRE-WITHOUT
L=2850
L=2850,SPARE TIRE-WITHOUT
L=3250
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1750
L=1810
L=1750,SPARE TIRE-WITHOUT
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=470)
L=1450(*H,L=180)
L=1450(*H,L=470),SPARE TIRE-WITHOUT
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1450(*H,L=25)
L=1450(*H,L=380)
L=1450(*H,L=25),SPARE TIRE-WITHOUT
85376CSPRING, WASHER HOSE
SPARE TIRE-WITHOUT
21 parts on this diagram · 2 diagrams in section
