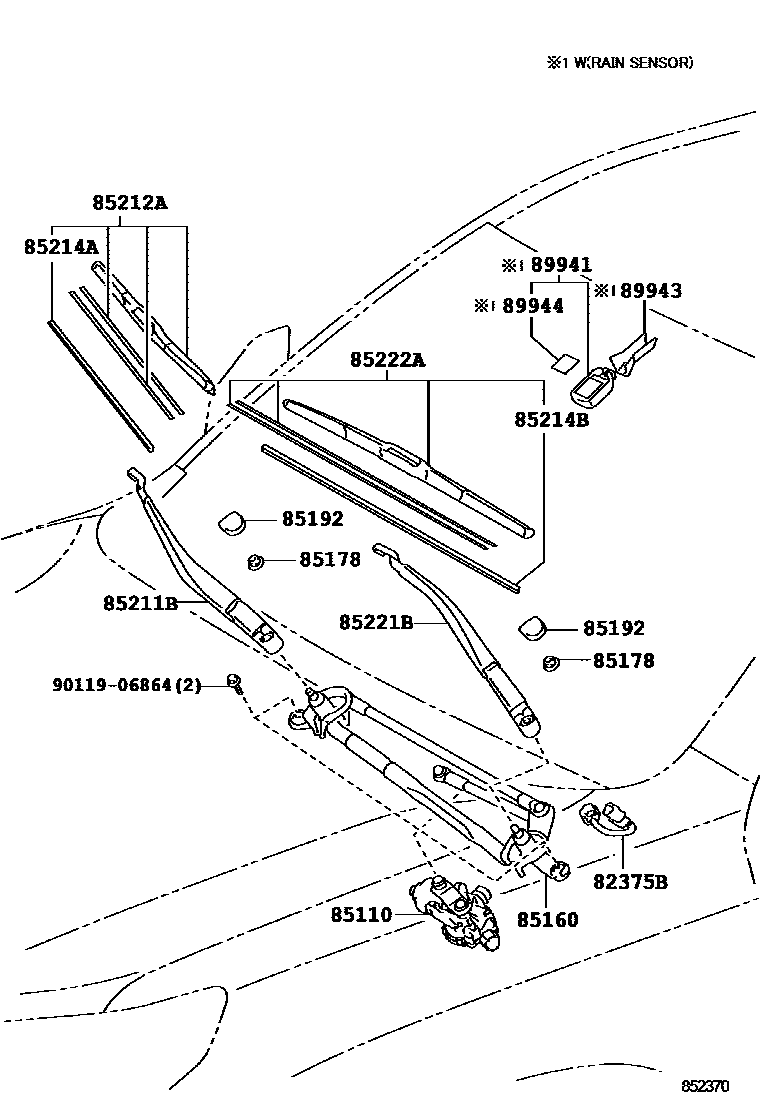

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-60010iKDJ15#;GRJ150..LHD¥1,000200908-201607

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60420iKDJ15#..RHD200908-201506

main85110-60440iGRJ150,KDJ15#..LHD200908-201607

85160LINK ASSY, WINDSHIELD WIPER

main85150-60350iGRJ150..RHD200908-201506

main85150-60370iGDJ15#,GRJ150,KDJ150..LHD200908-201607

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iGRJ150,KDJ15#¥80200908-201607

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iKDJ15#;GRJ150..LHD¥250200908-201607

85211BARM, FRONT WIPER, RH

main85211-60280iGRJ150,KDJ15#..RHD200908-201103

sub85211-60281

main85211-60281iGDJ15#,KDJ150..RHD201104-201308

main85211-60281iKDJ15#..RHD201410-201506

PNC 85212A=R65P

main85211-60281iKDJ15#..RHD201308-201410

PNC 85212A=RB3

main85211-60290iGRJ150,KDJ15#..LHD200908-201005

main85211-60300iGRJ150,KDJ15#..LHD¥5,100201006-201410

main85211-60310iKDJ155201410-201607

85212ABLADE, FR WIPER, RH

main85212-48120iGRJ150..RHD¥4,720200908-201308

sub85212-60220¥4,290

main85212-48120iKDJ15#..RHD¥4,720201308-201410

MARK=RB3

sub85212-60220¥4,290

main85212-53081iGRJ150,KDJ15#..LHD¥2,640200908-201410

main85212-60210iKDJ155¥2,640201410-201607

main85212-60220iKDJ15#..RHD¥4,290201410-201506

MARK=R65P

main85212-60220iGDJ15#,KDJ150..RHD¥4,290201506

85214ARUBBER, WIPER, RH

main85214-52110iGDJ15#,KDJ150..RHD¥900201410-201506

main85214-53090iGRJ150,KDJ15#..LHD¥800200908-201410

main85214-60120iGRJ150,KDJ15#..LHD¥800201410-201607

main85214-68020iKDJ15#..RHD¥900200908-201410

sub85214-52110¥900

85214BRUBBER, WIPER, LH

main85214-52110iGDJ15#,GRJ150,KDJ150..LHD¥900201410-201607

main85214-53090iGRJ150..RHD¥800200908-201410

main85214-60120iGDJ15#,KDJ150..RHD¥800201410-201506

main85214-68020iGRJ150,KDJ15#..LHD¥900200908-201410

sub85214-52110¥900

85221BARM, FRONT WIPER, LH

main85221-60300iGRJ150,KDJ15#..RHD¥5,100200908-201103

sub85221-60301¥5,100

main85221-60301iKDJ15#..RHD¥5,100201308-201410

PNC 85222A=RG0

main85221-60301iGRJ150..RHD¥5,100201104-201308

main85221-60310iGRJ150,KDJ15#..LHD200908-201005

main85221-60311iGRJ150,KDJ15#..LHD¥3,370201006-201607

main85221-60340iGDJ15#,KDJ150..RHD¥3,500201506

main85221-60340iKDJ15#..RHD¥3,500201410-201506

PNC 85222A=R50C

85222ABLADE, FR WIPER, LH

main85222-48130iGRJ150,KDJ15#..LHD¥4,720200908-201410

sub85222-60260¥4,290

main85222-53060iGRJ150..RHD¥2,910200908-201308

main85222-53060iKDJ15#..RHD¥2,910201308-201410

MARK=RG0

main85222-60260iKDJ155¥4,290201410-201607

main85222-60280iGDJ15#,KDJ150..RHD¥2,640201506

main85222-60280iKDJ15#..RHD¥2,640201410-201506

MARK=R50C

89941SENSOR, RAIN

main89941-48072iKDJ150..LHD..5FC;GDJ150,GRJ150..6FC¥16,600201506

VX PACKAGE

main89941-48072iKDJ150..LHD..5FC;GDJ150,GRJ150..6FC¥16,600201506

VX-L PACKAGE

89943COVER, RAIN SENSOR

main89943-33050iKDJ150..RHD¥1,400201506

VX PACKAGE

main89943-33050iKDJ150..RHD¥1,400201506

VX-L PACKAGE

89944TAPE, RAIN SENSOR

main89944-42010iKDJ150..RHD¥1,490201506

VX PACKAGE

main89944-42010iKDJ150..RHD¥1,490201506

VX-L PACKAGE

9011906864

main90119-06864¥80

15 parts on this diagram · 2 diagrams in section
