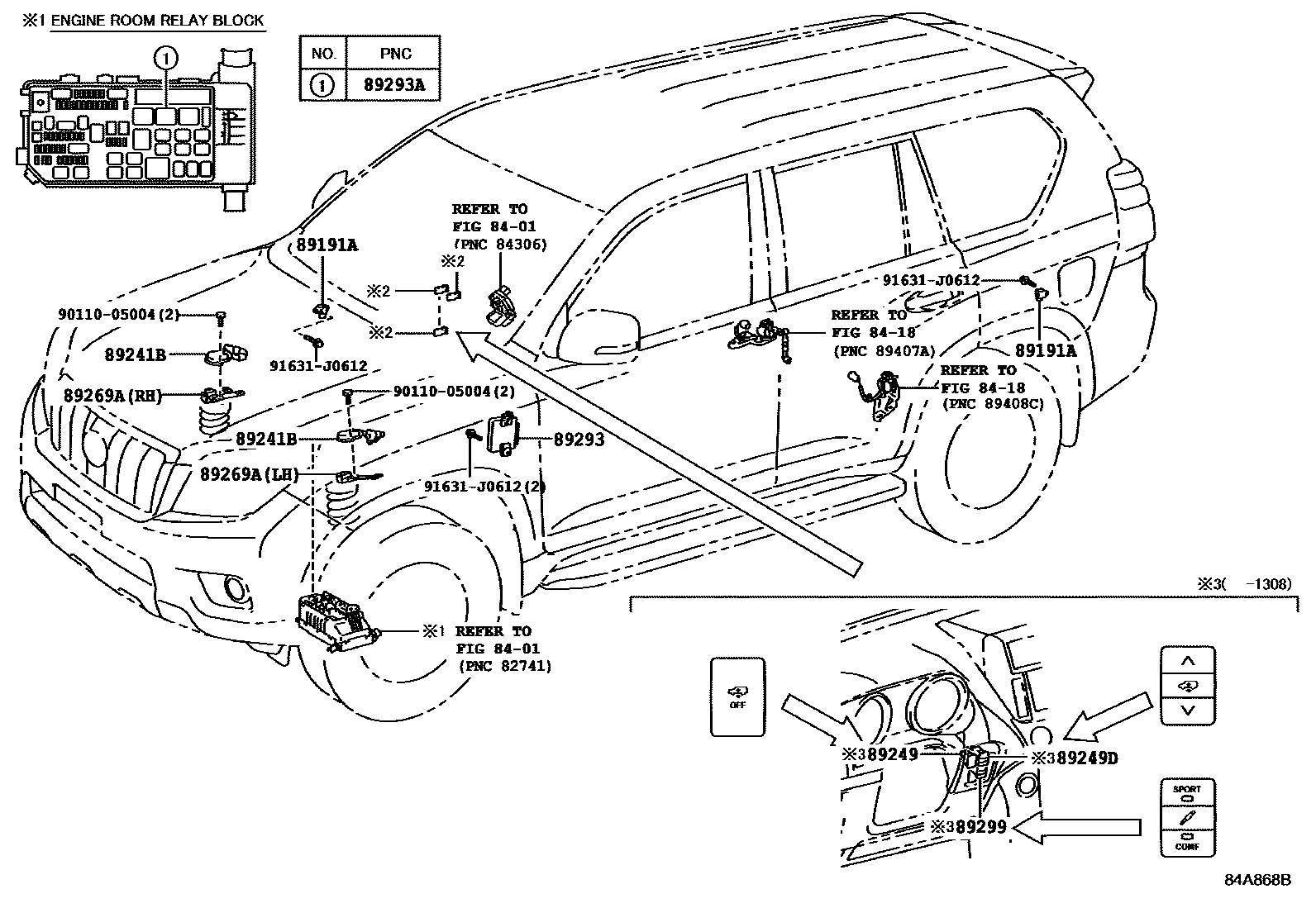

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

8401

8418

89191ASENSOR, ACCELERATION

main89191-22020iKDJ150..RHD201506

VX-L PACKAGE&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)

89241BACTUATOR, ABSORBER CONTROL

main89241-60010iKDJ150..RHD201506

VX-L PACKAGE&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)

89249SWITCH, ABSORBER CONTROL

main89249-60030

main89249-60040

89249DSWITCH, ABSORBER CONTROL NO.2

89269ABRACKET, SUSPENSION CONTROL

main89269-60010iKDJ150..RHD201506

RH

main89269-60010iKDJ150..RHD201506

VX-L PACKAGE&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION),RH

main89269-60020iKDJ150..RHD201506

LH

main89269-60020iKDJ150..RHD201506

VX-L PACKAGE&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION),LH

89293COMPUTER, SUSPENSION CONTROL

main89293-60103iKDJ150..RHD201506

VX-L PACKAGE&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)

89293ARELAY, SUSPENSION CONTROL

main90987-02025iKDJ150..RHD201506

MOROCCO SPEC&VX-L PACKAGE&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)

main90987-02025iKDJ150..RHD201506

VX-L PACKAGE&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)

89299SWITCH, SUSPENSION CONTROL

main89299-60080

9011005004

main90110-05004

91631J0612

main91631-J0612

12 parts on this diagram · 2 diagrams in section
