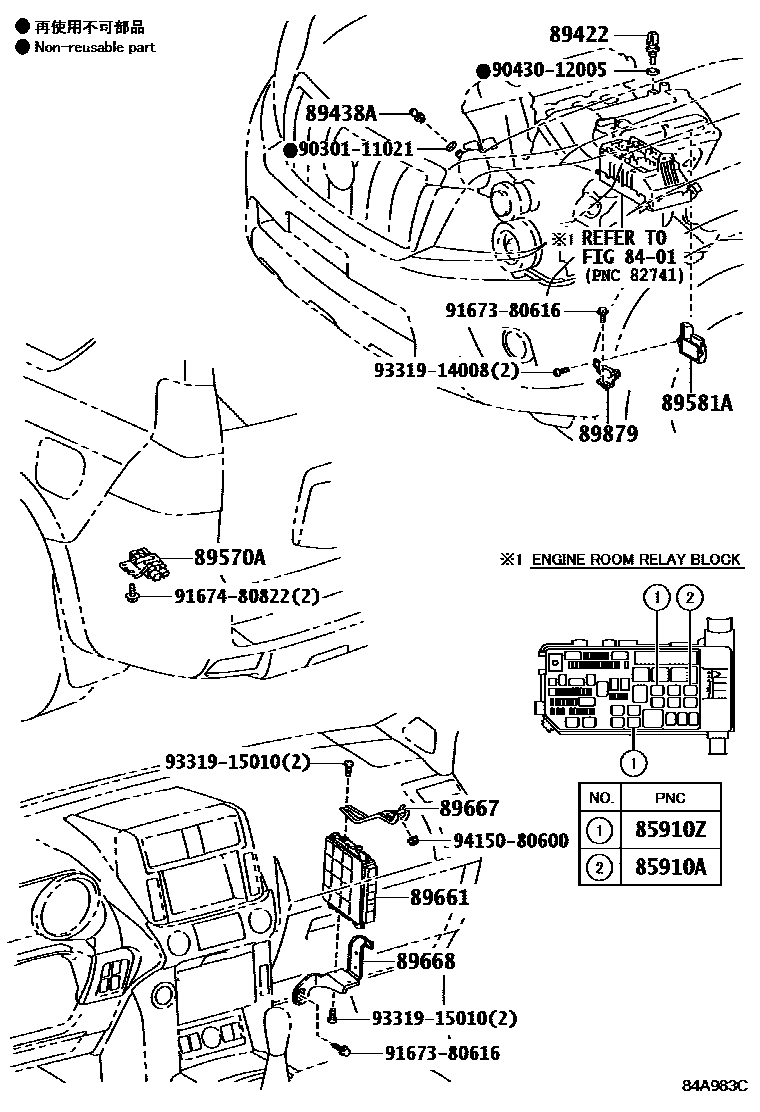

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iGRJ150..RHD200908-201506

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iGRJ150..RHD200908-201506

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGRJ150..RHD200908-201506

89438ASWITCH, POWER STEERING OIL PRESSURE

main89448-34020iGRJ150..RHD200908-201708

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60170iGRJ150..RHD200908-201506

89581ADRIVER, AIR INJECTION CONTROL

main89581-60010iGRJ150..RHD200908-201506

89661COMPUTER, ENGINE CONTROL

main89661-60L70iGRJ150..RHD200908-201210

main89661-60U00iGRJ150201210-201308

main89661-60V80iGRJ150201308-201506

main89666-60D00iGRJ150201506

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60270iGRJ150200908-201506

main89667-60280iGRJ150..RHD200908-201110

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60260iGRJ150..RHD200908-201110

main89668-60290iGRJ150..LHD200908-201506

89879BRACKET, INJECTOR DRIVER

main89589-60040iGRJ150..RHD200908-201506

9030111021

main90301-11021

9043012005

main90430-12005

9167380616

main91673-80616

9167480822

main91674-80822

9331914008

main93319-14008

9331915010

main93319-15010

9415080600

main94150-80600

18 parts on this diagram · 2 diagrams in section
