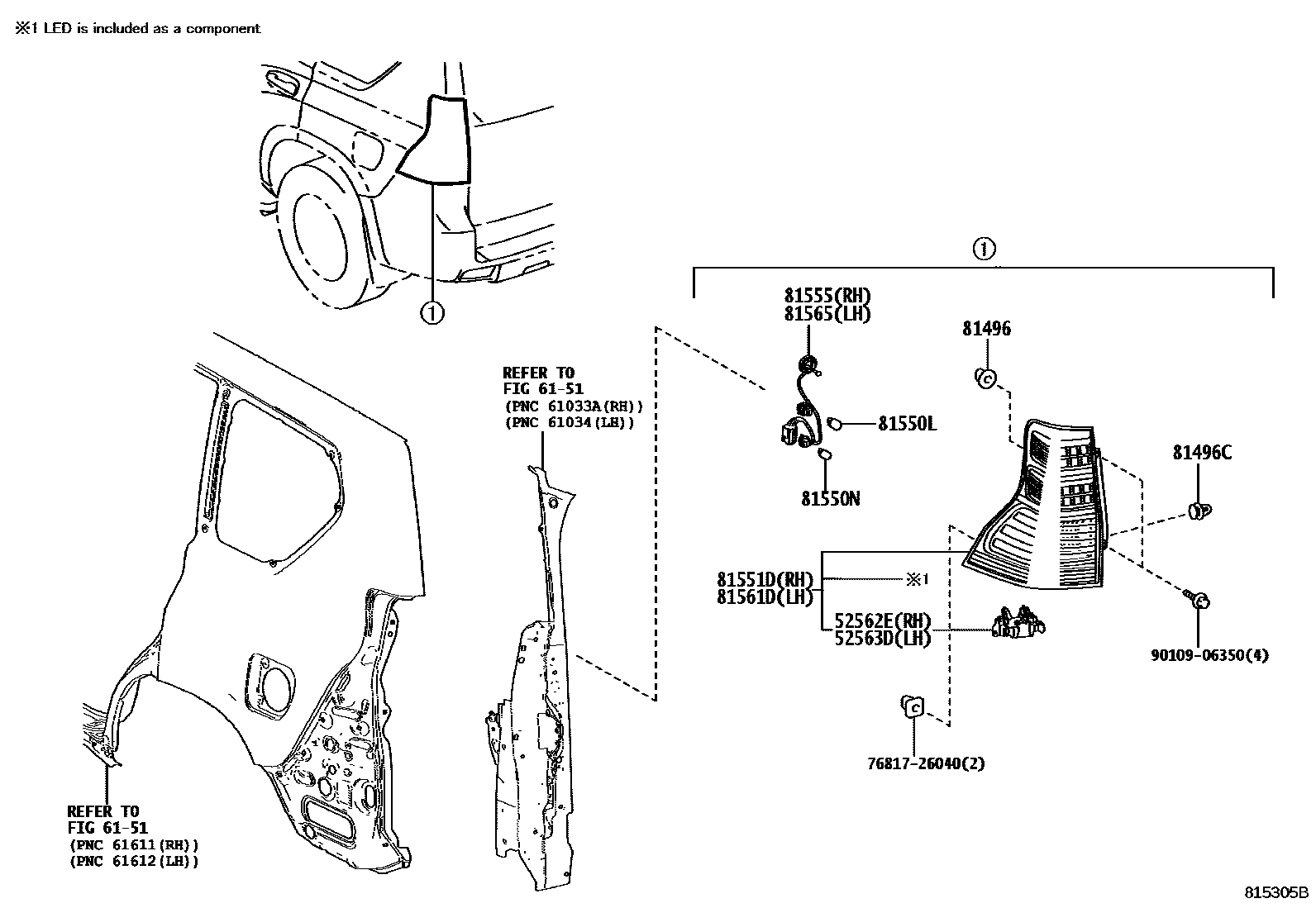

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60060iGRJ150,KDJ15#200908-201708

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60060iGRJ150,KDJ15#200908-201708

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iGRJ150..RHD200908-201607

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iGRJ150..RHD200908-201607

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iGRJ150..RHD200908-201607

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iGRJ150..RHD200908-201607

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60890iGRJ150..RHD200908-201308

sub81551-60891

main81551-60B50iGRJ150,KDJ15#201308-201606

sub81551-60B51

main81551-60B51iGDJ15#,GRJ150,KDJ15#201606

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60890iGRJ150..RHD200908-201308

main81555-60B50iGRJ150,KDJ15#201308-201606

main81555-60B51iGDJ15#,GRJ150,KDJ15#201606

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60830iGRJ150..RHD200908-201308

sub81561-60831

main81561-60B30iGRJ150,KDJ15#201308-201601

sub81561-60B31

main81561-60B31iGDJ15#,GRJ150,KDJ15#201601-201606

sub81561-60B32

main81561-60B32iGDJ15#,GRJ150,KDJ15#201606

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60890iGRJ150..RHD200908-201308

main81555-60B50iGRJ150,KDJ15#201308-201606

main81555-60B51iGDJ15#,GRJ150,KDJ15#201606

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9010906350

main90109-06350

13 parts on this diagram · 2 diagrams in section
