EPC Data

SPOILER & SIDE MUDGUARD

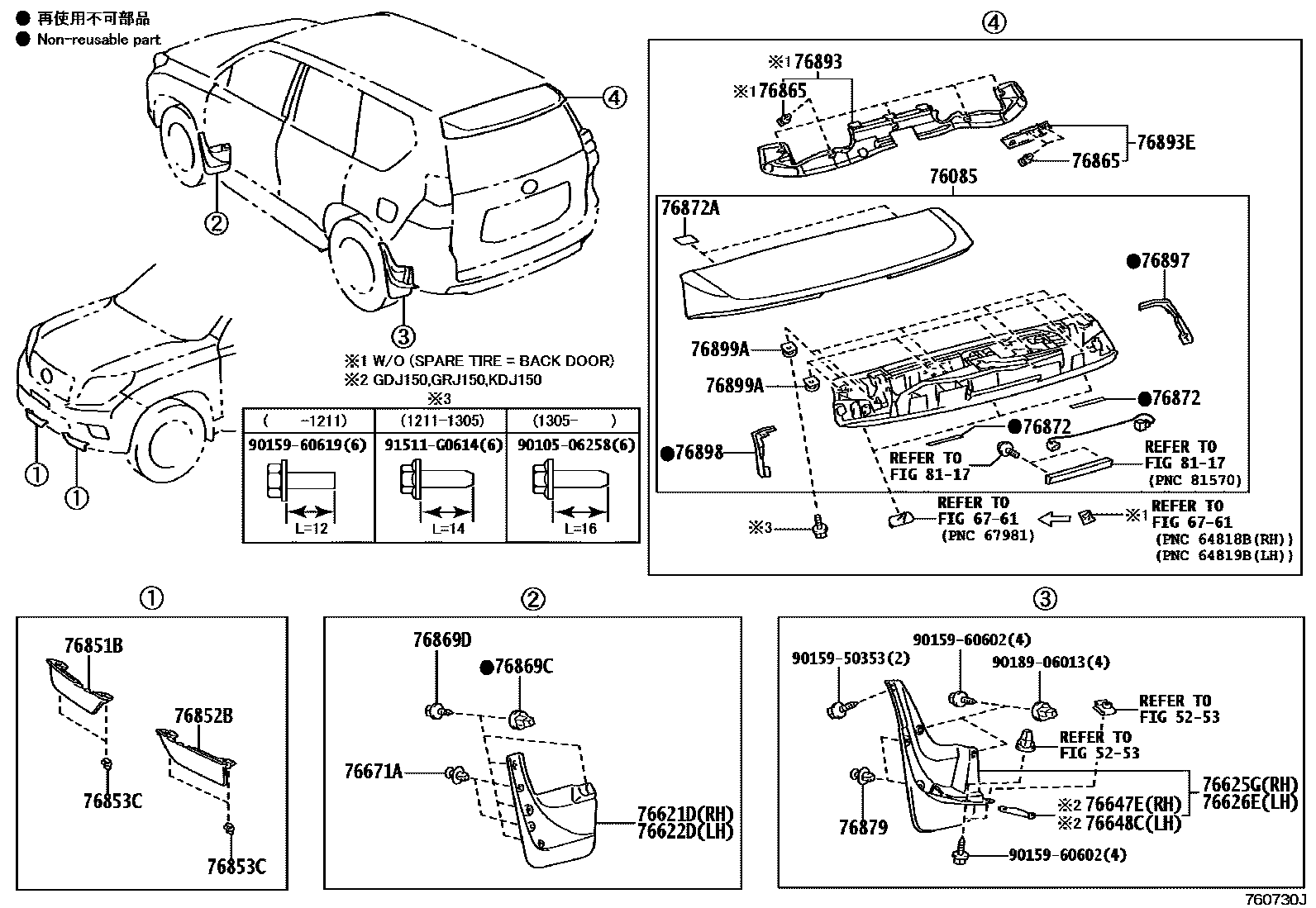

Parts diagram
5253
6761
76085SPOILER SUB-ASSY, REAR
main76085-60050-A0i200908-201112
SUPER WHITE 2,040
sub76085-60051
main76085-60050-A1i200908-201112
WHITE PEARL CS.,070
sub76085-60051
main76085-60050-B0i200908-201112
SILVER ME.,1F7
sub76085-60051
main76085-60050-B1i200908-201112
GRAY ME.,1G3
sub76085-60051
main76085-60050-B2i200908-201112
DK. STEEL MC.,1H2
sub76085-60051
main76085-60050-C0i200908-201112
BLACK,202
sub76085-60051
main76085-60050-D0i200908-201112
BLACKISH RED MC.,3R0
sub76085-60051
main76085-60050-E0i200908-201112
BEIGE ME.,4T8
sub76085-60051
main76085-60050-G0i200908-201112
GREEN M.M.,6V2
sub76085-60051
main76085-60050-J0i200908-201112
GRAYISH BLUE ME.,8R3
sub76085-60051
main76085-60051-A0i201201-201210
SUPER WHITE 2,040
sub76085-60052
main76085-60051-A1i201201-201210
WHITE PEARL CS.,070
sub76085-60052
main76085-60051-B0i201201-201210
SILVER ME.,1F7
sub76085-60052
main76085-60051-B1i201201-201210
GRAY ME.,1G3
sub76085-60052
main76085-60051-B2i201201-201210
DK. STEEL MC.,1H2
sub76085-60052
main76085-60051-C0i201201-201210
BLACK,202
sub76085-60052
main76085-60051-D0i201201-201210
BLACKISH RED MC.,3R0
sub76085-60052
main76085-60051-E0i201201-201210
BEIGE ME.,4T8
sub76085-60052
main76085-60051-G0i201201-201210
GREEN M.M.,6V2
sub76085-60052
main76085-60051-J0i201201-201210
GRAYISH BLUE ME.,8R3
sub76085-60052
main76085-60052-A0i201211-201308
SUPER WHITE 2,040
main76085-60052-A1i201211-201308
WHITE PEARL CS.,070
main76085-60052-B0i201211-201308
SILVER ME.,1F7
main76085-60052-B1i201211-201308
GRAY ME.,1G3
main76085-60052-B2i201211-201308
DK. STEEL MC.,1H2
main76085-60052-C0i201211-201308
BLACK,202
main76085-60052-D0i201211-201308
BLACKISH RED MC.,3R0
main76085-60052-E0i201211-201308
BEIGE ME.,4T8
main76085-60052-G0i201211-201308
GREEN M.M.,6V2
main76085-60052-J0i201211-201308
GRAYISH BLUE ME.,8R3
main76085-60100-A0i201308-201708
SUPER WHITE 2,040
main76085-60100-A1i201308-201708
WHITE PEARL CS.,070
main76085-60100-B0i201308-201708
SILVER ME.,1F7
main76085-60100-B2i201308-201708
GRAY ME.,1G3
main76085-60100-B3i201308-201708
DK. STEEL MC.,1H2
main76085-60100-C0i201308-201708
BLACK,202
main76085-60100-C2i201308-201708
ATTITUDE BLACK MC.,218
main76085-60100-D1i201506-201708
RED M.M.,3R3
main76085-60100-E0i201308-201708
BRONZE M.M.,4T3
main76085-60100-E3i201608-201708
VINTAGE BROWN PEARL CS.,4X4
main76085-60100-G0i201308-201608
DK.GREEN MC.,6V4
main76085-60100-J0i201308-201506
DK.BLUE MC.,8S6
76621DMUDGUARD, FRONT FENDER, RH
main76621-60170i200908-201106
main76621-60180i201506
SIDE STEP-WITH(STEP LAMP LESS)(DOP)
main76621-60180i201106-201607
main76621-60180i201506
SIDE STEP-WITH(STEP LAMP)(DOP)
76622DMUDGUARD, FRONT FENDER, LH
main76622-60140i200908-201106
main76622-60150i201106-201607
main76622-60150i201506
SIDE STEP-WITH(STEP LAMP LESS)(DOP)
main76622-60150i201506
SIDE STEP-WITH(STEP LAMP)(DOP)
76625GMUDGUARD, QUARTER PANEL, REAR RH
main76625-60210-A0i201106-201304
SUPER WHITE 2,040
sub76625-60211
main76625-60210-A1i201106-201304
WHITE PEARL CS.,070
sub76625-60211
main76625-60210-B0i201106-201304
SILVER ME.,1F7
sub76625-60211
main76625-60210-B1i201106-201304
GRAY ME.,1G3
sub76625-60211
main76625-60210-B2i201106-201304
DK. STEEL MC.,1H2
sub76625-60211
main76625-60210-C0i201106-201304
BLACK,202
sub76625-60211
main76625-60210-D0i201106-201304
BLACKISH RED MC.,3R0
sub76625-60211
main76625-60210-E0i201106-201304
BEIGE ME.,4T8
sub76625-60211
main76625-60210-G0i201106-201304
GREEN M.M.,6V2
sub76625-60211
main76625-60210-J0i201106-201304
GRAYISH BLUE ME.,8R3
sub76625-60211
main76625-60211-A0i201305-201308
SUPER WHITE 2,040
sub76625-60330
main76625-60211-A1i201305-201308
WHITE PEARL CS.,070
sub76625-60330
main76625-60211-B0i201305-201308
SILVER ME.,1F7
sub76625-60330
main76625-60211-B1i201305-201308
GRAY ME.,1G3
sub76625-60330
main76625-60211-B2i201305-201308
DK. STEEL MC.,1H2
sub76625-60330
main76625-60211-C0i201305-201308
BLACK,202
sub76625-60330
main76625-60211-D0i201305-201308
BLACKISH RED MC.,3R0
sub76625-60330
main76625-60211-E0i201305-201308
BEIGE ME.,4T8
sub76625-60330
main76625-60211-G0i201305-201308
GREEN M.M.,6V2
sub76625-60330
main76625-60211-J0i201305-201308
GRAYISH BLUE ME.,8R3
sub76625-60330
main76625-60260-A0i200908-201106
SUPER WHITE 2,040
sub76625-60330
main76625-60260-A1i200908-201106
WHITE PEARL CS.,070
sub76625-60330
main76625-60260-B0i200908-201106
SILVER ME.,1F7
sub76625-60330
main76625-60260-B1i200908-201106
GRAY ME.,1G3
sub76625-60330
main76625-60260-B2i200908-201106
DK. STEEL MC.,1H2
sub76625-60330
main76625-60260-C0i200908-201106
BLACK,202
sub76625-60330
main76625-60260-D0i200908-201106
BLACKISH RED MC.,3R0
sub76625-60330
main76625-60260-E0i200908-201106
BEIGE ME.,4T8
sub76625-60330
main76625-60260-G0i200908-201106
GREEN M.M.,6V2
sub76625-60330
main76625-60260-J0i200908-201106
GRAYISH BLUE ME.,8R3
sub76625-60330
main76625-60280-A0i200908-201106
SUPER WHITE 2,040
main76625-60280-A1i200908-201106
WHITE PEARL CS.,070
main76625-60280-B0i200908-201106
SILVER ME.,1F7
main76625-60280-B1i200908-201106
GRAY ME.,1G3
main76625-60280-B2i200908-201106
DK. STEEL MC.,1H2
main76625-60280-C0i200908-201106
BLACK,202
main76625-60280-D0i200908-201106
BLACKISH RED MC.,3R0
main76625-60280-E0i200908-201106
BEIGE ME.,4T8
main76625-60280-G0i200908-201106
GREEN M.M.,6V2
main76625-60280-J0i200908-201106
GRAYISH BLUE ME.,8R3
main76625-60300-A0i201106-201304
SUPER WHITE 2,040
sub76625-60301
main76625-60300-A1i201106-201304
WHITE PEARL CS.,070
sub76625-60301
main76625-60300-B0i201106-201304
SILVER ME.,1F7
sub76625-60301
main76625-60300-B1i201106-201304
GRAY ME.,1G3
sub76625-60301
main76625-60300-B2i201106-201304
DK. STEEL MC.,1H2
sub76625-60301
main76625-60300-C0i201106-201304
BLACK,202
sub76625-60301
main76625-60300-D0i201106-201304
BLACKISH RED MC.,3R0
sub76625-60301
main76625-60300-E0i201106-201304
BEIGE ME.,4T8
sub76625-60301
main76625-60300-G0i201106-201304
GREEN M.M.,6V2
sub76625-60301
main76625-60300-J0i201106-201304
GRAYISH BLUE ME.,8R3
sub76625-60301
main76625-60301-A0i201305-201308
SUPER WHITE 2,040
main76625-60301-A1i201305-201308
WHITE PEARL CS.,070
main76625-60301-B0i201305-201308
SILVER ME.,1F7
main76625-60301-B1i201305-201308
GRAY ME.,1G3
main76625-60301-B2i201305-201308
DK. STEEL MC.,1H2
main76625-60301-C0i201305-201308
BLACK,202
main76625-60301-D0i201305-201308
BLACKISH RED MC.,3R0
main76625-60301-E0i201305-201308
BEIGE ME.,4T8
main76625-60301-G0i201305-201308
GREEN M.M.,6V2
main76625-60301-J0i201305-201308
GRAYISH BLUE ME.,8R3
main76625-60330i201308-201506
main76625-60340i201308-201607
76626EMUDGUARD, QUARTER PANEL, REAR LH
main76626-60210-A0i201106-201304
SUPER WHITE 2,040
sub76626-60211
main76626-60210-A1i201106-201304
WHITE PEARL CS.,070
sub76626-60211
main76626-60210-B0i201106-201304
SILVER ME.,1F7
sub76626-60211
main76626-60210-B1i201106-201304
GRAY ME.,1G3
sub76626-60211
main76626-60210-B2i201106-201304
DK. STEEL MC.,1H2
sub76626-60211
main76626-60210-C0i201106-201304
BLACK,202
sub76626-60211
main76626-60210-D0i201106-201304
BLACKISH RED MC.,3R0
sub76626-60211
main76626-60210-E0i201106-201304
BEIGE ME.,4T8
sub76626-60211
main76626-60210-G0i201106-201304
GREEN M.M.,6V2
sub76626-60211
main76626-60210-J0i201106-201304
GRAYISH BLUE ME.,8R3
sub76626-60211
main76626-60211-A0i201305-201308
SUPER WHITE 2,040
sub76626-60330
main76626-60211-A1i201305-201308
WHITE PEARL CS.,070
sub76626-60330
main76626-60211-B0i201305-201308
SILVER ME.,1F7
sub76626-60330
main76626-60211-B1i201305-201308
GRAY ME.,1G3
sub76626-60330
main76626-60211-B2i201305-201308
DK. STEEL MC.,1H2
sub76626-60330
main76626-60211-C0i201305-201308
BLACK,202
sub76626-60330
main76626-60211-D0i201305-201308
BLACKISH RED MC.,3R0
sub76626-60330
main76626-60211-E0i201305-201308
BEIGE ME.,4T8
sub76626-60330
main76626-60211-G0i201305-201308
GREEN M.M.,6V2
sub76626-60330
main76626-60211-J0i201305-201308
GRAYISH BLUE ME.,8R3
sub76626-60330
main76626-60260-A0i200908-201106
SUPER WHITE 2,040
sub76626-60330
main76626-60260-A1i200908-201106
WHITE PEARL CS.,070
sub76626-60330
main76626-60260-B0i200908-201106
SILVER ME.,1F7
sub76626-60330
main76626-60260-B1i200908-201106
GRAY ME.,1G3
sub76626-60330
main76626-60260-B2i200908-201106
DK. STEEL MC.,1H2
sub76626-60330
main76626-60260-C0i200908-201106
BLACK,202
sub76626-60330
main76626-60260-D0i200908-201106
BLACKISH RED MC.,3R0
sub76626-60330
main76626-60260-E0i200908-201106
BEIGE ME.,4T8
sub76626-60330
main76626-60260-G0i200908-201106
GREEN M.M.,6V2
sub76626-60330
main76626-60260-J0i200908-201106
GRAYISH BLUE ME.,8R3
sub76626-60330
main76626-60280-A0i200908-201106
SUPER WHITE 2,040
main76626-60280-A1i200908-201106
WHITE PEARL CS.,070
main76626-60280-B0i200908-201106
SILVER ME.,1F7
main76626-60280-B1i200908-201106
GRAY ME.,1G3
main76626-60280-B2i200908-201106
DK. STEEL MC.,1H2
main76626-60280-C0i200908-201106
BLACK,202
main76626-60280-D0i200908-201106
BLACKISH RED MC.,3R0
main76626-60280-E0i200908-201106
BEIGE ME.,4T8
main76626-60280-G0i200908-201106
GREEN M.M.,6V2
main76626-60280-J0i200908-201106
GRAYISH BLUE ME.,8R3
main76626-60300-A0i201106-201304
SUPER WHITE 2,040
sub76626-60301
main76626-60300-A1i201106-201304
WHITE PEARL CS.,070
sub76626-60301
main76626-60300-B0i201106-201304
SILVER ME.,1F7
sub76626-60301
main76626-60300-B1i201106-201304
GRAY ME.,1G3
sub76626-60301
main76626-60300-B2i201106-201304
DK. STEEL MC.,1H2
sub76626-60301
main76626-60300-C0i201106-201304
BLACK,202
sub76626-60301
main76626-60300-D0i201106-201304
BLACKISH RED MC.,3R0
sub76626-60301
main76626-60300-E0i201106-201304
BEIGE ME.,4T8
sub76626-60301
main76626-60300-G0i201106-201304
GREEN M.M.,6V2
sub76626-60301
main76626-60300-J0i201106-201304
GRAYISH BLUE ME.,8R3
sub76626-60301
main76626-60301-A0i201305-201308
SUPER WHITE 2,040
main76626-60301-A1i201305-201308
WHITE PEARL CS.,070
main76626-60301-B0i201305-201308
SILVER ME.,1F7
main76626-60301-B1i201305-201308
GRAY ME.,1G3
main76626-60301-B2i201305-201308
DK. STEEL MC.,1H2
main76626-60301-C0i201305-201308
BLACK,202
main76626-60301-D0i201305-201308
BLACKISH RED MC.,3R0
main76626-60301-E0i201305-201308
BEIGE ME.,4T8
main76626-60301-G0i201305-201308
GREEN M.M.,6V2
main76626-60301-J0i201305-201308
GRAYISH BLUE ME.,8R3
main76626-60330i201308-201506
main76626-60340i201308-201607
76647ESUPPORT, REAR BODY MUDGUARD, NO.1 RH
main76647-60050i200908-201506
76648CSUPPORT, REAR BODY MUDGUARD, LH
main76648-60030i200908-201506
76671ACLIP, FRONT FENDER MUDGUARD
main52161-16010i201506
SIDE STEP-WITH(STEP LAMP)(DOP)
sub52161-0K040
main52161-16010i200908-201607
sub52161-0K040
main52161-16010i201506
SIDE STEP-WITH(STEP LAMP LESS)(DOP)
sub52161-0K040
76851BSPOILER, FRONT, RH
main76851-60010i200908-201607
76852BSPOILER, FRONT, LH
main76852-60010i200908-201607
76853CRETAINER, FRONT SPOILER, NO.1
main52526-60030i200908-201607
76865RETAINER, REAR SPOILER, NO.1
main76865-35030i201308-201506
HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT
main76865-35030i200908-201607
main76865-35030i200908-201506
SPARE TIRE-WITHOUT
main76865-35030i201308-201506
*242&SPARE TIRE-WITHOUT
main76865-35030i201308-201506
PORTUGAL SPEC&SPARE TIRE-WITHOUT
main76865-35030i201308-201506
GERMANY SPEC&SPARE TIRE-WITHOUT
main76865-35030i201308-201506
RUMANIA SPEC&SPARE TIRE-WITHOUT
main76865-35030i201308-201506
SLOVENIA SPEC&SPARE TIRE-WITHOUT
76869CGROMMET, SCREW, NO.1
main90189-06065i201506-201708
SIDE STEP-WITH(STEP LAMP LESS)(DOP)
main90189-06065i201506-201708
SIDE STEP-WITH(STEP LAMP)(DOP)
main90189-06065i200908-201506
76869DSCREW, NO.2
main90159-60603i200908-201506
main90159-60603i201506-201708
SIDE STEP-WITH(STEP LAMP LESS)(DOP)
main90159-60603i201506-201708
SIDE STEP-WITH(STEP LAMP)(DOP)
76872PROTECTOR, REAR SPOILER, NO.1
main76872-60020i200908-201607
76872APROTECTOR, REAR SPOILER, NO.1
main76872-60030i200908-201607
76879CLIP, REAR SPOILER, NO.1
main55799-28010i200908-201607
76893COVER, REAR SPOILER, NO.1
main76893-60020i200908-201506
SPARE TIRE-WITHOUT
main76893-60020i201308-201506
HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT
main76893-60020i201308-201506
PORTUGAL SPEC&SPARE TIRE-WITHOUT
main76893-60020i201308-201506
GERMANY SPEC&SPARE TIRE-WITHOUT
main76893-60020i201308-201506
RUMANIA SPEC&SPARE TIRE-WITHOUT
main76893-60020i201308-201506
SLOVENIA SPEC&SPARE TIRE-WITHOUT
main76893-60020i201308-201506
*242&SPARE TIRE-WITHOUT
main76893-60020i200908-201110
76893ECOVER, REAR SPOILER, RH
main76894-60020i200908-201308
SPARE TIRE-WITHOUT
main76894-60020i200908-201110
main76894-60030i200908-201308
main76894-60060i201308-201506
GERMANY SPEC&SPARE TIRE-WITHOUT
main76894-60060i201308-201506
RUMANIA SPEC&SPARE TIRE-WITHOUT
main76894-60060i201308-201506
SLOVENIA SPEC&SPARE TIRE-WITHOUT
main76894-60060i201308-201506
SPARE TIRE-WITHOUT
main76894-60060i201308-201506
*242&SPARE TIRE-WITHOUT
main76894-60060i201308-201506
HUNGARY,SLOVAKIA,POLAND SPEC&SPARE TIRE-WITHOUT
main76894-60060i201308-201506
PORTUGAL SPEC&SPARE TIRE-WITHOUT
main76894-60070i201308-201607
76897PROTECTOR, REAR SPOILER, SIDE RH
main76897-60010i200908-201607
76898PROTECTOR, REAR SPOILER, SIDE LH
main76898-60020i200908-201607
76899ANUT, REAR SPOILER
main76899-60010i200908-201210
main90182-06010i201211-201607
8117
9010506258
main90105-06258
9015950353
main90159-50353
9015960602
main90159-60602
9015960619
main90159-60619
9018906013
main90189-06013
91511G0614
main91511-G0614

31 parts on this diagram · 1 diagram in section

SPOILER & SIDE MUDGUARD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
