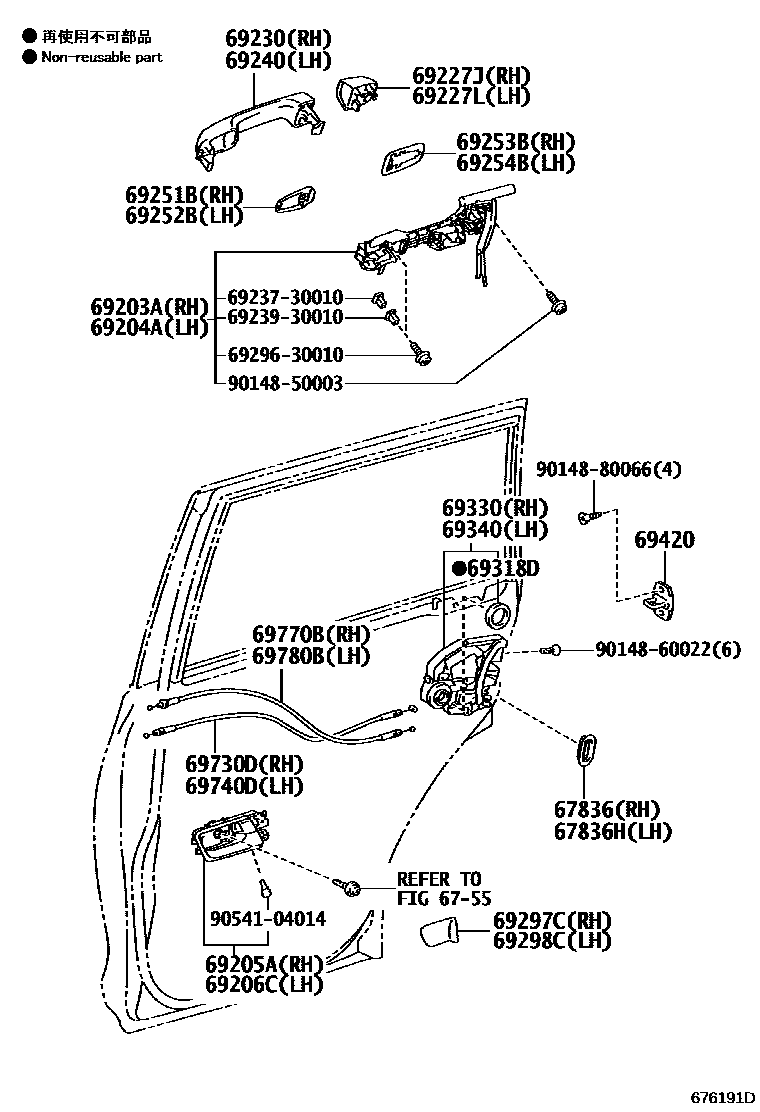

REAR DOOR LOCK & HANDLE
6755
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
sub69203-60071
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
sub69204-60071
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#
BLACK,TRIM2#
DK. BROWN,TRIM0#
ORCHID BROWN,TRIM0#
*471(*FAS) & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
sub67605-60051
VX-L PACKAGE & SHIFT KNOB(LEATHER),BLACK,TRIM2#
sub67605-60051
VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
sub67605-60051
*471(*LES) & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
sub67605-60051
VX PACKAGE(*LES) & SHIFT KNOB(LEATHER),BLACK,TRIM2#
sub67605-60051
VX PACKAGE(*LES) & SHIFT KNOB(LEATHER),ORCHID BROWN,TRIM0#
sub67605-60051
VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
sub67605-60051
*471(*LES) & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
sub67605-60051
*471(*FAS) & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
sub67605-60051
VX-L PACKAGE & SHIFT KNOB(LEATHER),ORCHID BROWN,TRIM0#
sub67605-60051
BLACK,TRIM2#
VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
*471(*LES) & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
*471(*FAS) & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
VX-L PACKAGE & SHIFT KNOB(LEATHER),BLACK,TRIM2#
VX PACKAGE(*LES) & SHIFT KNOB(LEATHER),BLACK,TRIM2#
*471(*LES) & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
*471(*FAS) & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
VX-L PACKAGE & SHIFT KNOB(LEATHER),ORCHID BROWN,TRIM0#
VX PACKAGE(*LES) & SHIFT KNOB(LEATHER),ORCHID BROWN,TRIM0#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#
BLACK,TRIM2#
DK. BROWN,TRIM0#
ORCHID BROWN,TRIM0#
VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
sub67606-60051
*471(*LES) & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
sub67606-60051
*471(*FAS) & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
sub67606-60051
VX-L PACKAGE & SHIFT KNOB(LEATHER),BLACK,TRIM2#
sub67606-60051
VX PACKAGE(*LES) & SHIFT KNOB(LEATHER),BLACK,TRIM2#
sub67606-60051
VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
sub67606-60051
*471(*LES) & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
sub67606-60051
*471(*FAS) & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
sub67606-60051
VX-L PACKAGE & SHIFT KNOB(LEATHER),ORCHID BROWN,TRIM0#
sub67606-60051
VX PACKAGE(*LES) & SHIFT KNOB(LEATHER),ORCHID BROWN,TRIM0#
sub67606-60051
BLACK,TRIM2#
VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
*471(*LES) & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
*471(*FAS) & SHIFT KNOB(LEATHER,*WOO),BLACK,TRIM2#
VX-L PACKAGE & SHIFT KNOB(LEATHER),BLACK,TRIM2#
VX PACKAGE(*LES) & SHIFT KNOB(LEATHER),BLACK,TRIM2#
*471(*FAS) & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
VX-L PACKAGE & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
*471(*LES) & SHIFT KNOB(LEATHER,*WOO),ORCHID BROWN,TRIM0#
VX-L PACKAGE & SHIFT KNOB(LEATHER),ORCHID BROWN,TRIM0#
VX PACKAGE(*LES) & SHIFT KNOB(LEATHER),ORCHID BROWN,TRIM0#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,218 ,3R3 ,4T3 ,4X4 ,6V4
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,3R0 ,4T8 ,6V2 ,8R3,BLACK PAINT
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,218 ,4T3 ,6V4 ,8S6,BLACK PAINT
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,218 ,3R3 ,4T3 ,6V4
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
RED M.M.,3R3
BEIGE ME.,4T8
BRONZE M.M.,4T3
VINTAGE BROWN PEARL CS.,4X4
GREEN M.M.,6V2
DK.GREEN MC.,6V4
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,218 ,3R3 ,4T3 ,4X4 ,6V4
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,218 ,3R3 ,4T3 ,6V4
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,218 ,4T3 ,6V4 ,8S6,BLACK PAINT
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,3R0 ,4T8 ,6V2 ,8R3,BLACK PAINT
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
RED M.M.,3R3
BEIGE ME.,4T8
BRONZE M.M.,4T3
VINTAGE BROWN PEARL CS.,4X4
GREEN M.M.,6V2
DK.GREEN MC.,6V4
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,218 ,3R3 ,4T3 ,6V4
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,218 ,3R3 ,4T3 ,4X4 ,6V4
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
RED M.M.,3R3
BEIGE ME.,4T8
BRONZE M.M.,4T3
VINTAGE BROWN PEARL CS.,4X4
GREEN M.M.,6V2
DK.GREEN MC.,6V4
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,218 ,3R3 ,4T3 ,4X4 ,6V4
BLACK,040 ,070 ,1F7 ,1G3 ,1H2 ,202 ,218 ,3R3 ,4T3 ,6V4
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
RED M.M.,3R3
BEIGE ME.,4T8
BRONZE M.M.,4T3
VINTAGE BROWN PEARL CS.,4X4
GREEN M.M.,6V2
DK.GREEN MC.,6V4
GRAYISH BLUE ME.,8R3
DK.BLUE MC.,8S6
69251BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 RH
69252BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 LH
69253BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 RH
69254BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH
69297CBEZEL, DOOR INSIDE HANDLE, NO.2 RH
BLACK,TRIM1#
BLACK,TRIM2#
DK. BROWN,TRIM0#
ORCHID BROWN,TRIM0#
69298CBEZEL, DOOR INSIDE HANDLE, NO.2 LH
BLACK,TRIM2#
BLACK,TRIM1#
DK. BROWN,TRIM0#
ORCHID BROWN,TRIM0#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9054104014
main90541-04014
32 parts on this diagram · 1 diagram in section
