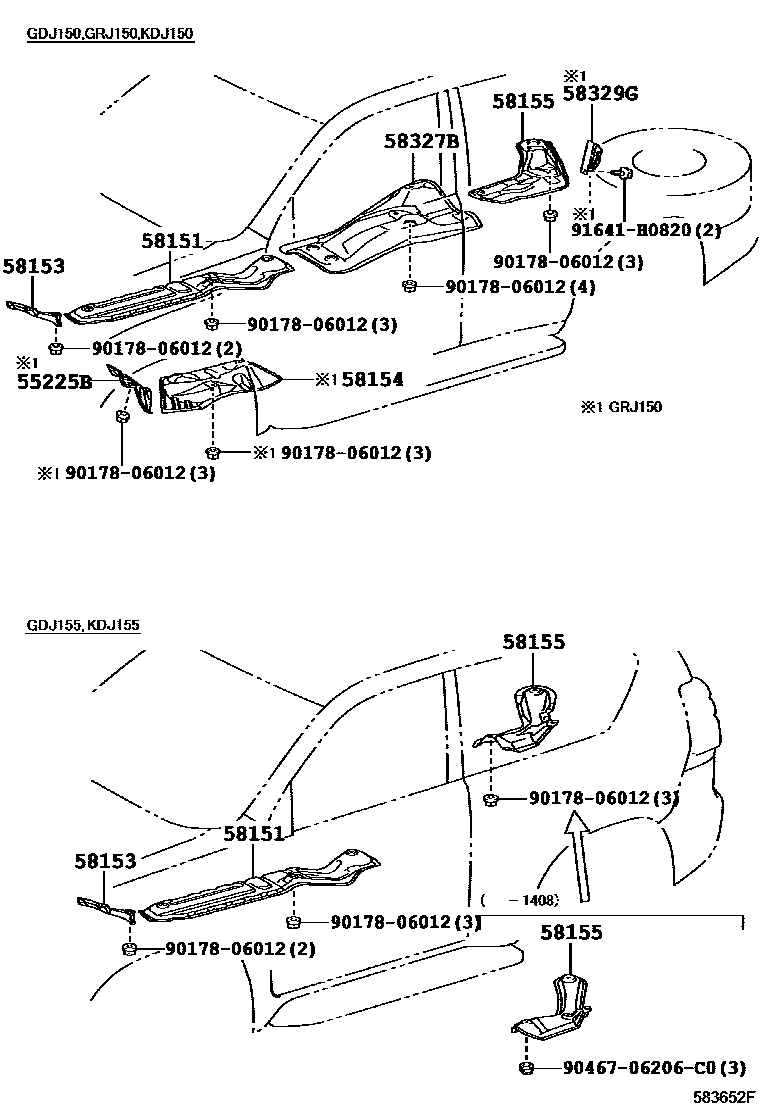

FLOOR INSULATOR

55225BINSULATOR, DASH PANEL HEAT

main55225-60050iGRJ150201308-201506

sub55225-60070

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-60120iGRJ150,KDJ15#200908-201009

main58151-60121iGRJ150..RHD201010-201110

sub58151-60122

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-35130iGRJ150..RHD200908-201110

sub58153-60130

58154INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER

main58152-60060iGRJ150..RHD200908-201110

sub58152-60040

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-35020iKDJ155201308-201408

sub90178-06012

main58155-60070iGDJ150,GRJ150,KDJ150201506

main58155-60100iKDJ155201506-201607

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-60100iGRJ150..RHD200908-201110

main58327-60101iGDJ150,GRJ150,KDJ150201608

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main5192A-60010supersedes 5192A-60010iGRJ150201506

9017806012

main90178-06012

9046706206C0

main90467-06206C0

91641H0820

main91641-H0820

10 parts on this diagram · 1 diagram in section
