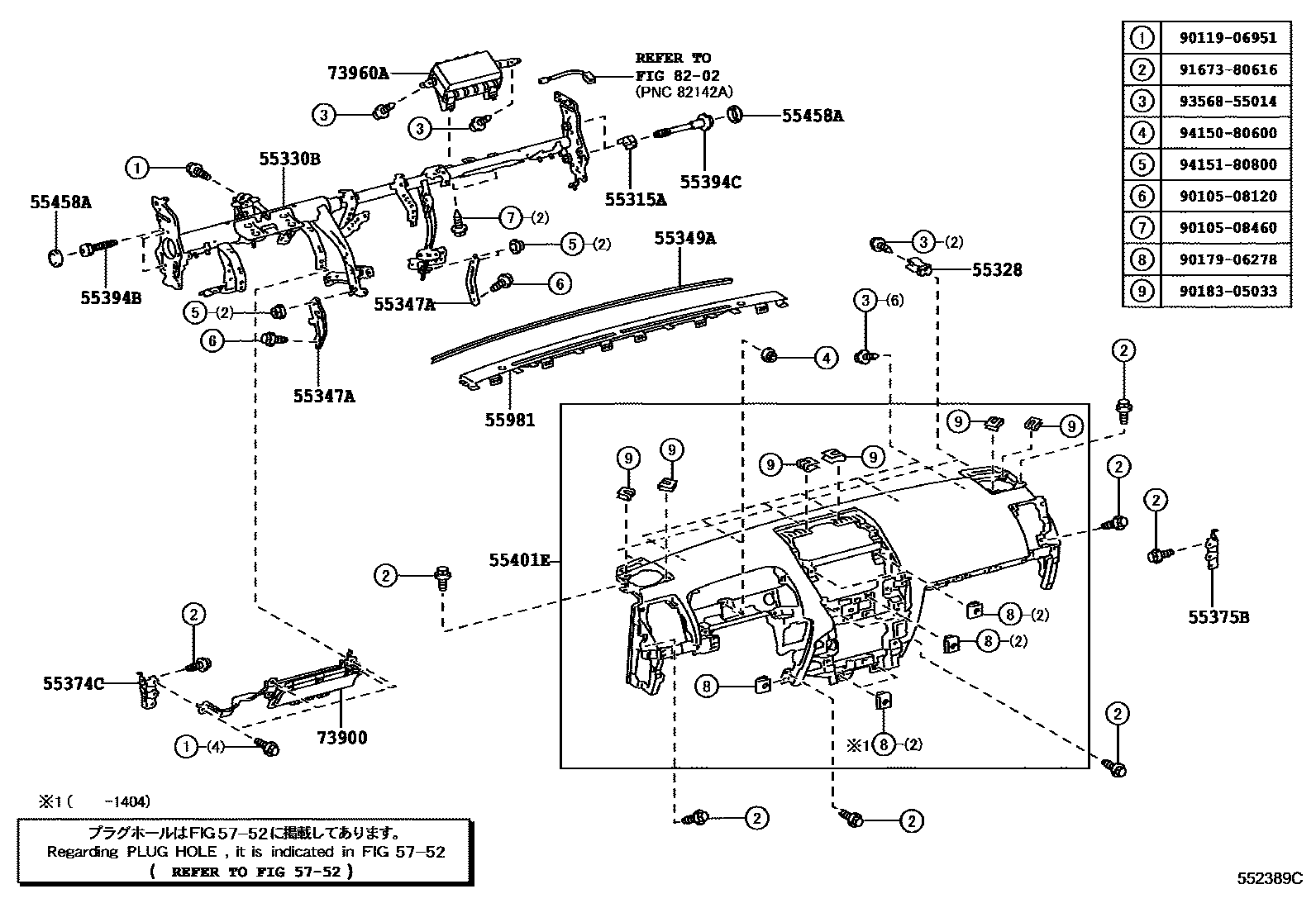

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1DRIVER SIDE 0010 1CENTER 0011 1PASSENGER SIDE

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040iGDJ15#,GRJ150,KDJ150¥270200908-201607

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iKDJ155¥340200908-201607

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60230iGDJ15#,GRJ150,KDJ15#..LHD200908-201604

sub55330-60231

main55330-60231iGDJ15#,GRJ150,KDJ15#..LHD201605-201612

sub55330-60232

main55330-60232iGDJ15#,GRJ150,KDJ150..LHD201701

main55330-60261iGDJ150..RHD..6FC¥19,400201506

VX PACKAGE

main55330-60261iGDJ150..RHD..6FC¥19,400201506

VX-L PACKAGE

main55330-60300iKDJ15#..RHD¥23,700200908-201411

sub55330-60301¥19,600

main55330-60301iGDJ15#..RHD¥19,600201412-201506

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55347-60110iGRJ150..RHD¥720200908-201607

LH

main55348-60120iKDJ155¥710200908-201607

RH

55349ACUSHION, INSTRUMENT PANEL

main55349-60100iGRJ150,KDJ15#¥1,130200908-201607

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-60110iGRJ150,KDJ15#¥610200908-201607

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-60110iGRJ150,KDJ15#¥610200908-201607

55394BBOLT, INSTRUMENT PANEL

main55394-48050iGRJ150,KDJ15#¥120200908-201607

55394CBOLT, INSTRUMENT PANEL

main55394-48060iKDJ155¥120200908-201607

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-60450-C0iKDJ15#..RHD201308-201404

BLACK,TRIM2#

sub55401-60451¥53,200

sub90179-06278¥100

main55401-60450-C0iGRJ150..RHD200908-201308

BLACK,TRIM1#

sub55401-60451¥53,200

sub90179-06278¥100

main55401-60450-E0iGRJ150..RHD200908-201308

DK. BROWN,TRIM0#

sub55401-60451¥53,200

sub90179-06278¥100

main55401-60450-E1iKDJ15#..RHD201308-201404

ORCHID BROWN,TRIM0#

sub55401-60451¥53,200

sub90179-06278¥100

main55401-60451-C0iGDJ15#,KDJ150..RHD201404-201708

BLACK,TRIM2#

main55401-60451-E1iGDJ15#,KDJ150..RHD201404-201708

ORCHID BROWN,TRIM0#

main55401-60933-C1iGRJ150,KDJ15#..LHD201308-201404

BLACK,TRIM2#

sub55401-60935

sub90179-06278¥100

sub90179-06178¥100

main55401-60933-C1iGRJ150,KDJ15#..LHD200908-201308

BLACK,TRIM1#

sub55401-60935

sub90179-06278¥100

sub90179-06178¥100

main55401-60933-E1iGRJ150,KDJ15#..LHD200908-201308

DK.BROWN,TRIM0#

sub55401-60935

sub90179-06278¥100

sub90179-06178¥100

main55401-60933-E3iGRJ150,KDJ15#..LHD201308-201404

ORCHID BROWN,TRIM0#

sub55401-60935

sub90179-06278¥100

sub90179-06178¥100

main55401-60935-C1iGDJ15#,GRJ150,KDJ15#..LHD201404-201512

BLACK,TRIM2#

sub55401-60936¥51,000

main55401-60935-E3iGDJ15#,GRJ150,KDJ15#..LHD201404-201512

ORCHID BROWN,TRIM0#

sub55401-60936¥51,000

main55401-60936-C1iKDJ155201512-201708

BLACK,TRIM2#

main55401-60936-E3iGDJ15#,GRJ150,KDJ150..LHD201512-201708

ORCHID BROWN,TRIM0#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100iKDJ155¥160200908-201607

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-60030-C0iGDJ15#,GRJ150,KDJ15#201308-201708

BLACK,TRIM2#

sub55981-60030¥4,380

main55981-60030-C0iKDJ15#;GRJ150..LHD200908-201308

BLACK,TRIM1#

sub55981-60030¥4,380

main55981-60030-E0iKDJ15#;GRJ150..LHD200908-201308

DK. BROWN,TRIM0#

sub55981-60030¥4,380

main55981-60030-E2iGRJ150,KDJ15#201308-201708

ORCHID BROWN,TRIM0#

sub55981-60030¥4,380

5752

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-60030-A0iGRJ150,KDJ15#..LHD201308-201708

FLAXEN,TRIM0#

sub73900-60160

main73900-60030-C0iGRJ150,KDJ15#..LHD200908-201308

BLACK,TRIM1#

sub73900-60160

main73900-60030-C0iGDJ15#,GRJ150,KDJ15#..LHD201308-201708

BLACK,TRIM2#

sub73900-60160

main73900-60030-E0iGRJ150,KDJ15#..LHD200908-201308

DK. BROWN,TRIM0#

sub73900-60160

main73900-60040-A0iKDJ15#..RHD201308-201708

FLAXEN,TRIM0#

sub73900-60170¥31,100

main73900-60040-C0iKDJ155..RHD..5FC200908-201308

SRS AIR BAG-WITH(*DRP),BLACK,TRIM1#

sub73900-60170¥31,100

main73900-60040-C0iKDJ155..RHD..5FC200908-201308

BLACK,TRIM1#

sub73900-60170¥31,100

main73900-60040-C0iGDJ15#,KDJ150..RHD201308-201708

BLACK,TRIM2#

sub73900-60170¥31,100

main73900-60040-E0iKDJ155..RHD..5FC200908-201308

DK. BROWN,TRIM0#

sub73900-60170¥31,100

main73900-60040-E0iKDJ15#..RHD200908-201308

SRS AIR BAG-WITH(*DRP),DK. BROWN,TRIM0#

sub73900-60170¥31,100

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60200iGRJ150,KDJ15#..LHD¥99,800200908-201607

sub73960-60390

main73960-60210iGDJ15#,KDJ150..RHD¥99,800200908-201506

sub73960-60400¥99,800

8202

9010508120

main90105-08120¥90

9010508460

main90105-08460¥80

9011906951

main90119-06951¥80

9017906278

main90179-06278¥100

9018305033

main90183-05033¥80

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

9415080600

main94150-80600¥60

9415180800

main94151-80800¥80

25 parts on this diagram · 11 diagrams in section
