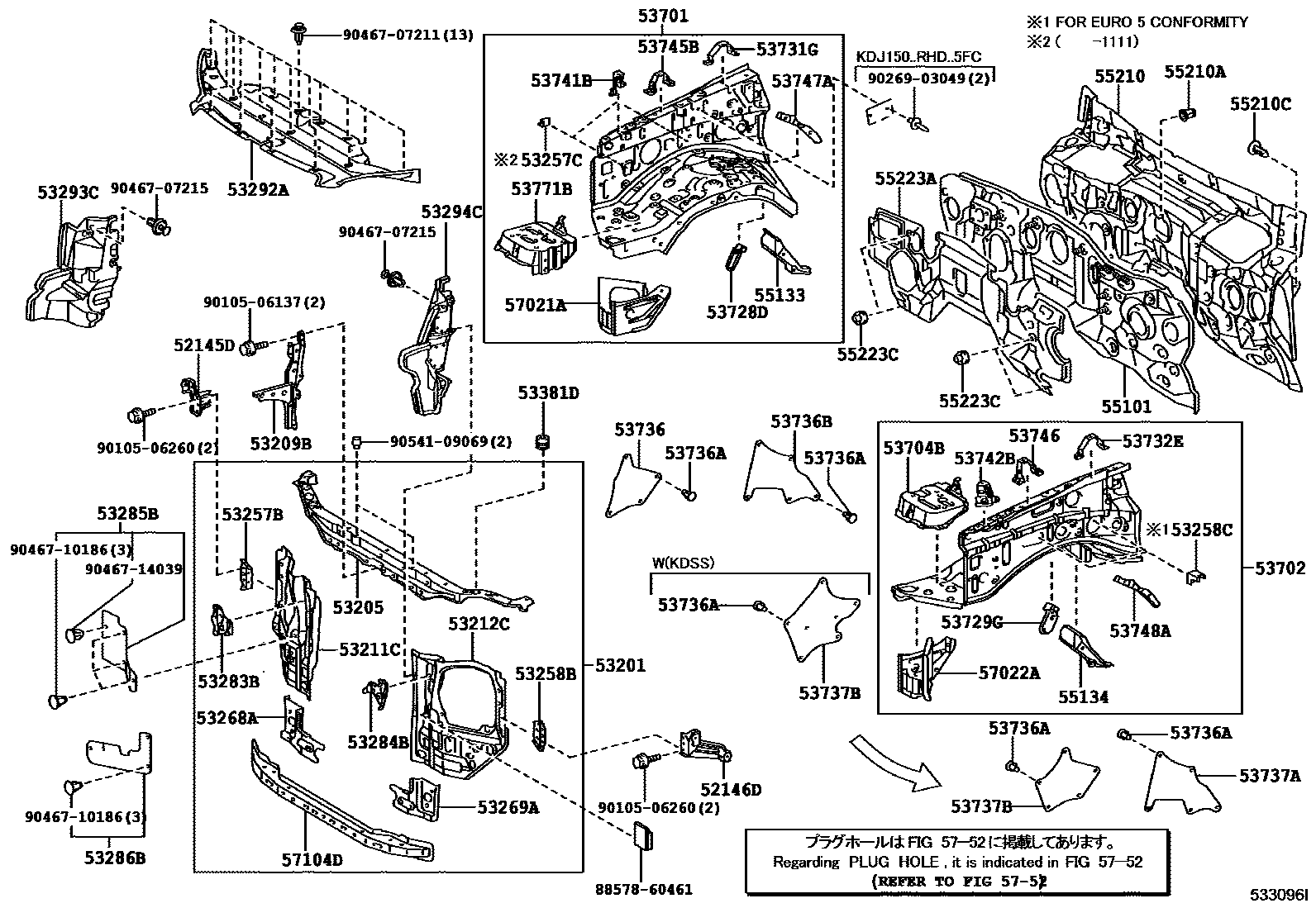

FRONT FENDER APRON & DASH PANEL
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53211CSUPPORT, RADIATOR, RH
53212CSUPPORT, RADIATOR, LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257CBRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53258CBRACKET, FENDER APRON, LH
AZORES,MACEDONIA SPEC,FRONT
TURKEY SPEC,FRONT
ISRAEL SPEC,FRONT
FRONT
*242,FRONT
HUNGARY,SLOVAKIA,POLAND SPEC,FRONT
MONACO,GIBRALTAR,CANARY ISLANDS SPEC,FRONT
SWEDEN,FINLAND,NORWAY,DENMARK SPEC,FRONT
PORTUGAL SPEC,FRONT
GREECE SPEC,FRONT
ICELAND SPEC,FRONT
CZECHOSLOVAKIA SPEC,FRONT
GERMANY SPEC,FRONT
RUMANIA SPEC,FRONT
REUNION,GUIANAN,GUADELOUPE,MARTINIQUE,FRONT
BULGARIA SPEC,FRONT
ESTONIA,LATVIA,LITHUANIA SPEC,FRONT
SLOVENIA SPEC,FRONT
HUNGARY,SLOVAKIA,POLAND SPEC,REAR
REAR
*242,REAR
MONACO,GIBRALTAR,CANARY ISLANDS SPEC,REAR
SWEDEN,FINLAND,NORWAY,DENMARK SPEC,REAR
PORTUGAL SPEC,REAR
GREECE SPEC,REAR
ICELAND SPEC,REAR
CZECHOSLOVAKIA SPEC,REAR
GERMANY SPEC,REAR
RUMANIA SPEC,REAR
REUNION,GUIANAN,GUADELOUPE,MARTINIQUE,REAR
BULGARIA SPEC,REAR
ESTONIA,LATVIA,LITHUANIA SPEC,REAR
SLOVENIA SPEC,REAR
AZORES,MACEDONIA SPEC,REAR
TURKEY SPEC,REAR
ISRAEL SPEC,REAR
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53292ASEAL, RADIATOR SUPPORT, UPPER
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53381DBUMPER, HOOD TO FRONT SHROUD
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
ENGINE-FOR EURO 4 CONFORMITY
MONACO,GIBRALTAR,CANARY ISLANDS SPEC
SWEDEN,FINLAND,NORWAY,DENMARK SPEC
REUNION,GUIANAN,GUADELOUPE,MARTINIQUE
ENGINE-FOR EURO 4 CONFORMITY
ENGINE-FOR EURO 4 CONFORMITY
AZORES,MACEDONIA SPEC
TURKEY SPEC
ISRAEL SPEC
*242
HUNGARY,SLOVAKIA,POLAND SPEC
MONACO,GIBRALTAR,CANARY ISLANDS SPEC
SWEDEN,FINLAND,NORWAY,DENMARK SPEC
PORTUGAL SPEC
GREECE SPEC
ICELAND SPEC
CZECHOSLOVAKIA SPEC
GERMANY SPEC
RUMANIA SPEC
REUNION,GUIANAN,GUADELOUPE,MARTINIQUE
BULGARIA SPEC
ESTONIA,LATVIA,LITHUANIA SPEC
SLOVENIA SPEC
MONACO,GIBRALTAR,CANARY ISLANDS SPEC
SWEDEN,FINLAND,NORWAY,DENMARK SPEC
REUNION,GUIANAN,GUADELOUPE,MARTINIQUE
53704BSUPPORT SUB-ASSY, BATTERY, LH
53728DBRACKET, FENDER APRON, RH
53729GBRACKET, FENDER APRON, LH
53731GREINFORCEMENT, FRONT FENDER APRON, RH
53732EREINFORCEMENT, FRONT FENDER APRON, LH
53736SEAL, FRONT FENDER APRON, RH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
VX PACKAGE
VX-L PACKAGE
STABILIZER-WITH(KDSS)
53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH
53737BSEAL, FRONT FENDER APRON, LH
53741BPLATE, FENDER APRON REINFORCE, RH
53742BPLATE, FENDER APRON REINFORCE, LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53771BSUPPORT, BATTERY CARRIER, RH
55101PANEL SUB-ASSY, DASH
55133PLATE, FRONT FENDER APRON SET, LOWER RH
55134PLATE, FRONT FENDER APRON SET, LOWER LH
55210ACLIP
55210CCLIP
55223AINSULATOR, DASH PANEL, OUTER
sub55223-35073
sub55223-35074
sub55223-60391
sub55223-60392
sub55223-60401
sub55223-60441
55223CCLIP
BLACK
57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
57104DMEMBER SUB-ASSY, FRONT CROSS
5752
8857860461PAKING, COOLER AIR DUCT
main88578-60461
9010506137
9010506260
9026903049
9046707211
9046707215
9046710186
9046714039
9054109069
61 parts on this diagram · 2 diagrams in section
