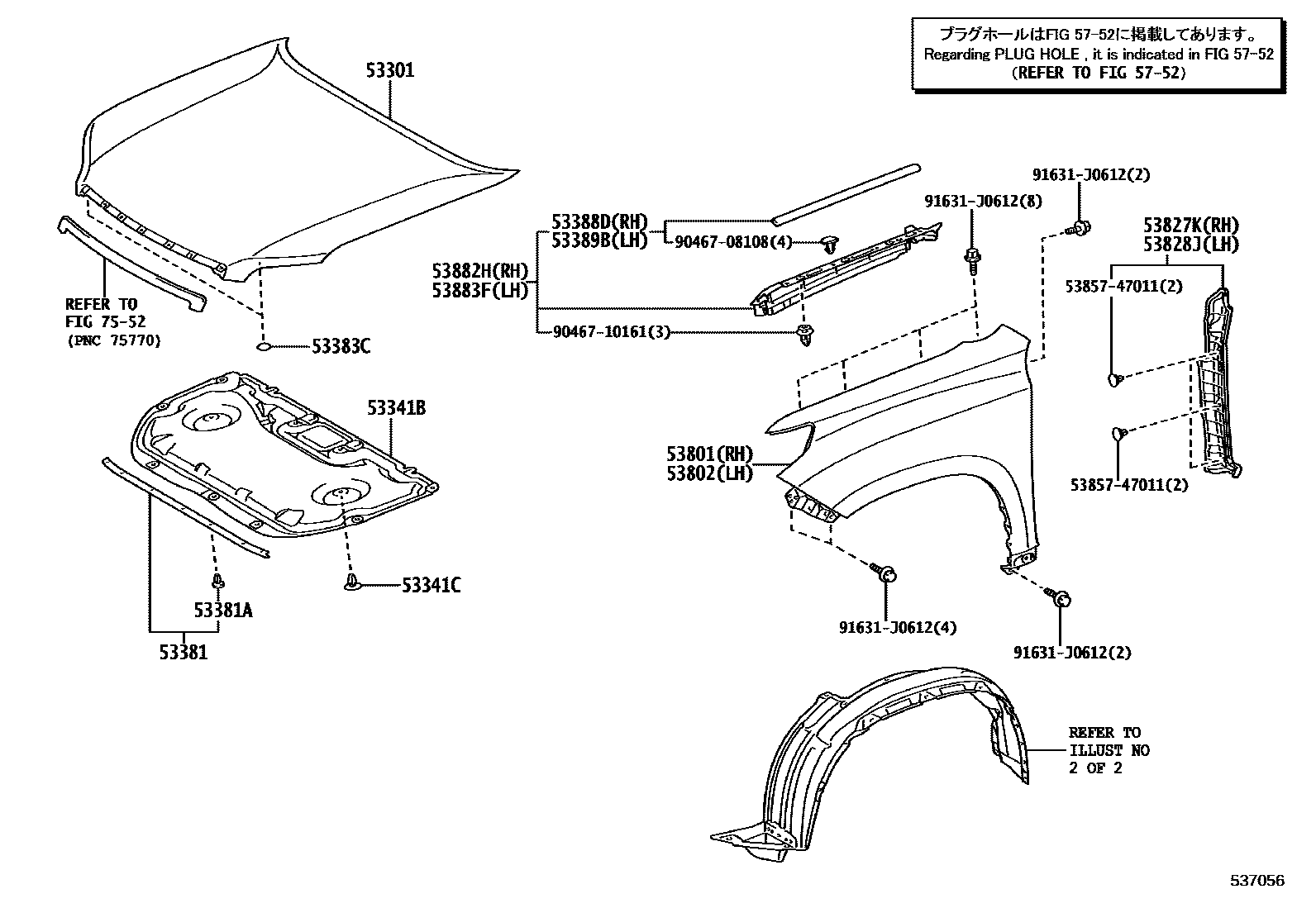

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-60630iGRJ150,KDJ15#200908-201607

53341BINSULATOR, HOOD

main53341-60360iKDJ155200908-201607

main53341-60370iGRJ150200908-201506

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iGRJ150..RHD200908-201607

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60140iGDJ15#,GRJ150,KDJ150200908-201607

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGRJ150..RHD200908-201607

53383CSEAL, HOOD TO COWL TOP

main90950-06096iGDJ15#,GRJ150,KDJ150201406-201607

main90950-06124iGRJ150,KDJ15#200908-201405

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-60040iGRJ150,KDJ15#200908-201607

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-60040iGRJ150..RHD200908-201607

53801FENDER SUB-ASSY, FRONT RH

main53811-60A90iGRJ150,KDJ15#200908-201607

53802FENDER SUB-ASSY, FRONT LH

main53812-60C10iGRJ150,KDJ15#200908-201607

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60040iGRJ150..RHD200908-201607

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60060iGRJ150..RHD200908-201607

53882HSEAL, FRONT FENDER MAIN, RH

main53807-60110iGRJ150..RHD200908-201607

53883FSEAL, FRONT FENDER MAIN, LH

main53808-60090iGRJ150..RHD200908-201607

5752

7552

5385747011RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011

9046708108

main90467-08108

9046710161

main90467-10161

91631J0612

main91631-J0612

20 parts on this diagram · 2 diagrams in section
