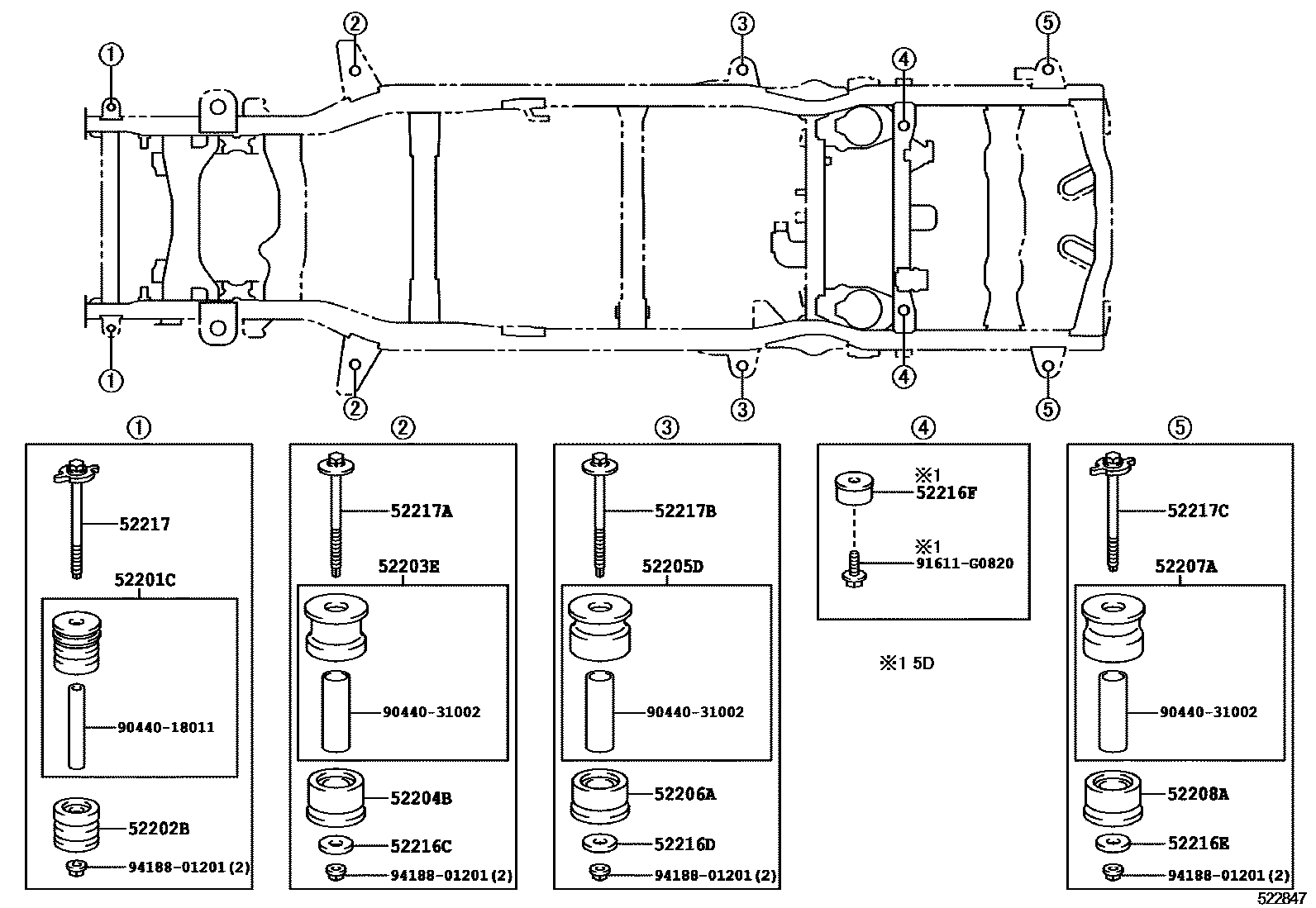

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-60070iGRJ150..RHD200908-201402

sub52201-60090

main52201-60090iGRJ150,KDJ15#201403-201607

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-60060iGRJ150..RHD200908-201402

sub52202-60080

main52202-60080iGRJ150,KDJ15#201403-201607

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-60100iGRJ150..RHD200908-201607

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-35120iGRJ150..RHD200908-201607

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-60050iGRJ150..RHD200908-201607

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-60050iGRJ150..RHD200908-201607

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-60100iGRJ150..RHD200908-201607

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-35050iGRJ150..RHD200908-201607

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-60040iGRJ150..RHD200908-201607

52216DSTOPPER, CAB MOUNTING CUSHION

main52216-60040iGRJ150..RHD200908-201607

52216ESTOPPER, CAB MOUNTING CUSHION

main52216-60040iGRJ150..RHD200908-201607

52216FSTOPPER, CAB MOUNTING CUSHION

main52216-60060iGRJ150..RHD200908-201506

52217BOLT, BODY MOUNTING

main52217-35180iGRJ150..RHD200908-201607

52217ABOLT, BODY MOUNTING

main52217-35191iGRJ150..RHD200908-201607

52217BBOLT, BODY MOUNTING

main52217-35191iGRJ150..RHD200908-201607

52217CBOLT, BODY MOUNTING

main52217-35180iGRJ150..RHD200908-201607

9044018011

main90440-18011

9044031002

main90440-31002

91611G0820

main91611-G0820

9418801201

main94188-01201

20 parts on this diagram · 1 diagram in section
