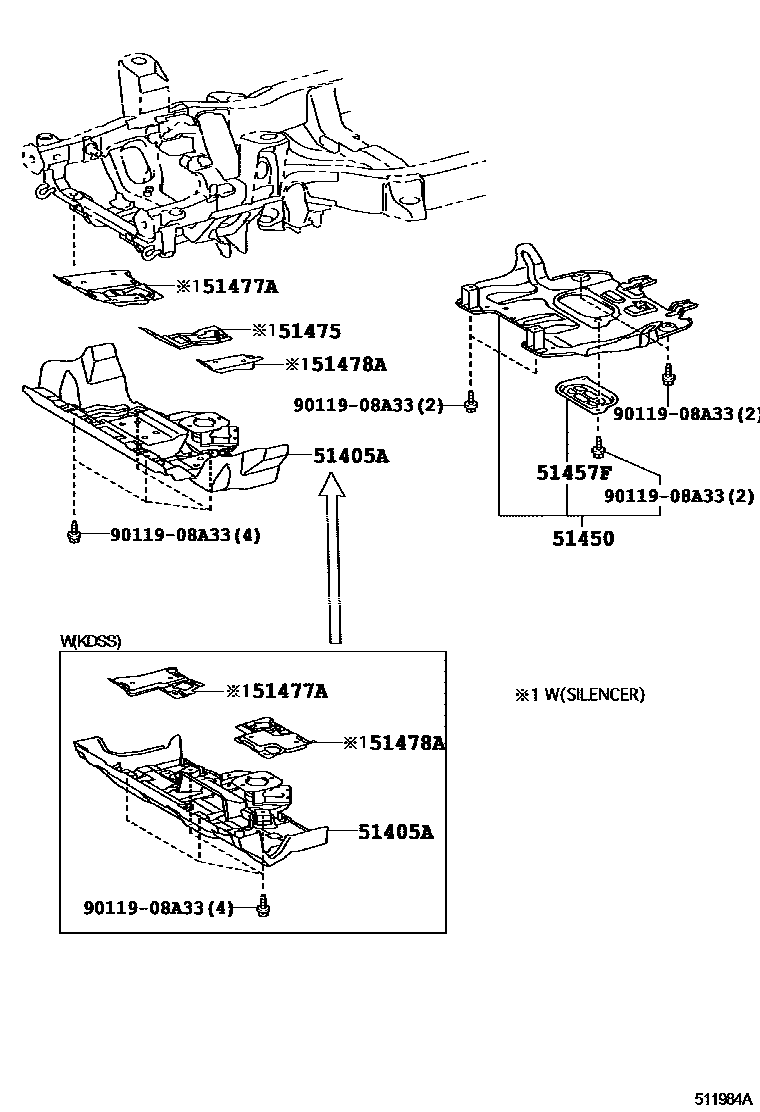

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60210iGRJ150..LHD200908-201506

main51405-60230iGDJ15#;KDJ150..LHD200908-201607

main51405-60240iGDJ150;KDJ150..LHD201506

STABILIZER-WITH(KDSS)

51450COVER ASSY, ENGINE UNDER, REAR

main51450-60050iGRJ150..LHD200908-201506

main51450-60060iGDJ15#,KDJ150200908-201607

sub51450-60061

51457FSEAL, ENGINE UNDER COVER

main51457-60030iKDJ15#;GRJ150..LHD200908-201607

51475SILENCER, ENGINE UNDER COVER, NO.5

main51475-60010iKDJ15#200908-201607

sub51475-60011

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-60060iKDJ15#200908-201607

sub51477-60061

main51477-60070iKDJ150..RHD201506

STABILIZER-WITH(KDSS)

sub51477-60071

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-60070iKDJ15#200908-201607

sub51478-60071

main51478-60080iKDJ150..RHD201506

STABILIZER-WITH(KDSS)

sub51478-60081

9011908A33

main90119-08A33

7 parts on this diagram · 1 diagram in section
