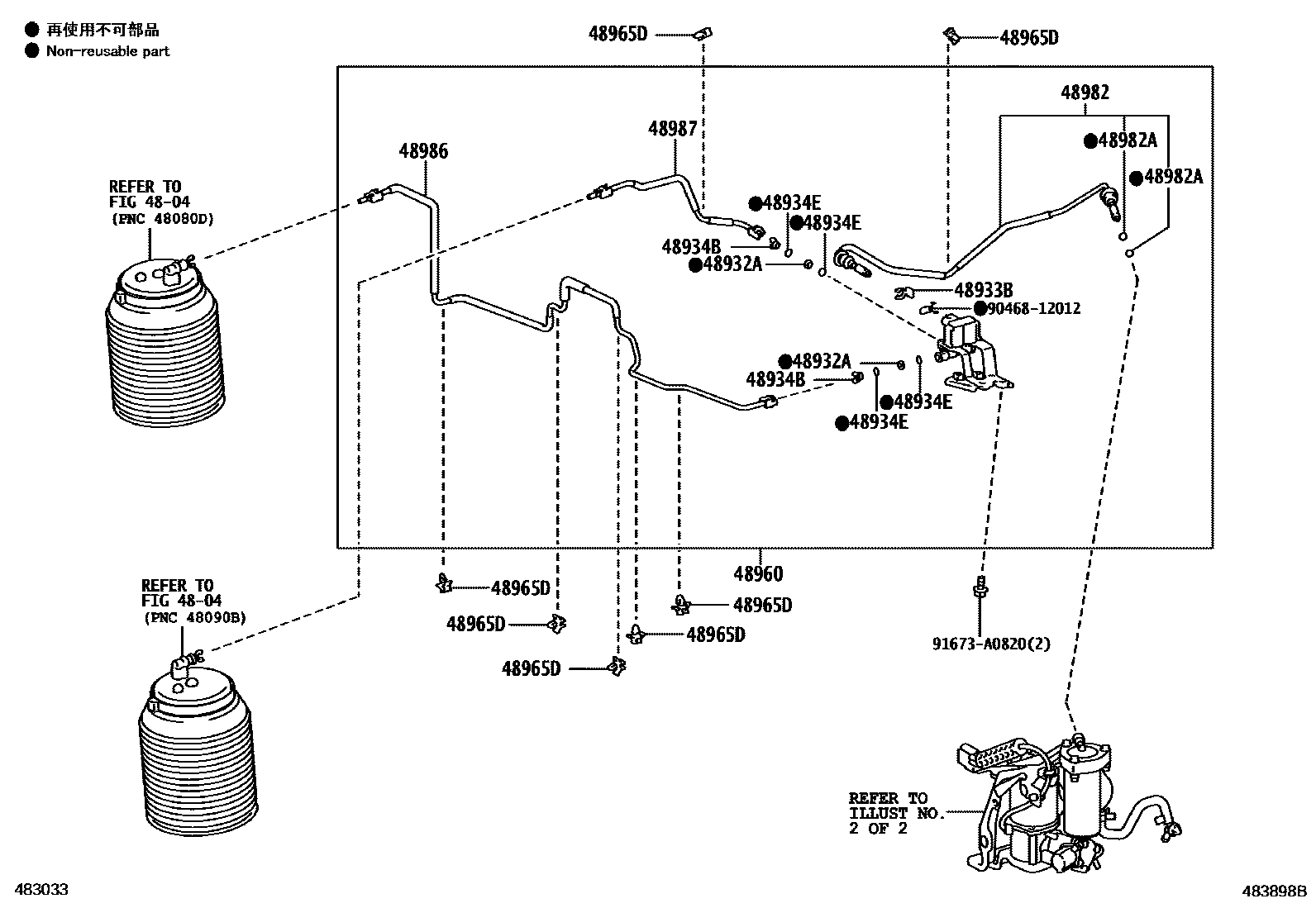

HEIGHT CONTROL (AUTO-LEVELER)
4804
48932APLATE, HEIGHT CONTROL TUBE
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48933HOLDER, AIR CONNECTOR CLIP
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48933BHOLDER, REAR HEIGHT CONTROL AIR CONNECTOR CLIP
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48934BCONNECTOR, HEIGHT CONTROL TUBE
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48934ERING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48960VALVE ASSY, HEIGHT CONTROL, NO.2
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48965DCLAMP, HEIGHT CONTROL TUBE, NO.2
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48982TUBE, HEIGHT CONTROL, NO.2
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48982ARING, O(FOR HEIGHT CONTROL TUBE NO.2)
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48986TUBE, HEIGHT CONTROL, NO.6
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48987TUBE, HEIGHT CONTROL, NO.7
AVS-WITH(W/REAR AIR SUSPENSION)
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
9046812012
main90468-12012
91673A0820
main91673-A0820
14 parts on this diagram · 2 diagrams in section
