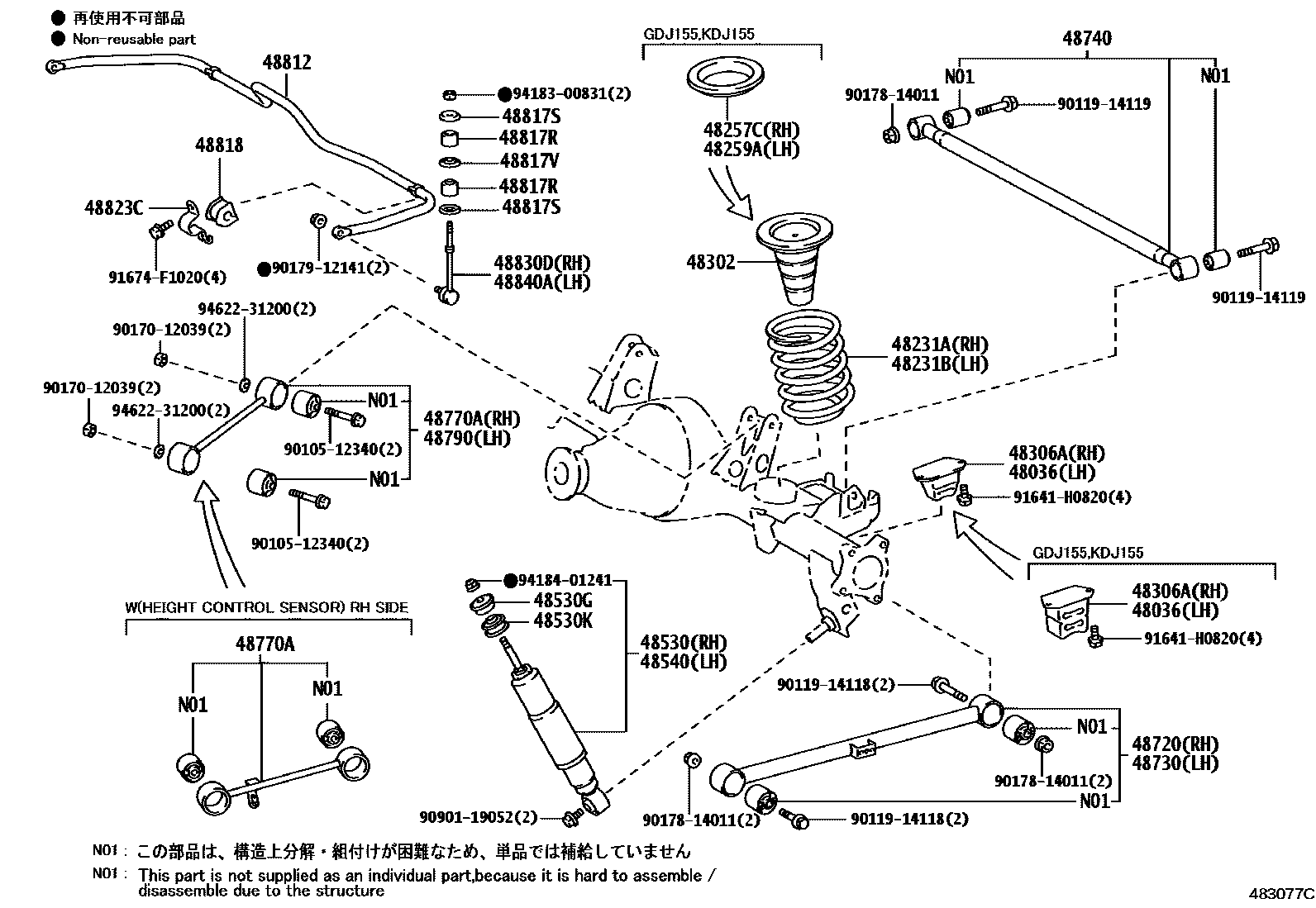

REAR SPRING & SHOCK ABSORBER
48036BUMPER SUB-ASSY, REAR SPRING, LH
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48231ASPRING, COIL, REAR RH
TX-L PACKAGE&STABILIZER-WITH(KDSS)&REAR SEAT-WITHOUT(WITH/ANCHOR)
VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)
STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)
STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
VX-L PACKAGE&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)
VX-L PACKAGE&STABILIZER-WITH(KDSS)&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
SWEDEN,FINLAND,NORWAY,DENMARK SPEC&VX PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR)
48231BSPRING, COIL, REAR LH
VX-L PACKAGE&STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)
VX-L PACKAGE&AVS-WITH(W/REAR AIR SUSPENSION)
STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)
STABILIZER-WITH(KDSS)&AVS-WITH(W/REAR AIR SUSPENSION)&REAR SEAT-SLIDEWALK-IN&5:5 DOUBLE FLAT POWER
TX-L PACKAGE&STABILIZER-WITH(KDSS)&REAR SEAT-WITHOUT(WITH/ANCHOR)
SWEDEN,FINLAND,NORWAY,DENMARK SPEC&VX PACKAGE&REAR SEAT-WITHOUT(WITH/ANCHOR)
VX-L PACKAGE&STABILIZER-WITH(KDSS)&AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48302SPRING SUB-ASSY, HOLLOW
48306ABUMPER SUB-ASSY, REAR SPRING, RH
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60191
MARK 48530-60210,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210
MARK 48530-60210,UKRAINE SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,REUNION,GUIANAN,GUADELOUPE,MARTINIQUE&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,ESTONIA,LATVIA,LITHUANIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,RUSSIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,AZORES,MACEDONIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,SERBIA,MONTENEGRO SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,CHINESE TAIPEI SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,TURKEY SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,ISRAEL SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,MOROCCO SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60361
MARK 48530-60362
MARK 48530-60192
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
VX-L PACKAGE
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
VX-L PACKAGE
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60191
MARK 48530-60210,VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,UKRAINE SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,REUNION,GUIANAN,GUADELOUPE,MARTINIQUE&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,ESTONIA,LATVIA,LITHUANIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,RUSSIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,AZORES,MACEDONIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210
MARK 48530-60210,MOROCCO SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,ISRAEL SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,TURKEY SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,CHINESE TAIPEI SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60210,SERBIA,MONTENEGRO SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48530-60361
MARK 48530-60362
MARK 48530-60192
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
HEADLAMP-LED
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LED
48790ARM ASSY, UPPER CONTROL, REAR LH
AVS(TEMS)-WITH(W/REAR AIR SUSPENSION)&HEADLAMP-LED
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48818BUSH, STABILIZER, REAR
SERBIA,MONTENEGRO SPEC&STABILIZER-WITH(KDSS)
CHINESE TAIPEI SPEC&STABILIZER-WITH(KDSS)
TURKEY SPEC&STABILIZER-WITH(KDSS)
ISRAEL SPEC&STABILIZER-WITH(KDSS)
MOROCCO SPEC&STABILIZER-WITH(KDSS)
STABILIZER-WITH(KDSS)
REUNION,GUIANAN,GUADELOUPE,MARTINIQUE&STABILIZER-WITH(KDSS)
AZORES,MACEDONIA SPEC&STABILIZER-WITH(KDSS)
48823CCOVER, REAR STABILIZER BRACKET
48830LINK ASSY, REAR STABILIZER
CHINESE TAIPEI SPEC&STABILIZER-WITH(KDSS)
UKRAINE SPEC&STABILIZER-WITH(KDSS)
REUNION,GUIANAN,GUADELOUPE,MARTINIQUE&STABILIZER-WITH(KDSS)
ESTONIA,LATVIA,LITHUANIA SPEC&STABILIZER-WITH(KDSS)
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&STABILIZER-WITH(KDSS)
RUSSIA SPEC&STABILIZER-WITH(KDSS)
AZORES,MACEDONIA SPEC&STABILIZER-WITH(KDSS)
SERBIA,MONTENEGRO SPEC&STABILIZER-WITH(KDSS)
TURKEY SPEC&STABILIZER-WITH(KDSS)
ISRAEL SPEC&STABILIZER-WITH(KDSS)
MOROCCO SPEC&STABILIZER-WITH(KDSS)
STABILIZER-WITH(KDSS)
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9010512340
main90105-12340
9011914118
main90119-14118
9011914119
main90119-14119
9017012039
main90170-12039
9017814011
main90178-14011
9017912141
main90179-12141
9090119052
main90901-19052
91641H0820
main91641-H0820
91674F1020
main91674-F1020
9418300831
main94183-00831
9418401241
main94184-01241
9462231200
main94622-31200
37 parts on this diagram · 5 diagrams in section
