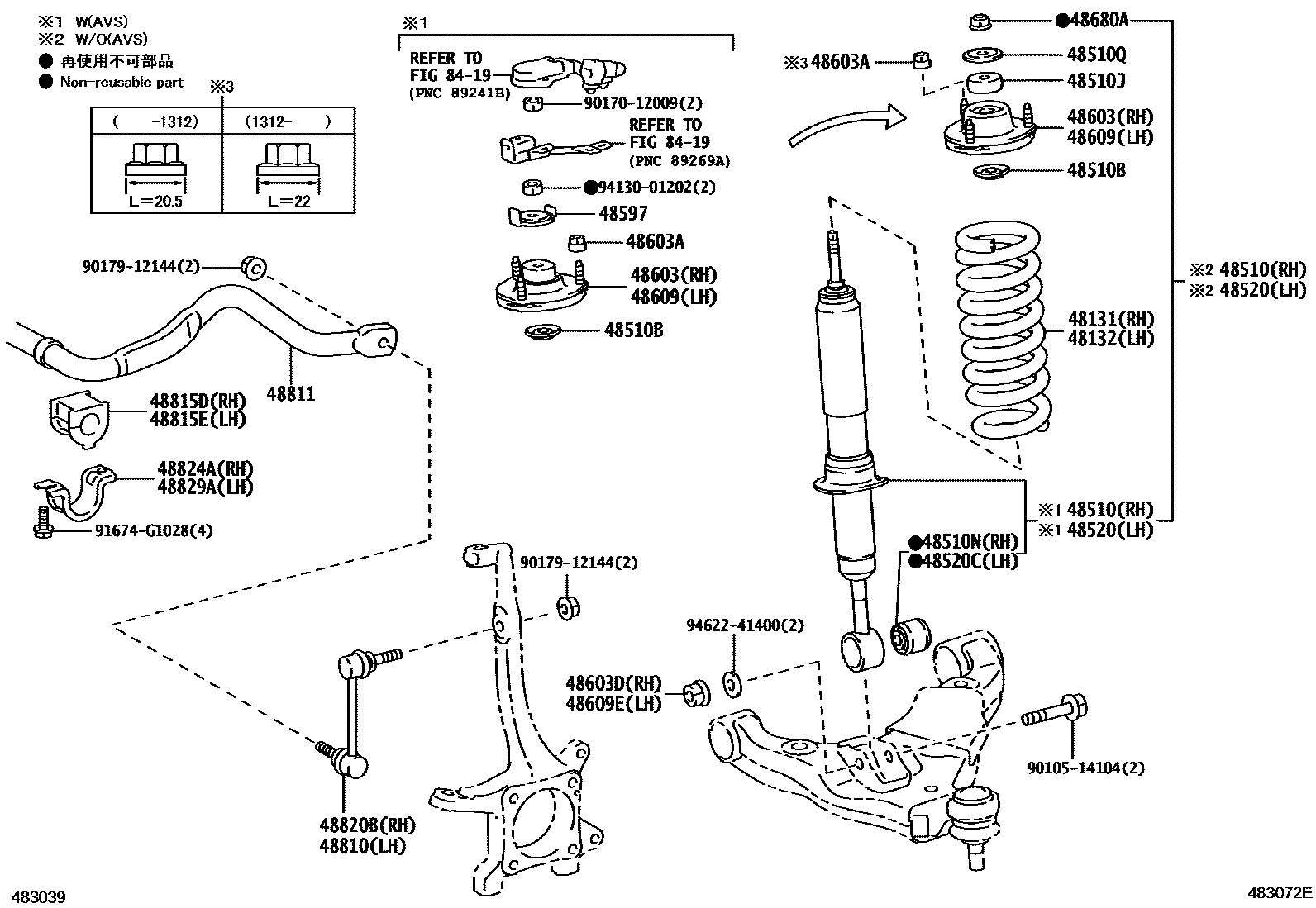

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
SERBIA,MONTENEGRO SPEC
REUNION,GUIANAN,GUADELOUPE,MARTINIQUE
AZORES,MACEDONIA SPEC
TURKEY SPEC
ISRAEL SPEC
UKURAINE SPEC
STABILIZER-WITH(KDSS)
48132SPRING, FRONT COIL, LH
AUSTRALIA OR NEW ZEALAND SPEC
VX PACKAGE
STABILIZER-WITH(KDSS)
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-60260,REUNION,GUIANAN,GUADELOUPE,MARTINIQUE&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,TURKEY SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,ISRAEL SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,MOROCCO SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260
MARK 48510-60260,UKRAINE SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,ESTONIA,LATVIA,LITHUANIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,RUSSIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,AZORES,MACEDONIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,SERBIA,MONTENEGRO SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,CHINESE TAIPEI SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60270
MARK 48510-60300
MARK 48510-60200
MARK 48510-60271
MARK 48510-60201
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-60260,RUSSIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260
MARK 48510-60260,UKRAINE SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,REUNION,GUIANAN,GUADELOUPE,MARTINIQUE&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,ESTONIA,LATVIA,LITHUANIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,AZORES,MACEDONIA SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,SERBIA,MONTENEGRO SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,CHINESE TAIPEI SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,TURKEY SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,ISRAEL SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,MOROCCO SPEC&VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60260,VX-L PACKAGE&STABILIZER-WITH(KDSS)
MARK 48510-60270
MARK 48510-60300
MARK 48510-60200
MARK 48510-60271
MARK 48510-60201
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48597RETAINER, SHOCK ABSORBER CUSHION
VX-L PACKAGE
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
VX-L PACKAGE
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
VX-L PACKAGE
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
STABILIZER-WITH(KDSS)
UKRAINE SPEC&STABILIZER-WITH(KDSS)
ESTONIA,LATVIA,LITHUANIA SPEC&STABILIZER-WITH(KDSS)
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&STABILIZER-WITH(KDSS)
RUSSIA SPEC&STABILIZER-WITH(KDSS)
SERBIA,MONTENEGRO SPEC&STABILIZER-WITH(KDSS)
48815DBUSH, FRONT STABILIZER BAR, RH
sub48815-60380
SERBIA,MONTENEGRO SPEC&STABILIZER-WITH(KDSS)
STABILIZER-WITH(KDSS)
48815EBUSH, FRONT STABILIZER BAR, LH
sub48815-60380
SERBIA,MONTENEGRO SPEC&STABILIZER-WITH(KDSS)
STABILIZER-WITH(KDSS)
48820LINK ASSY, FRONT STABILIZER
UKRAINE SPEC&STABILIZER-WITH(KDSS)
ESTONIA,LATVIA,LITHUANIA SPEC&STABILIZER-WITH(KDSS)
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&STABILIZER-WITH(KDSS)
RUSSIA SPEC&STABILIZER-WITH(KDSS)
SERBIA,MONTENEGRO SPEC&STABILIZER-WITH(KDSS)
STABILIZER-WITH(KDSS)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
8419
9010514104
main90105-14104
9017012009
main90170-12009
9017912144
main90179-12144
91674G1028
main91674-G1028
9413001202
main94130-01202
9462241400
main94622-41400
31 parts on this diagram · 5 diagrams in section
