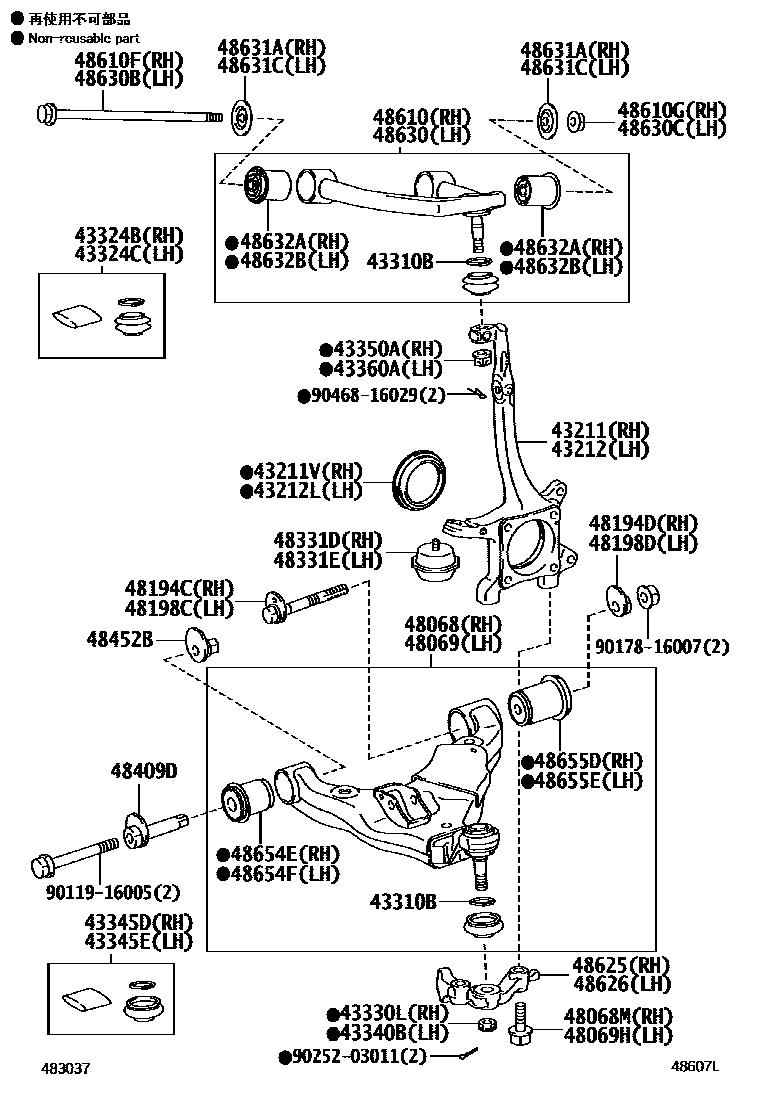

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211VSEAL, OIL (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212LSEAL, OIL (FOR STEERING KNUCKLE LH)
43310BRING, SET (FOR DUST COVER)
43324BCOVER, FRONT UPPER BALL JOINT DUST, RH
43324CCOVER, FRONT UPPER BALL JOINT DUST, LH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43345DCOVER, LOWER BALL JOINT DUST, RH
43345ECOVER, LOWER BALL JOINT DUST, LH
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
STABILIZER-WITH(KDSS)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
STABILIZER-WITH(KDSS)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
48331DBUMPER, FRONT SPRING, NO.1 RH
48331EBUMPER, FRONT SPRING, NO.1 LH
48409DCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
48452BPLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)
48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)
48625ATTACHMENT, FRONT LOWER BALL JOINT, RH
48626ATTACHMENT, FRONT LOWER BALL JOINT, LH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)
48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)
48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
9011916005
main90119-16005
9017816007
main90178-16007
9025203011
main90252-03011
9046816029
main90468-16029
45 parts on this diagram · 2 diagrams in section
