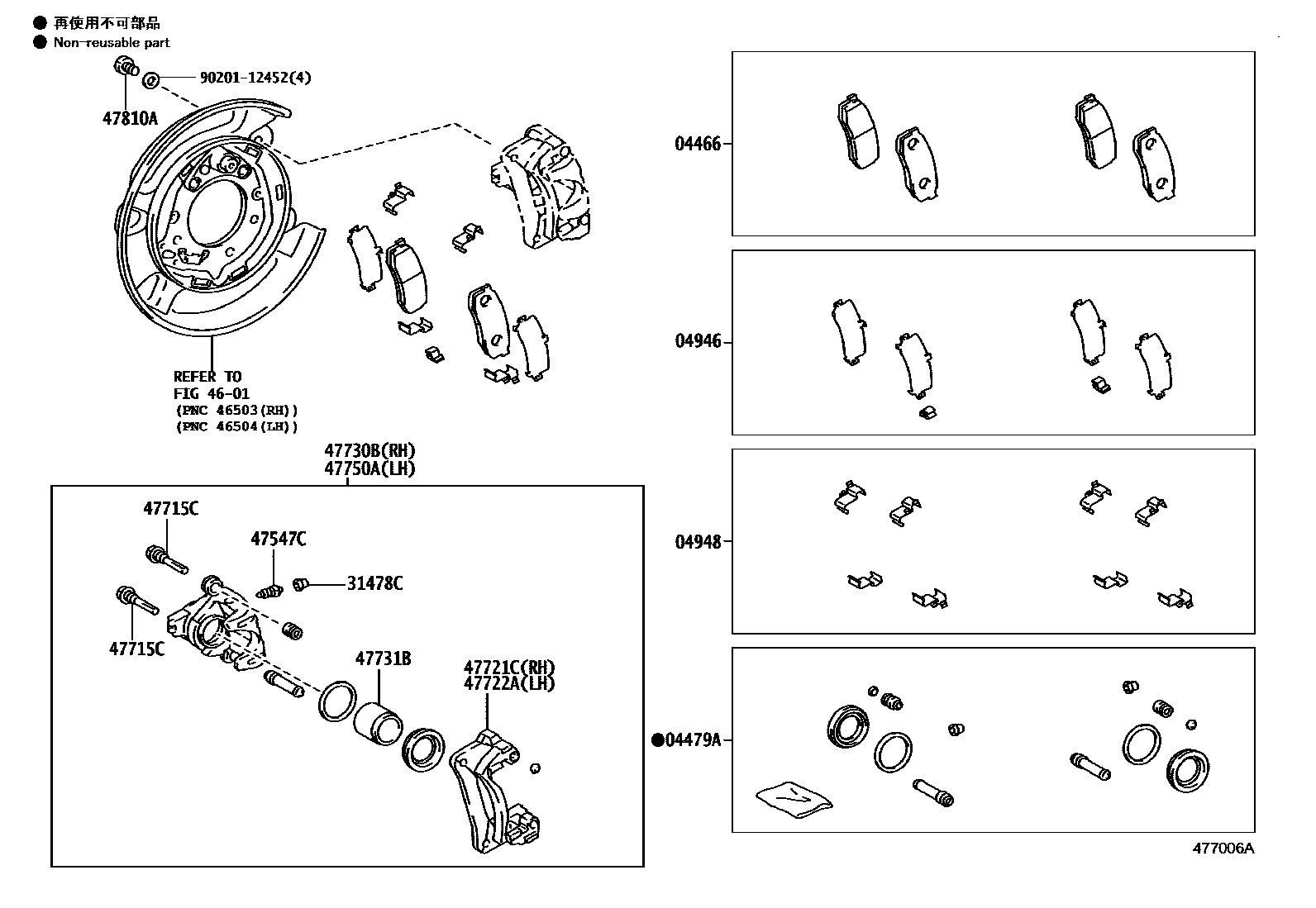

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-60080iKDJ15#..LHD200908-201506

MARK NBK PN524-EE,GERMANY SPEC

main04466-60140iGDJ15#,GRJ150,KDJ15#200908-201506

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60030iGRJ150..RHD200908-201506

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30100iGDJ15#..LHD200908-201506

GERMANY SPEC

main04946-60140iGRJ150,KDJ15#200908-201411

sub04946-60141

main04946-60141iGDJ15#,GRJ150,KDJ15#201411-201506

04948FITTING KIT, DISC BRAKE, REAR

main04947-22050iKDJ15#;GRJ150..LHD200908-201506

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGRJ150..RHD200908-201506

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010iGDJ15#,GRJ150,KDJ150201701

main47547-12030iGDJ15#..LHD201701

GERMANY SPEC

main47547-12030iGRJ150..RHD200908-201701

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-22010iKDJ15#..LHD200908-201506

GERMANY SPEC

main47715-43010iGRJ150..RHD200908-201506

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-60020iGRJ150..RHD200908-201506

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-60020iGRJ150..RHD200908-201506

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-34030iGRJ150..RHD200908-201506

47731BPISTON, REAR DISC BRAKE

main47731-60020iGRJ150..RHD200908-201506

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-34030iGRJ150..RHD200908-201506

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-12167iGRJ150..RHD200908-201708

9020112452

main90201-12452

15 parts on this diagram · 1 diagram in section
