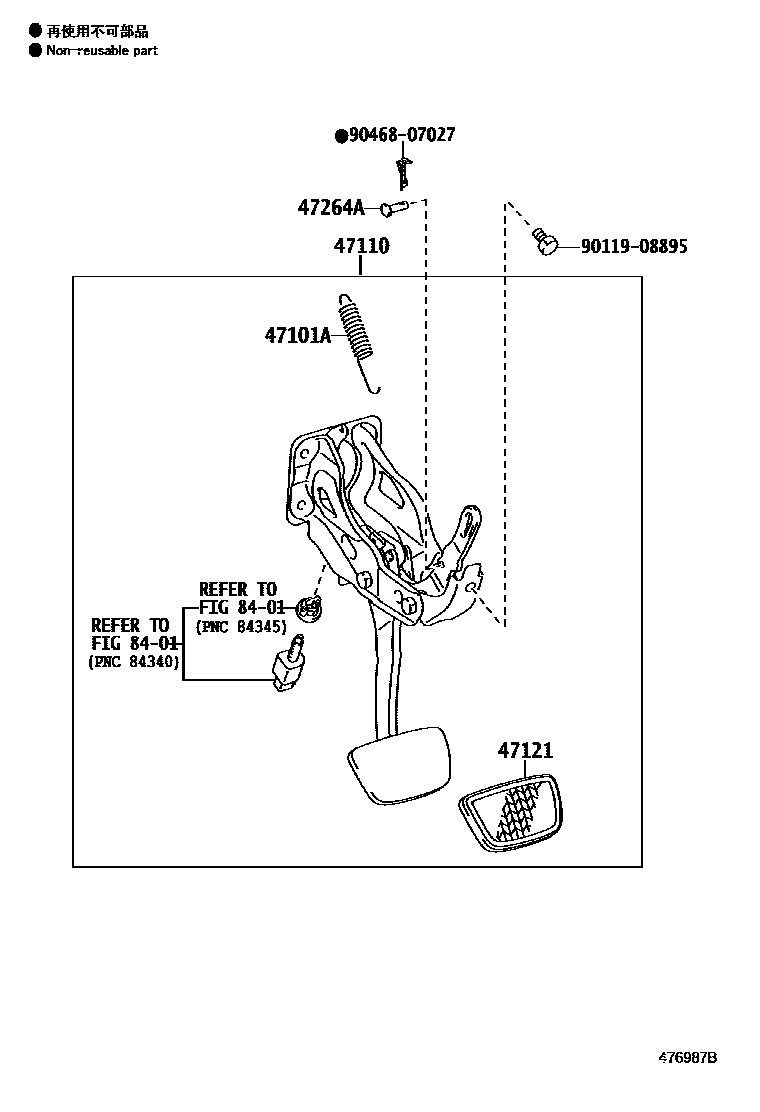

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20034iKDJ15#;GRJ150..LHD200908-201607

47110SUPPORT ASSY, BRAKE PEDAL

main47110-60330iGRJ150,KDJ15#..RHD..5FC200908-201001

sub47110-60331

main47110-60331iKDJ15#..RHD..5FC201002-201308

main47110-60332iGDJ15#,KDJ150..RHD..ATM201308-201506

main47110-60340iKDJ15#..RHD..6F200908-201001

sub47110-60341

main47110-60341iKDJ15#..RHD..6F201002-201308

main47110-60342iGDJ15#..RHD..6F201308-201506

main47110-60350iGRJ150,KDJ15#..LHD..5FC200908-201001

sub47110-60351

main47110-60351iGRJ150,KDJ15#..LHD..5FC201002-201308

main47110-60352iGRJ150,KDJ15#..LHD..5FC201308-201607

main47110-60360iKDJ15#..LHD..6F200908-201001

sub47110-60361

main47110-60361iKDJ15#..LHD..6F201002-201308

main47110-60362iKDJ155..6F201308-201607

47121PAD, BRAKE PEDAL

main31321-52010iGDJ15#,KDJ15#..6F200908-201512

main31321-52020iKDJ155..6F201512-201607

main47121-50020iGRJ150..RHD200908-201607

47264APIN(FOR PUSH ROD)

main90240-06027iGRJ150..RHD200908-201607

8401

9011908895

main90119-08895

9046807027

main90468-07027

7 parts on this diagram · 1 diagram in section
